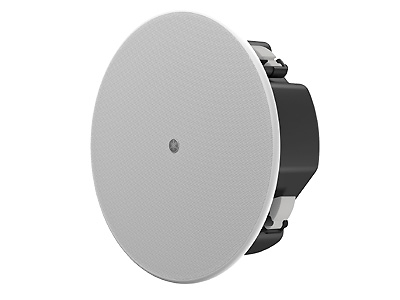

Yamaha VC6W Ceiling Speaker

General Specifications:

• Speaker type: 2way Coaxial type, Acoustic Suspension
• Frequency range (-10dB): 1104 Hz – 20 kHz (Half-space: 2π)
• Nominal coverage: 120° conical (Half-space: 2π)
• Components – LF: 6.5” Cone
• HF: 0.8″ Soft dome

Power rating:

• NOISE: 25 W
• PGM: 50 W
• PEAK: 100 W
• Nominal impedance: 16 Ω
• Transformer taps 100V: 12 W, 6 W, 3 W
• Transformer taps 12 W, 6 W, 3 W, 1.5 W
• SPL- Sensitivity (1W; 1m on axis): 89 dB SPL (Half-space:2π)
• Peak (Calculated): 109 dB SPL (Calculated, 1 m)
• I/O connectors: Euroblock (4 pin) ×1 (input: +/ – , loop – thru: +/ – ), Wire size : Min. AWG24 (0.2 sq), Max. AWG12 (3.5 sq)
• Protection circuit Load protection: Full-range power limiting to protect network and transducers
• Finish: VC6B: Black (approx. Munsell N3), VC6W: White (approx. Munsell N9.3)

Dimensions:

• Diameter: 286 mm (11 – 2/8″)
• D: 106 mm (4 – 1/8″)
• Net weight: 3.3 kg (7.3 lbs)
• Cutout size: Ø247 mm (Ø9 – 3/4″)
• Required ceiling board thickness: 2 mm – 37 mm
• Accessories: C-Ring, Tile Rails x 2, Grille, Safety wire, Cutout template, Owner’s Manual
• Packaging: Single package
• Certificate: UL1480A, UL2043, NFPA70, CE, RoHS
