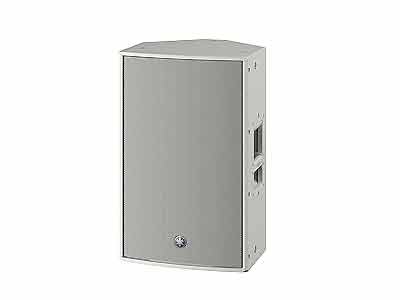

Yamaha DZR12-D Active Loudspeaker Dante (Indent Basis)
Yamaha DZR12-D is a Dante-equipped 2-way bi-amped powered loudspeaker that offers superb clarity at an impressive maximum SPL of 139dB. With best-in-class SPL performance, sophisticated DSP processing, and unrivaled low-frequency sound reproduction, Yamaha DZR12-D realizes a truly professional sound delivered with a level of power that belies its compact, lightweight design.
Features:
- 2-way powered loudspeaker with a 2? HF and a 12″ LF
- Maximum 139dB SPL and 39Hz-20kHz frequency range is ideal for today’s professional audio demands
- High power 2000W Class-D amplifier module
- 96kHz DSP and FIR filter for true high-resolution sound with super-low latency
- Features Advanced FIR-X tuning, the combination of FIR filtering and correct EQ for minimizing phase distortion
- Equipped with Dante I/O (2in/2 out) and features SRC (sample rate conversion) allowing 48kHz device compatibility
- Access a variety of DSP functions and load presets, or make precise adjustments to PEQ, delay and routing etc. via the intuitive LCD display
- D-Contour and highly reliable protection circuits
- The floor monitoring setting enables mirroring configuration
- Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
- Optional speaker cover (SPCVR-DZR12)
- Rotatable horn and a variety of U-bracket options (UB-DZR) for rigging allow for a very flexible setup and speaker placement
- Durable Black or white finish
To view more Yamaha Products
Related Products:
- Yamaha DBR10 2-way Powered Loudspeaker
- Yamaha DBR12 2-way Powered Loudspeaker
- Yamaha DBR15 2-way Powered Loudspeaker
- Yamaha DHR10 2-way Powered Loudspeaker
- Yamaha DHR12M 2-way Loudspeaker
- Yamaha DHR15 2-way Powered Loudspeaker
- Yamaha DXR8MKII 2-way Powered Loudspeaker
- Yamaha DXR10MKII 2-way Powered Loudspeaker
- Yamaha DXR12MKII 2-way Powered Loudspeaker
- Yamaha DXR15mkII 2-way Powered Loudspeaker
- Yamaha DZR10 10? Powered Loudspeaker
- Yamaha DZR12 12? Powered Loudspeaker
- Yamaha DZR15 15? Powered Loudspeaker
- Yamaha DZR315 Powered Loudspeaker
- Yamaha DZR10-D 10? Powered Loudspeaker
- Yamaha DZR15-D 15? Powered Loudspeaker
- Yamaha DXL1K Powered Loudspeaker
Specifications
Click to rate this post!
[Total: 1 Average: 5]
| Speaker type | 2-way, Bi-amped Powered Speaker, Bass-reflex | |
|---|---|---|
| Frequency range (-10dB) | 39Hz – 20kHz | |
| Coverage area | H90ﾟ x V60ﾟ (Rotatable) | |
| Components | LF | 12″ Cone, 3″ Voice Coil, Neodymium magnet |
| MF | – | |
| HF | 2″ Voice Coil, 1″ Throat Compression Driver, Titanium diaphragm, Neodymium magnet | |
| Crossover | 1.8kHz (FIR-X) | |
| Sampling frequency rate | Internal | 96kHz and FIR Filter |
| A/D D/A Converters | 96kHz AD/DA | |
| Maximum output level (1m; on-axis) | 139dB SPL | |
| SRC | Yes | |
| Power rating | Dynamic | 2000W (LF: 1000W, MF/HF: 1000W) |
| Burst (20ms) | 1100W (LF: 1000W, MF/HF: 100W) | |
| Continuous | 950W (LF: 850W, MF/HF: 100W) | |
| I/O Connectors | Analog I/O | Analog IN: Combo x2, Line level (Maximum +24dBu), Input impedance 20kΩ, Analog OUT: XLR3-32 x2, CH1: THRU (fix), CH2: THRU or DSP OUT |
| Digital I/O | Dante: etherCON CAT5e x2 (Daisy Chain), 2 IN / 2 OUT (Fs: 44.1k, 48k, 88.2k, 96k) and Remote Control, 1000BASE-T | |
| Others | USB2.0 Host 5V 500mA for USB memory DATA storage/load | |
| AC | IEC AC inlet x1 (V-Lock) | |
| Amplifier class | Class-D | |
| Cooling | Fan cooling, Variable speeds | |
| Power consumption | 45W (Idle), 150W (1/8) | |
| Handle | Aluminium die-cast, Side x2 | |
| Rigging | M10 x12 | |
| Dimensions | W | 410 mm (16.1″) |
| H | 646 mm (25.4″) (with rubber feet) | |
| D | 394 mm (15.5″) | |
| Net weight | 21.4kg (47.2lbs) | |
| Options | U-bracket: UB-DZR12H/V, Cover: SPCVR-DZR12 | |
| Others | Enclosure Material, Finish, Color: Plywood, Durable Polyurea Painting, Black/White | |
| Floor Monitor Angle | 50° Symmetrical | |
| Pole socket | Φ35 mm x2 (0° or -7°) | |
1: Measured peak SPL with pink noise @1m.
2: Total peak power of individual outputs (AC 120V, 25℃). This value was measured at minimum load impedance, with protection released.
