Vaxis Atom 600 KV Kit for RED Komodo
Vaxis ATOM 600 KV offers a 600-foot (182.8 m) line-of-sight transmission range with a claimed latency of less than 80 ms. It also features an OLED display, power pass-through, and an SDI/HDMI loop-out.
Vaxis ATOM 600 KV is a versatile modular video transmitter integrating wireless transmission and an adjustable battery mounting plate.
It supports up to 1080p 60fps/1080i 60 transmissions.
v
Way more than Wireless Transmission
A versatile modular video transmitter integrating wireless transmission and adjustable battery mounting plate.

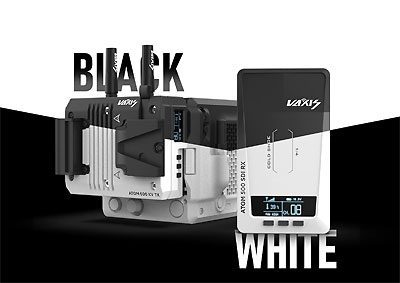

This kit includes the Atom 600 KV TX and an ATOM 500 SDI RX.
Main Features:
- The transmitter unit transmits up to 1080p60 wireless video up to 600′ lines of sight
- Transmits with less than 80 ms latency
- The transmitter features one SDI input and SDI and HDMI loop outputs; the receiver features one SDI and one HDMI output
- TX powers using a single, separately available V-mount battery that passes power through to the dual battery plate; RX powers using a USB Type-C power source or using its L-series battery plate
- Multicast support for transmitting video via Wi-Fi to up to three iOS devices running the Vaxis Vision app
- An adjustable cooling fan that can be turned on and off
- Customized battery plate for Red Komodo, power pass-thru
- Adjustable horizontal/vertical plate installation
- 600ft transmission range, for long-term REC and streaming stability
- Less than 80ms latency
- SDI / HDMI loop out
- Built-in HDMI & SDI signal converter
- Real-time APP monitoring
- Supports 13 channels, auto channel scan, and selection
- Smart fan for temperature control
- OLED screen for easy information access
- Scan the QR code to monitor
- OTA / APP firmware upgrade
- Passcode protection
- Audio-video 100% in sync
- Switch by your needs: image prior / latency prior
- Supports up to 1080p 60fps/1080i 60
- USB-C port for firmware upgrade and 5V/2A power output
To view more Vaxis Products
View more HDMI/SDI Products
Related Product:
Other Site:
Specifications
Click to rate this post!
[Total: 1 Average: 5]
| ATOM 600 KV TX | |
| Interface | SDI Input; SDI / HDMI Loop output |
| Voltage | 6-18V |
| Power Consumption | < 6.5w |
| HDMI Output Video Format | 1080p@24/25/30/50/60Hz 1080i@50/60Hz 1280*1024@60Hz 720p@50/60Hz |
| SDI Input Video Format | 1080psf23.98/24/25/29.97/30Hz [email protected]/24/25/29.97/30/50/59.94/60Hz 1080i@50/59.94/60Hz 720p@50/60Hz |
| SDI Output Video Format | 1080psf23.98/24/25/29.97/30Hz [email protected]/24/25/29.97/30/50/59.94/60Hz 1080i@50/59.94/60Hz 720p@50/60hz |
| Weight | 400g |
| Dimensions | 96.5 x 74 x 50.4 mm |
| Frequency | 5GHz |
| Transmission Power | 17dBm |
| Delay | 80ms |
In The Box
Click to rate this post!
[Total: 1 Average: 5]
- 1*Atom 600 KV TX
- 1*Atom 500 SDI RX
- 1* 39” SDI Cable
- 1* 12” SDI Cable
- 2* Radar Antenna
