Teradek Bolt 4K 1500 12G-SDI/HDMI Wireless TX
USD 5,138.00 – USD 5,435.00 excl. Tax excl. Tax
G7 Magic Arms for DSLR Camera Rig
USD 17.20 excl. Tax
Teradek Bolt 4K 1500 12G-SDI/HDMI Wireless RX
USD 5,138.00 – USD 5,435.00 excl. Tax excl. Tax
| Weight | N/A |
|---|---|
| Bolt 1500 12G-SDI/HDMI Wireless RX |
Bolt 4K 1500 RX ,Bolt 4K 1500 RX (Gold-mount) ,Bolt 4K 1500 RX (V-mount) |
This model has been discontinued
Description
Click to rate this post!
[Total: 1 Average: 5]

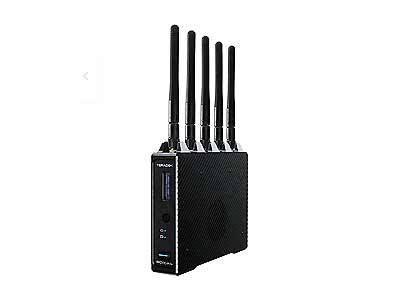

Teradek Bolt 4K 1500 RX
Teradek Bolt 4K 1500 RX is a real time wireless video receiver that supports 1080p and 2160p video signals at 60FPS with less than 1ms of delay up to 1500 feet. Key features include increased range, faster reconnection times, easier setup with Bluetooth App for iOS or Android, and more stable connectivity. Includes integrated 1/4″x20 and M3 mounting points. Optional Battery Plates are sold separately. These devices are cross-compatible with the entire Bolt 4K Family. Featuring a V-Mount Battery plate for mounting directly to the back of your camera or monitor and integrated 1/4″x20 and M3 mounting points.
Bolt 4K is a revolution in wireless video featuring the best reliability and image quality in the industry.
Real-Time 4K Wireless Video
Receive uncompressed video in 1080p and 2160p at 60FPS with less than 1ms of delay. Up to 1500 feet of range.
True HDR Color
Bolt 4K is compliant with the HLG, PQ, and HDR-10 standards, making it an invaluable tool on set for HDR workflows.
Rock-Solid Reliability
Bolt 4K features 8x the wireless performance of previous Bolt generations, ensuring video is delivered in even the toughest of RF environments.
Universal Compatibility
Each transmitter can send video to up to 6 receivers. Compatible with any model in the Bolt 4K line.
Inputs/Outputs
1x 12G-SDI, 1x HDMI 2.0,
1x 12G-SDI loopout
Battery Plates
Optional Gold Mount or V-Mount battery plate with pass-through power available.
Camera Metadata
Send start / stop flags, timecode, and other ancillary data over the wireless link. On the receiver side, upload and apply custom 3D LUTs to monitor each take with the look you’re after.
Bolt App for iOS
Remotely pair units, configure settings, and utilize all of Bolt 4K’s features from any iOS smartphone or tablet. The Bolt App uses Bolt 4K’s integrated Bluetooth to give you all of its settings in the palm of your hand.
Specifications
Click to rate this post!
[Total: 1 Average: 5]
| Specifications | |
|
Video |
|
| Video Outputs | 2 x 12G-SDI SMPTE 2082-1 standard / 75 Ω (accepts 12G-SDI, 6G-SDI, or 3G-SDI) 1 x HDMI Type-A receptacle accepts HDMI 2.0 or HDMI 1.4) |
| Sdi Ancillary Data Support | Supports transmitting metadata, timecode, and start/stop flags from most camera manufacturers. |
| Color Sampling | SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB 4:4:4, 8-bit |
| Input Cross Conversion | Yes, HDMI to SDI |
| Delay Tx To Rx | <0.001sec |
|
Supported Resolutions |
|
| Supported Resolutions | 4Kp23.98/24/25/29.97/30/50/59.94/60 1080p23.98/24/25/29.97/30/50/59.94/60 1080psf23.98/24/25/29.97/30 1080i50/59.94/60 720p50/59.94/60 480p50 576p59.94/60 480i(NTSC)/576i(PAL) |
|
Video Processing |
|
| Video Compression | Visually Lossless |
| Video Format Conversion Support | Connect an HD source to the Tx and get a 4K signal out of Rx Connect a 4K source to the Tx, get HD resolution out of Rx You can also mix & match from a single source: 4K signal into Tx can be 4K output from 1x Rx and HD output from a 2nd Rx Input/output configurations are controlled directly on units or via Bolt 4K app |
| Color Correction | 17x17x17 3D LUT (supports 10-bit color) |
|
Audio Processing |
|
| Audio Format | 48kHz 24-bit PCM |
|
Outputs |
|
| Audio Output | Embedded SDI/HDMI Audio Output (2 Channel) |
|
Physical |
|
| Dimensions | 112 x 139 x 27 mm |
| Weight | Bolt 4K Tx without antennas (no battery plates) = 360g Bolt 4K Tx with 4x antennas (no battery plates) = 408g Bolt 4K Rx without antennas (no battery plates) = 440g Bolt 4K Rx with 5x antennas (no battery plates) = 496g Gold-Mount battery plate set (male+female) = +172g V-Mount battery plate set (male+female) = +220 g |
| Construction | Milled Aluminum(Chassis) and regulation-compliant PCB |
| Mountability | integrated V-Mount Male and Female (with passthrough power) Multiple mounting options with M3 and 3/8″ holes |
|
Interfaces |
|
| Configuration Interfaces | OSD with Menu, Joystick Navigation |
| Switches | On/Off Switch |
| Usb Interface Functionality | Upgrade via Micro-USB |
|
Network |
|
| Antennas | 5 External 2 dBi antennas (included) or optional Array Panel Antenna |
| Wireless | Non-DFS Frequencies: 5.190 ~ 5.230 GHz and 5.755 ~ 5.795 GHz DFS Frequencies: 5.270 ~ 5.670 GHz |
| Channel Bandwidth | 13x 40MHz wide channels |
| Rf Channel Selection | Auto, Manual Manual available for non-DFS Channels |
| Encryption | AES-256, RSA-1024 key exchange |
| Rf Power | 17 dbm EIRP (one external 2dBi antenna) (<51mW transmit power) |
| Range | Up to 1500 ft, line of sight |
| Unicast Multicast | Can connect one Transmitter to up to 6 Receivers |
| Noise Rejection | Can coexist with WiFi and 5GHz cordless phones Can operate up to 6 sets in same location |
|
Power |
|
| Power Input | 2-Pin Circular locking Connector 6-28 VDC |
| Battery | None, optional Gold or V mount battery plate |
| Nominal Power Consumption | 18 Watts |
|
Enviornmental |
|
| Operating Temperature | 0-40℃ |
