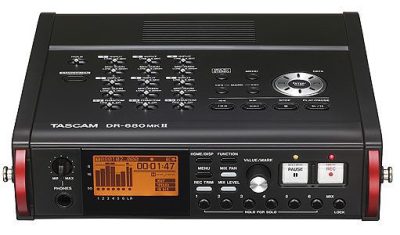

Tascam DR-680MKII Linear PCM Field Recorder
The Tascam DR-680MKII brings multi-track portable recording within reach of any musician for polished live, location and surround recordings. Up to eight tracks can be recorded to solid-state SD card media at 96 kHz / 24-bit Broadcast WAV quality. Six mic inputs provide 60 dB of gain and phantom power for clear recordings with condenser microphones. Record the six analogue input signals along with a digital SPDIF source for 8-track recording.
Inputs can be monitored using a built-in mixer with level and pan controls for each input. The stereo mixdown can even be recorded along with the six analogue input signals for quick stereo playback of the event. There’s also a built-in speaker to check recordings without headphones.
The Tascam DR-680MKII is also able to capture stereo audio at 192 kHz / 24-bit for audiophile-quality masters or record up to four channels simultaneuously in space-saving MP3 format ideal for minutes recording. And for up to 16-track recording on battery power two units can be connected with a cascade cable. An AC adapter, a USB cable and a shoulder strap are included as standard.
Specifications
Click to rate this post!
[Total: 0 Average: 0]
| Recording media and formats | ||
|---|---|---|
| Recording media | SD card (64 MB ? 2 GB) SDHC card (4?32 GB) SDXC card (48?128 GB) |
|
| Supported recording and playback formats | BWF: 16/24-bit, 44.1/48/96/192 kHz WAV: 16/24-bit, 44.1/48/96/192 kHz MP3: 96/128/192/320 kbps, 44.1/48 kHz |
|
| Number of tracks | ||
| ??6 tracks and a stereo mix track | BWF: 44.1/48/96 kHz WAV: 44.1/48/96 kHz MP3: 44.1/48 kHz |
|
| ??2 tracks | BWF: 192 kHz WAV: 192 kHz |
|
| File recording modes | BWF: monaural, stereo, 6-channel WAV: monaural, stereo, 6-channel MP3: monaural, stereo |
| Analogue audio inputs and outputs | ||
|---|---|---|
| MIC/LINE inputs | XLR-3-31/ 6.3-mm TRS combo connectors | |
| INPUT switch set to MIC: | ||
| ??Input impedance | 2.4 k? | |
| ??Nominal input level | GAIN LOW: ?20 dBu (0.11 V) GAIN HIGH: ?44 dBu (6.91 mV) |
|
| ??Maximum input level | GAIN LOW: +3 dBu (1.55 V) GAIN HIGH: ?21 dBu (0.098 V) |
|
| ??Minimum input level | GAIN LOW: ?51.5 dBu (2.0 mV) GAIN HIGH: ?75.5 dBu (0.1 mV) |
|
| INPUT switch set to LINE: | ||
| ??Input impedance | 10 k? | |
| ??Nominal input level | +4 dBu (1.23 V) | |
| ??Maximum input level | +24 Bu (12.3 V) | |
| ??Minimum input level | ?27.5 dBu (0.05 V) | |
| LINE outputs | RCA pin jack | |
| ??Output impedance | 200 ? | |
| ??Nominal output level | ?10 dBV (0.3 V) | |
| ??Maximum output level | +6 dBV (2.0 V) | |
| PHONES jack | 6.3-mm stereo jack | |
| ??Maximum output power | 50 mW + 50 mW (into 32 ? load) | |
| Built-in speaker | 500 mW (monaural) |
| Digital audio input and output | ||
|---|---|---|
| DIGITAL/SYNC IN jack | RCA pin jack | |
| ??Format | IEC60958-3 (S/PDIF) or AES3-2003/IEC60958-4 (AES/EBU) automatically determined | |
| DIGITAL/SYNC OUT jack | RCA pin jack | |
| ??Format | IEC60958-3 (S/PDIF) or AES3-2003/IEC60958-4 (AES/EBU) set by user |
| Control input and output | ||
|---|---|---|
| USB connection | Mini-B type | |
| ??Format | USB2.0 HIGH SPEED (480 Mbit/s) |
| Audio performance | ||
|---|---|---|
| (LINE IN to LINE OUT, Input level = ?1 dBFS) | ||
| Frequency response | 20 Hz – 20 kHz +0.5/?1.5 dB (44.1 kHz) 20 Hz – 20 kHz +0.5/?0.5 dB (48 kHz) 20 Hz – 40 kHz +0.5/?1.0 dB (96 kHz) 20 Hz ? 80 kHz +0.5/?5.0 dB (192 kHz) |
|
| Distortion | 0.007% (1 kHz) | |
| S/N ratio | 100 dB(A) | |
| Equivalent input noise (EIN) | ??124 dBu |
| Host computer requirements | ||
|---|---|---|
| Windows | Pentium 300 MHz or faster 128 MB or more memory USB port (USB2.0 recommended) |
|
| Mac | 266 MHz Power PC, iMac, G3, G4 or faster 64 MB or more memory USB port (USB2.0 recommended) |
|
| Recommended USB host controller | Intel chipset | |
| Supported Operating Systems | Windows XP, Windows Vista, Windows 7 Mac OS X 10.2 or newer |
| Power supply and other specifications | ||
|---|---|---|
| Power supply | 8 AA batteries (alkaline, NiMH or Lithium) AC adapter GPE248-120200-Z (AC 100?240 V, 50?60 Hz, included) |
|
| Power consumption | ||
| ??AC 100?120 V | 9 W (phantom power on, AC adapter) | |
| ??AC 220?240 V | 9? W (phantom power on, AC adapter) | |
| Approximate battery operation time (continuous operation) | ||
| ??Alkaline batteries (Evolta) | 3? hours (phantom power on for 6 channels) 4? hours (phantom power on for 2 channels) 6 hours (phantom power off) |
|
| ??NiMH batteries | 4 hours (phantom power on for 6 channels) 4? hours (phantom power on for 2 channels) 5? hours (phantom power off) |
|
| ??Lithium batteries (Energizer Ultimate Lithium) | 7? hours (phantom power on for 6 channels) 9? hours (phantom power on for 2 channels) 11 hours (phantom power off) |
|
| Dimensions (width x height x depth) | 217 mm x 56 mm x 189 mm | |
| Weight | 1.2 kg (without batteries) | |
| Operating temperature range | 0?40 ?C |
