Sony UWP-D26 Bodypack transmitter and plug-on transmitter
USD 789.00 excl. Tax
Freqency Band – 566.035-630MHz
| Weight | 3.5 kg |
|---|
Description
Click to rate this post!
[Total: 1 Average: 5]
Sony UWP-D26 Bodypack transmitter and plug-on transmitter

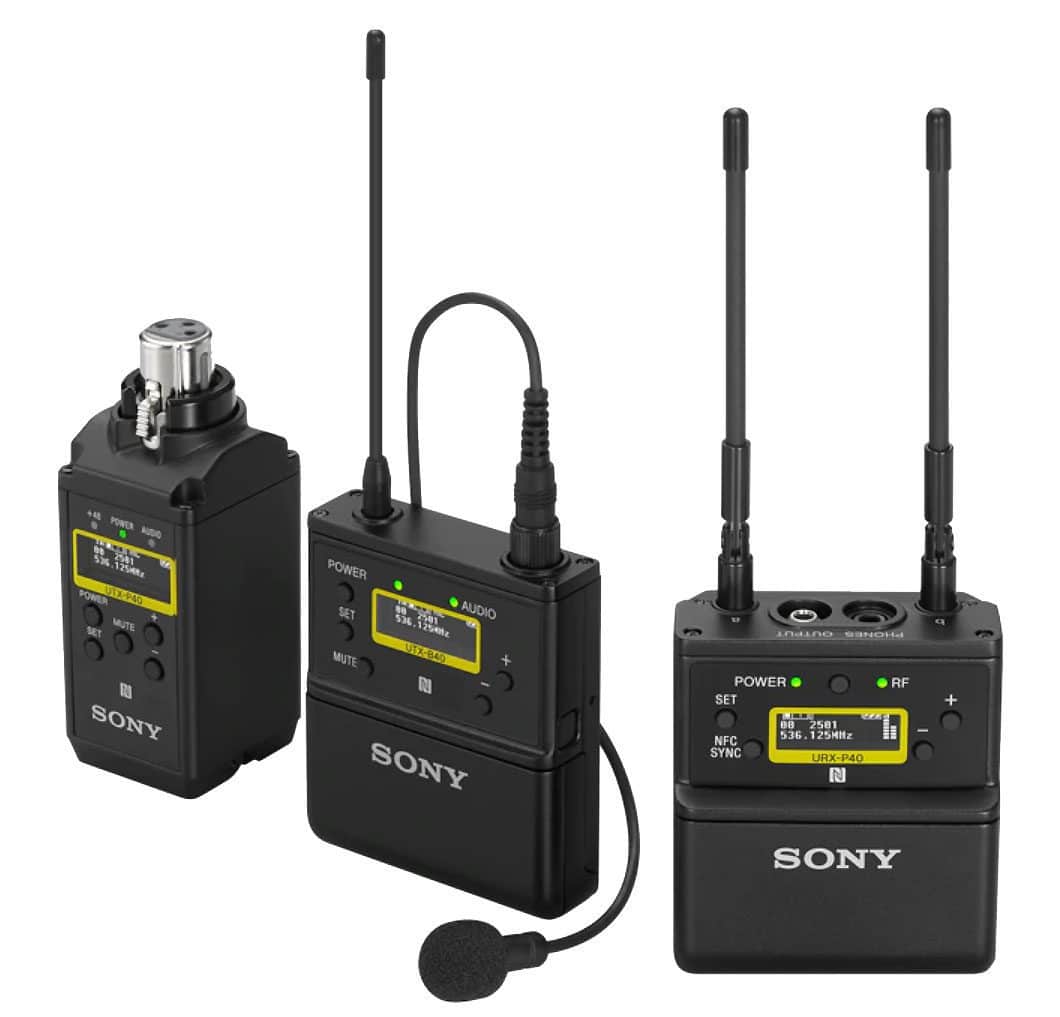

Sony UWP-D26 Bodypack transmitter and plug-on transmitter package includes UTX-P40 plug-on, UTX-B40 bodypack & URX-P40 receiver.
Absolute clarity. New UWP-D Series
Capture pure wireless sound in any shooting situation, from weddings to news, sporting events and documentaries. Our new Sony UWP-D26 crisp digital audio processing with dependable RF transmission – in a light, compact package that’s extremely easy to use.
Great sound made smarter
Make sure you’re heard on camera with absolute clarity. 24-bit audio is crisp and clear, with direct digital recording through MI (Multi Interface) shoe equipped camcorders with the new SMAD-P5 MI shoe adaptor that bypasses A/D and D/A conversion stages.
Seamless integration with our PXW-Z280 and PXW-Z190 camcorders, it displays mic information like RF levels, audio mute status and transmitter’s low battery alert in your camera’s viewfinder.
Quick, easy set-up
Our Sony UWP-D26 is great for videographers and camera operators working solo. By simply holding the NFC SYNC button on the receiver for a few seconds, it automatically scans the appropriate frequency.
Users just need to touch the receiver with the transmitter for transferring the channel. – saving time so you’re ready to start capturing great sound for your next scene. And with rock-solid RF transmission, you’ll enjoy stable wireless sound with virtually no glitches, dropouts or distortion.
Even more mobile
Beautifully light and compact, Sony UWP-D26 won’t slow you down when you’re on the move. It’s an ideal match for today’s compact camcorders and interchangeable lens digital cameras – giving you pure, dependable sound with less to carry.
Any way you want it
You’re ready to go with a choice of practical, cost-effective UWP-D series wireless packages to suit today’s audio applications – from videographers to documentary makers and news reporters.
Specifications
Click to rate this post!
[Total: 1 Average: 5]
|
URX-P40 portable receiver
|
|
|---|---|
|
Oscillator Type
|
Crystal-controlled PLL synthesizer
|
|
Reception Type
|
True diversity method
|
|
Antenna Type
|
1/4 λ wavelength wire antenna (angle-adjustable)
|
|
Carrier Frequencies
|
14UC : 470.125 MHz to 541.875 MHz (UHF-TV channels 14 to 25)
25UC : 536.125 MHz to 607.875 MHz (UHF-TV channels 25 to 36) 42LA : 638.125 MHz to 697.875 MHz (UHF-TV channels 42 to 51) 90UC : 941.625 MHz to 951.875 MHz, 953.000 MHz to 956.125 MHz, and 956.625 MHz to 959.625 MHz 21CE : 470.025 MHz to 542.000 MHz (UHF-TV channels 21 to 29) 33CE : 566.025 MHz to 630.000 MHz (UHF-TV channels 33 to 40) 42CE : 638.025 MHz to 694.000 MHz (UHF-TV channels 42 to 48) 38CN : 710.025 MHz to 782.000 MHz (UHF-TV channels 38 to 46) E : 794.125 MHz to 805.875 MHz BJ : 806.125 MHz to 809.750 MHz KR : 925.125 MHz to 937.500 MHz |
|
Frequency Response
|
23 Hz to 18 kHz (typical) (UC, U, CE, LA, CN, E, KR models)
40 Hz to 15 kHz (typical) (J model) |
|
Signal-to-Noise Ratio
|
60 dB (1 kHz sine wave, 5 kHz modulation)
|
|
Distortion (T.H.D)
|
0.9% or less (1 kHz sine wave, 5 kHz modulation)
|
|
Audio Delay
|
Approx. 0.35 ms (analog output)
Approx. 0.24 ms (digital output) |
|
Audio Output Connector
|
3.5mm diameter 3-pole locking mini jack, , external connection
|
|
Audio Output Level
|
–60 dBV (3.5 mm diameter 3-pole locking mini jack, analog output, 0 dB audio output level)
–20 dBFS (external connection, digital output, 0 dB audio output level) –50 dBFS (external connection, analog output, 0 dB audio output level) |
|
Analog Audio Output Adjustment Range
|
-12dB – +12dB (3dB step)
|
|
Headphone Output Connector
|
3.5 mm diameter mini jack
|
|
Headphone Output Level
|
Max. 10mW (16-ohm)
|
|
Tone Signal Frequency
|
In UWP-D compander mode: 32.382 kHz
In UWP compander mode: 32 kHz In WL800 compander mode: 32.768 kHz |
|
Display
|
OLED
|
|
Power Requirements
|
DC 3.0 V (two LR6/AA size alkaline batteries)
DC 5.0 V (supplied from USB Type-C connector) |
|
Battery Life*
|
Approx. six hours
*Battery life has been measured with two Sony LR6/AA size alkaline batteries at 25 °C (77 °F) DISPLAY MODE set to AUTO OFF. |
|
Operating Temperature
|
0 °C to 50 °C (32 °F to 122 °F)
|
|
Storage/Transport Temperature
|
–20 °C to +55 °C (–4 °F to +131 °F)
|
|
Dimensions
|
63 x 70 x 31 mm (2 1/2 x 2 7/8 x 1 1/4 in.) (W / H / D) (excluding antenna)
|
|
Mass
|
Approx. 131 g (4.6 oz) (excluding batteries)
|
|
UTX-B40 bodypack transmitter
|
|
|
Oscillator Type
|
Crystal-controlled PLL synthesizer
|
|
Antenna Type
|
1/4 λ wave length wire antenna
|
|
Carrier Frequencies
|
14UC : 470.125 MHz to 541.875 MHz (UHF-TV channels 14 to 25)
25UC : 536.125 MHz to 607.875 MHz (UHF-TV channels 25 to 36) 42LA : 638.125 MHz to 697.875 MHz (UHF-TV channels 42 to 51) 90UC : 941.625 MHz to 951.875 MHz, 953.000 MHz to 956.125 MHz, and 956.625 MHz to 959.625 MHz 21CE : 470.025 MHz to 542.000 MHz (UHF-TV channels 21 to 29) 33CE : 566.025 MHz to 630.000 MHz (UHF-TV channels 33 to 40) 42CE : 638.025 MHz to 694.000 MHz (UHF-TV channels 42 to 48) 38CN : 710.025 MHz to 782.000 MHz (UHF-TV channels 38 to 46) E : 794.125 MHz to 805.875 MHz BJ: 806.125 MHz to 809.750 MHz KR : 925.125 MHz to 937.500 MHz |
|
RF Output Power
|
30 mW/5 mW selectable (UC, U, CE, LA, CN models)
10 mW/2 mW selectable (J, E, KR models) |
|
Capsule Type
|
Elect retcondenser
|
|
Directivity
|
Omni-directional
|
|
Input Connector
|
3.5 mm diameter 3-pole locking mini jack
|
|
Reference Audio Input Level
|
–60 dBV (MIC input, GAIN MODE set to NORMAL, 0 dB attenuation)
+4 dBu (LINE input ) |
|
Audio Attenuator Adjustment Range
|
0 dB to 27 dB (3 dB steps)
|
|
Frequency Response
|
23 Hz to 18 kHz (Typical) (UC, U, CE, LA, CN, E, KR models)
40 Hz to 15 kHz (Typical) (J model) |
|
Signal-to-Noise Ratio
|
60 dB (–60 dBV, 1 kHz input)
102 dB (GAIN MODE set to AUTO GAIN, max.) 96 dB (GAIN MODE set to NORMAL, max.) |
|
Distortion
|
0.9% or less (–60 dBV, 1 kHz input)
|
|
Audio Delay
|
Approx. 0.35 ms
|
|
Tone Signal Frequency
|
In UWP-D compander mode: 32.382 kHz
In UWP compander mode: 32 kHz In WL800 compander mode: 32.768 kHz |
|
Display
|
OLED
|
|
Power Requirements
|
DC 3.0 V (two LR6/AA size alkaline batteries)
DC 5.0 V (supplied from USB Type-C connector) |
|
Battery life*
|
Approx. 8 hours with output power of 30 mW (UC, U, CE, LA, CN models) * Battery life has been measured with two Sony LR6/AA size alkaline batteries at 25 °C (77 °F). |
|
Operating Temperature
|
0 °C to 50 °C (32 °F to 122 °F)
|
|
Storage/Transport Temperature
|
-20 °C to +55 °C (–4 °F to +131 °F)
|
|
Dimensions
|
63 x 73 x 19 mm (2 1/2 x 2 7/8 x 3/4 in.) (W / H / D) (excluding antenna)
|
|
Mass
|
Approx. 83 g (2.9 oz) (excluding batteries)
|
|
UTX-P40 XLR plug-on transmitter
|
|
|
Oscillator Type
|
Crystal-controlled PLL synthesizer
|
|
Carrier Frequencies
|
14UC : 470.125 MHz to 541.875 MHz (UHF-TV channels 14 to 25)
25UC : 536.125 MHz to 607.875 MHz (UHF-TV channels 25 to 36) 42LA : 638.125 MHz to 697.875 MHz (UHF-TV channels 42 to 51) 90UC : 941.625 MHz to 951.875 MHz, 953.000 MHz to 956.125 MHz, and 956.625 MHz to 959.625 MHz 21CE : 470.025 MHz to 542.000 MHz (UHF-TV channels 21 to 29) 33CE : 566.025 MHz to 630.000 MHz (UHF-TV channels 33 to 40) 42CE : 638.025 MHz to 694.000 MHz (UHF-TV channels 42 to 48) 38CN : 710.025 MHz to 782.000 MHz (UHF-TV channels 38 to 46) E : 794.125 MHz to 805.875 MHz BJ : 806.125 MHz to 809.750 MHz KR : 925.125 MHz to 937.500 MHz |
|
RF Output Power
|
40 mW/5 mW selectable (UC, U, LA models)
30 mW/5 mW selectable (CE, CN models) 10 mW/2 mW selectable (J, E, KR models) |
|
Input Connector
|
XLR-3-11C type (female)
|
|
Reference Audio Input Level
|
–60 dBV (MIC input, GAIN MODE set to NORMAL, 0 dB attenuation)
|
|
Audio Attenuator Adjustment Range
|
0 dB to 48 dB (3 dB steps)
|
|
Frequency Response
|
23 Hz to 18 kHz (Typical) (UC, U, CE, LA, CN, E, KR models)
40 Hz to 15 kHz (Typical) (J model) |
|
Signal-to-Noise Ratio
|
60 dB (–60 dBV, 1 kHz input)
102 dB (GAIN MODE set to AUTO GAIN, max.) 96 dB (GAIN MODE set to NORMAL, max.) |
|
Distortion
|
0.9% or less (–60 dBV, 1 kHz input)
|
|
Audio Delay
|
Approx. 0.35 ms
|
|
Tone Signal Frequency
|
In UWP-D compander mode: 32.382 kHz
In UWP compander mode: 32 kHz In WL800 compander mode: 32.768 kHz |
|
Display
|
OLED
|
|
Power Requirements
|
DC 3.0 V (two LR6/AA size alkaline batteries)
DC 5.0 V (supplied from USB Type-C connector) |
|
Battery Life*
|
During +48V OFF: During +48V ON and ECM-673 connection: * Battery life has been measured with two Sony L R6/AA size alkaline batteries at 25 °C (77 °F). |
|
Operating Temperature
|
0 °C t o 50 °C (32 °F to 122 °F)
|
|
Storage/Transport Temperature
|
–20 °C to +55 °C (–4 °F to +131 °F)
|
|
Dimensions
|
38 x 98 x 38 mm (1 1/2 x 3 7/8 x 1 1/2 in.) (W / H / D) (including the audio input connector)
|
|
Mass
|
Approx. 139 g (4.9 oz) (excluding batteries)
|
