    Sennheiser EW 500 G4-945 Wireless Microphone Vocal Set

    USD 990.00 – USD 1,085.83 excl. Tax excl. Tax

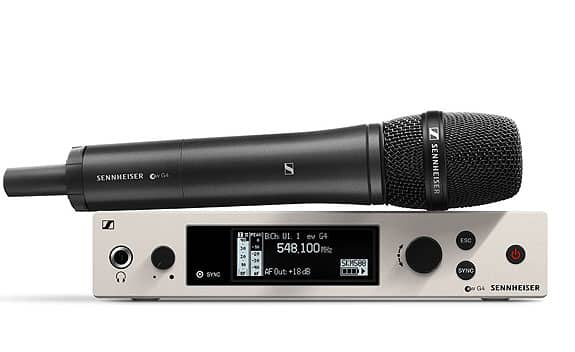

    Sennheiser EW 500 G4-945 For professional live performances, this set consists of 1 SKM 500 G4 handheld, 1 MMD 945 super-cardioid dynamic capsule, 1 em 300-500 G4 rackmount receiver, 1 GA3 rack kit, and 1 mic clip

    Weight N/A
    Choose Product Variant

    EW 500 G4-945-Aw+ (470 – 558 MHz)

    ,

    EW 500 G4-945-Bw (626 – 698 MHz)

    ,

    EW 500 G4-945-Cw (718 – 790 MHz)

    ,

    EW 500 G4-945-Dw (790 – 865 MHz)

    ,

    EW 500 G4-945-Gw (558 – 626 MHz)

    ,

    EW 500 G4-945-GBw
    SKU: EW 500 G4-945 Category:
    Description
    Click to rate this post!
    [Total: 1 Average: 5]

    Sennheiser EW 500 G4-945 Wireless Microphone Vocal Set for musicians, filmmakers, speakers

    Sennheiser EW 500 G4-945 Microphone comes with true diversity half-rack receiver in a full-metal housing with an intuitive OLED display for full control.

    The professional’s choice. Renowned sound engineers rely on ew 500 G4’s flexibility, especially when handling multi-channel settings on the world’s music stages. Up to 88 MHz bandwidth, up to 32 channels. Ethernet connection for Wireless Systems Manager (WSM) control software included for advanced frequency coordination in multi-channel setups.

    The pinnacle of the evolution series, powered by Sennheiser’s renowned e 900 capsules e 935, e 945, and e 965 on a lightweight black aluminum handheld transmitter, is ready to take the world’s biggest live stages.

    • True diversity half-rack receiver in a full-metal housing with an intuitive OLED display for full control
    • Easy and flexible wireless synchronization between transmitter and receiver via infrared
    • Up to 32 compatible channels
    • Up to 88 MHz bandwidth with 3520 selectable frequencies, fully tunable in a stable UHF range
    • Ethernet connection for Wireless Systems Manager (WSM) control software for advanced frequency coordination in multi-channel setups
    • High RF output power (up to 50 mW, adjustable in three steps 10/30/50) depending on country regulations

    Sennheiser EW Series Family Product

    EW 112P G4 Wireless Microphone

    EW 100 G4-ME4 Wireless Microphone

    EW 500 BOOM G4 Wireless Microphone

    EW 122P G4 Wireless Microphone

    EW 512P G4 Wireless Microphone

    EW IEM G4-TWIN Monitor System

    EW IEM G4 Monitor System

    Other Site

    EW 500 G4-945 Microphone





    Specifications
    Click to rate this post!
    [Total: 1 Average: 5]

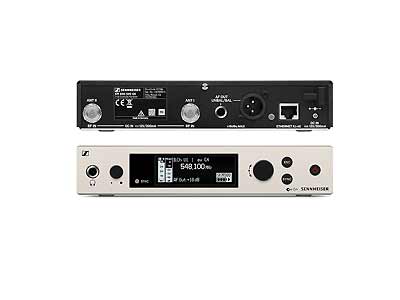

    EM 300-500 G4
    Frequency range
    AW+ : 470-558 MHz
    Gw : 558-626 MHz
    Bw : 626-698 MHz
    Cw : 718-790 MHz
    Dw : 790-865 MHz
    GBw : 606-678 MHz
    Dimensions
    Approx. 202 x 212 x 43 mm
    Compander
    Sennheiser HDX
    THD, total harmonic distortion
    ≤ 0.9 %
    Weight
    Approx. 980 g
    Audio output
    6.3 mm jack socket (unbalanced): +12 dBu
    XLR socket (balanced): +18 dBu
    Signal-to-noise ratio
    ≥ 115 dBA
    Switching bandwidth
    up to 88 MHz
    Peak deviation
    ±48 kHz
    Nominal deviation
    ±24 kHz
    Modulation
    Wideband FM
    Power supply
    12 V DC
    Antenna connector
    2 BNC sockets
    Current consumption
    350 mA
    Adjacent channel rejection
    Typically ≥ 75 dB
    Intermodulation attenuation
    Typically ≥ 70 dB
    Receiving frequency
    Max. 3520 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
    RF sensitivity
    < 2.5 μV for 52 dBA eff S/N
    Squelch
    5 to 25 dBμV in steps of 2 dB
    Equalizer
    Preset 1: Flat
    Preset 2: Low Cut (-3 dB at 180 Hz)
    Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)
    Preset 4: High Boost (+6 dB at 10 kHz)
    Temperature Range
    -10 °C to +55 °C
    Receiver Principle
    True diversity
    Blocking
    ≥ 75 dB

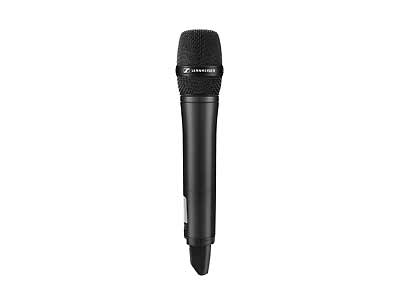

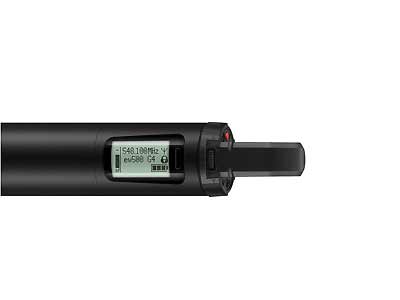

    SKM 500 G4
    Dimensions
    Approx. Ø 50 x 265 mm
    Compander
    Sennheiser HDX
    THD, total harmonic distortion
    ≤ 0.9 %
    Weight
    (incl. batteries) approx. 450 g
    Signal-to-noise ratio
    ≥ 115 dBA
    RF output power
    switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW
    Switching bandwidth
    up to 88 MHz
    Peak deviation
    ±48 kHz
    Nominal deviation
    ±24 kHz
    Operating time
    Typically 8 h
    Modulation
    Wideband FM
    Power supply
    2 AA batteries, 1.5 V or BA 2015 accupack
    Current consumption
    at nominal voltage: typ. 180 mA
    with transmitter switched off: ≤ 25 µA
    Powering
    3 V battery / 2.4 V rechargeable battery
    Transmission frequency
    Max. 3520 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
    AF frequency response
    80 – 18,000 Hz
    Temperature Range
    -10 °C to +55 °C
    Frequency stability
    ≤ ±15 ppm
    MMD 945-1
    Sound pressure level (SPL)
    154 dB SPL
    Transducer principle
    dynamic
    Pick-up pattern
    Supercardioid
    Sensitivity
    1.8 mV/Pa
    In The Box
    Click to rate this post!
    [Total: 1 Average: 5]
    • EM 300-500 G4 true diversity receiver
    • SKM 500 G4 handheld transmitter
    • MMD 945-1 microphone head (only 945 variants)
    • MZQ 1 microphone clamp
    • 2 AA batteries
    • power supply
    • GA 3 rackmount set
    • 2 rod antennas
    • quick guide
    • safety guide
    • manufacturer declaration sheet
