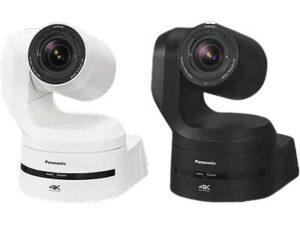

Panasonic AW-UE160 4K integrated PTZ Poe++ cameras System

Name: Panasonic AW-UE160 4K integrated PTZ Poe++ cameras System
Rating: 5 (1 reviews)

Uncompromising shooting performance and operability
Optical low-pass filter significantly reduces moiré
Newly developed 4K Sensor offering superior sensitivity
Significantly improved Autofocus with advanced technology
SMPTE 2110 Support with purchase of additional software key

Weight	N/A
Choose Product Variants	AW-UE160W , AW-UE160K

SKU: AW-UE160W/K Category: NDI

Description

Click to rate this post!

[Total: 1 Average: 5]

Panasonic AW-UE160 4K PTZ Camera for an era of enhanced creativity and the pursuit of visual expression

Panasonic AW-UE160 4K PTZ Camera is built with a Phase Detection Autofocus designed to meet the needs of modern content creators and production professionals. It is available in two colors, Pearl White (AW-UE160W), and Black (AW-UE160K).

With the growing demand continuing in the video content creation market, the Panasonic AW-UE160 can be deployed in a variety of situations even when human resources and cost control are required, including filming large-scale events and studio recording and streaming.

By combining your system camera with a Pan tilt zoom (PTZ) Camera, it transforms the conventions of the video content industry with its unique method of video production that can be adapted through a wide variety of shooting techniques, its industry-leading shooting performance with a variety of new functions, and its scalability to support the latest international standards and a wide range of protocols and I/Fs.

The AW-UE160 W/K 4K PTZ Camera Systems are the latest addition to Panasonic’s line of high-quality video production equipment. With its innovative features, the AW-UE160W/K is designed to meet the needs of modern content creators and production professionals. It is available in two colors, Pearl White (AW-UE160W), and Black (AW-UE160K).

One of the most striking features of the AW-UE160W/K is its high sensitivity of F14/2000 lx, which is equivalent to a studio camera. The camera uses a new-generation engine that maximizes the performance of the image sensor and improves image quality and autofocus performance. The camera is also equipped with Phase Detection Autofocus (PDAF), a newly developed PTZ mechanism, and a moiré reduction function provided by the optical low-pass filter.

The AW-UE160W/K also supports V-Log and HDR (HLG) to meet the needs of modern video production. The camera is equipped with both Optical Image Stabilization (OIS) and Electronic Image Stabilization (EIS) to help keep your shots steady and smooth. The camera is compatible with the SMPTE ST 2110 standard, which makes it ideal for live production and streaming.

In addition to its outstanding performance, the AW-UE160W/K is also highly versatile. It supports a return input function, 2x high-speed output, and is equipped with 2 XLR channels for audio input. The camera is also compatible with 5G mobile routers and supports USB tethering for high-speed, high-capacity video transmission.

To make the shooting process easier and less stressful, the AW-UE160W/K features various I/Fs and supported protocols, smooth image and color matching, and a waveform display function. The camera is also compatible with Panasonic’s free software and the Panasonic Remote Operation Panel (ROP), making it easy to operate and control.

Another innovative feature of the AW-UE160W/K is its compatibility with FreeD, which enables the construction of AR/VR systems. The camera also has a cropping function, which allows you to focus on a specific part of the image while shooting, and a horizontal level gauge display function, which makes it easy to level the camera.

In conclusion, the AW-UE160 W/K 4K PTZ Camera Systems are a powerful and versatile tool for modern video production. With its high-quality performance, innovative features, and ease of use, the AW-UE160W/K is an excellent choice for anyone looking to produce professional-level video content.

Features

Uncompromising shooting performance and operability.

The high sensitivity of F14/2000 lx, equivalent to a studio camera
New generation engine that maximizes image sensor performance and improves image quality and AF performance
Equipped with newly developed PDAF (Phase Detection Autofocus)
Equipped with a newly developed PTZ mechanism
Equipped with moiré reduction function by an optical low-pass filter
Compatible with V-Log
Compatible with HDR (HLG)
Equipped with Optical Image Stabilization (OIS) and Electronic Image Stabilization (EIS)

Realize next-generation video production with various shooting methods and functions.

Industry’s first SMPTE ST 2110 standard compatibility
Industry’s first return input function
Supports 2x high-speed output
Equipped with 2 XLR channels for audio input to enable high-quality recording
The industry’s first 5G mobile router (USB tethering support) for high-speed, high-capacity video transmission
Equipped with a rear tally lamp
FreeD support for the construction of AR/VR systems
Cropping function
Flexibility to freely set positions and angles

Ease of use and versatility reduce the stress of shooting on-site.

Various I/Fs and supported protocols
Smooth image and color matching
Waveform display function
Horizontal level gauge display function
Compatible with free Panasonic software
Compatible with Panasonic Remote Operation Panel (ROP)

To learn more about Related Products

Indhu UC added on 14 Feb 2023

Specifications

Click to rate this post!

[Total: 1 Average: 5]

General
Power Requirements	12 V DC ± 10% (10.8 V to 13.2 V)
PoE++	IEEE802.3bt standard: DC 42 V to 57 V (Camera Input)*¹ (Software authentication (LLDP) is supported).
Current Consumption	5.0A (XLR IN connector), 1.5A (PoE++ power supply)
Ambient Operating Temperature	0 °C to 40 °C (32 °F to 104 °F)
Ambient Operating Humidity	20 % to 90 % (no condensation)
Storage Temperature	–20 °C to 50 °C (–4 °F to 122 °F)
Mass	Approx. 4.6 kg (10.14 lbs) (excluding mount bracket)
Dimensions (W x H x D)	213 mm x 277 mm x 240 mm (8.39 inches x 10.91 inches x 9.45 inches) (excluding protrusions, ceiling mount bracket)
Finish	AW‑UE160W: Pearl white AW‑UE160K: Black
Controller Supported	AW-RP150GJ, AW-RP60GJ, AK-HRP1010GJ, AK-HRP1015GJ, AK-HRP250GJ
Camera Unit
Imaging Sensors	1-type (1″) (Effective size) 4K MOSx1
Effective Pixels	Approx. 9,620,000 pixels
Lens	Motorized Optical 20x zoom, F2.8 to F4.5 [f=8.8 mm (11/32 inches) to 176.0 mm (6-15/16 inches), 35 mm (1-3/8 inches) equivalent: 24.5 mm (31/32 inches) to 490.0 mm (19-9/32 inches)]
Zoom	• Optical zoom: 20x • i.Zoom: UHD 24x, FHD 32x • D.Extender zoom: 1.4x, 2x
Conversion Lens	Not supported
The angle of View Range	Horizontal angle of view: 75.1° (wide) to 4.0° (tele) The vertical angle of view: 46.7° (wide) to 2.3° (tele) Diagonal angle of view: 82.8° (wide) to 4.6° (tele)
Optical Filter	Through, 1/4, 1/16, 1/64*², (Through is used as “Night mode”)
Focus	Switching between auto and manual
Focus Distance	Entire zooming range: 1000 mm (3.3 ft) Wide end: 100 mm (0.33 ft)
Color Separation Optical System	1MOS
Standard Sensitivity	F14 / 2,000lx (Low Light), F11 / 2,000㏓ (Normal)
Horizontal Resolution	1,600 TV lines Typ (Center area)
Gain Selection	Auto, -6 dB to 36 dB*³
Frame Mix	Auto, 0 dB, 6 dB, 12 dB, 18 dB, 24 dB*⁴
Electronic Shutter Speed	60p	1/60, 1/100, 1/120, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000
	59.94p/59.94i	1/60, 1/100, 1/120, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000
	50p/50i	1/60, 1/100, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000
	29.97p	1/48, 1/50, 1/60, 1/96, 1/100, 1/120, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000
	25p	1/48, 1/50, 1/60, 1/96, 1/100, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000
	23.98p	1/48, 1/50, 1/60, 1/96, 1/100, 1/200, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000
	59.94p/120 fps	1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000
	50p/100fps	1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000
Synchro Scan	60p	60.00 Hz to 7200 Hz
	59.94p/59.94i	60.00 Hz to 7200 Hz
	50p/50i	50.00 Hz to 7200 Hz
	29.97p	30.00 Hz to 7200 Hz
	25p	25.00 Hz to 7200 Hz
	23.98p	24.00 Hz to 7200 Hz
	59.94p/120 fps	120.00 Hz to 7200 Hz
	50p/100fps	100.00 Hz to 7200 Hz
Gamma	HD / NORMAL / CINEMA1 / CINEMA2*⁵ MASTER GAMMA (0.15～0.75) R GAMMA (-75～+75) B GAMMA (-75～+75) R BLACK GAMMA (-20～+20) B BLACK GAMMA (-20～+20)
White Balance	ATW*⁶: 3200K, 5600K AWB: AWB-A / AWB-B VAR (selectable between 2000K and 15000K by designating a value)
Chroma Amount Variability	OFF, –100 % to 40 %
Scene File	Scene1 to 8
Color Bar*⁷	SMPTE Full Bar ARIB (multi-format): Outputs only baseband signals ARIB (UHD multi-format): Outputs only UHD of baseband signals
Output Format (UHD/FHD SDI)	4K	2160/60p*⁸, 2160/59.94p, 2160/50p, 2160/29.97p (Native), 2160/25p (Native), 2160/24p (Native), 2160/23.98p (Native)
Output Format (UHD/FHD SDI)	HD	1080/119.88p⁹¹⁰, 1080/100p⁹¹⁰, 1080/60p, 1080/59.94p, 1080/50p, 1080/29.97p (Native), 1080/25p (Native), 1080/24p (Native), 1080/23.98p (Native), 1080/59.94i, 1080/50i, 720/59.94p, 720/50p
Output Format (HDMI)	4K	2160/60p*⁸, 2160/59.94p, 2160/50p, 2160/29.97p (Native), 2160/25p (Native), 2160/24p (Native), 2160/23.98p (Native)
Output Format (HDMI)	HD	1080/119.88p, 1080/100p, 1080/60p, 1080/59.94p, 1080/50p, 1080/29.97p (Native), 1080/25p (Native), 1080/24p (Native), 1080/23.98p (Native), 720/59.94p, 720/50p
Output Format (Fiber (video only))	4K	2160/59.94p, 2160/50p, 2160/29.97p (Native), 2160/25p (Native), 2160/24p (Native), 2160/23.98p (Native)
Output Format (Fiber (video only))	HD	1080/60p, 1080/59.94p, 1080/50p, 1080/29.97p (Native), 1080/25p (Native), 1080/24p (Native), 1080/23.98p (Native), 1080/59.94i, 1080/50i, 720/59.94p, 720/50p
Output Format (ST 2110*¹¹)	HD	1080/60p, 1080/59.94p, 1080/50p, 1080/29.97p (Native), 1080/25p (Native), 1080/24p (Native), 1080/23.98p (Native), 720/59.94p, 720/50p
Synchronization System
	Internal/External synchronization (BBS/Tri-level sync)
Input
Input Connector	DC IN	DC 12 V IN
	G/L IN	BBS (Black Burst Sync), tri-level sync supported
	AUDIO INPUT 1/2	XLR (2ch) or MIC/LINE Input compatibles (SDI/HDMI/IP) AAC compatibility (compatible with IP only)XLR 3-pin female balanced input: 2ch • During MIC input Input level: –50 dB or -60 dBu/-40 dBu (0 dB=1 V/Pa, 1 kHz) Phantom power compatible, Supply voltage: 47 V±2 V Input impedance: Approx. 10kΩ • During LINE input Input level: 0 dBu (or +4 dBu/-20 dBu) Input impedance: Approx. 10kΩ • Input volume variable range: -40 dB to 0 dB to +20 dB (1 dB step) • Embedded audio output level: -12 dBFS/-18 dBFS/-20 dBFS • Sampling frequency: 48 kHz • Quantization bit rate: 24-bit (SDI/HDMI), 16bit (IP)
Output
Video Output	HDMI	HDMI 2.0 standard 4:2:2/10bit¹²¹³
	12G-SDI OUT	SMPTE2082_1, SMPTE424M/SMPTE292M/ 75 Ω (BNC x 1)*¹⁴
	3G-SDI OUT1	SMPTE424M/SMPTE292M/ 75 Ω (BNC x 1)*¹⁴
	3G-SDI OUT2/PM	SMPTE424M/SMPTE292M/ 75 Ω (BNC x 1)*¹⁴
	SFP+	SFP+ compliant (Single Fiber)*¹⁵
	USB	USB3.0 HOST 5G mobile router (with USB tethering support)*¹⁶
Input/Output
Input/Output Connector	LAN	LAN connector for IP control (RJ‑45)
	RS-422	CONTROL IN RS-422A (RJ‑45)
	SFP+ (ST 2110*¹¹)	Compatible protocol: • ST 2110-10/-20/-21/-30 • PTP ST2059-2 • NMOS IS-04/IS-05 Number of outputs: Video x3 (Mainline, Crop, Monitor), Audio x2 Number of inputs: Video x1 (RETURN) Video format: FHD*¹⁷
Pan-tilt Head Unit
Pan-tilt Head Control	IP connecting cable	• With PoE++ ethernet hub LAN cable¹⁸ (category 5e or above, straight cable) up to 100 m • Without PoE++ ethernet hub LAN cable¹⁸ (category 5e or above, straight cable) up to 100 m*¹⁹
Pan-tilt Head Control	AW protocol connecting cable	LAN cable*¹⁸ (category 5e or above, straight cable) up to 1000 m
Installation Method	Stand-alone (Desktop) or suspended (Hanging)*²⁰
Pan/tilt Operation Speed	Speed range	0.08 °/s to 180°/s (Normal mode)*²¹
Pan/tilt Operation Speed	Maximum speed	Normal mode: 60°/s Fast1 mode: 90°/s Fast2 mode: 180°/s
Panning Range	±175°
Tilting range	–30° to 210°*²¹
Quietness	NC35 or less*²²
Supported Operating Systems and Web Browsers
Supported Operating Systems and Web Browsers	Windows	Windows^®10 Microsoft Edge Google Chrome
	Mac	macOS 10.13 / Safari 13 macOS 10.14 / Safari 13 macOS 10.15 / Safari 13 macOS 10.15 / Google Chrome
	iPhone/iPad/ iPod touch	iOS Safari iPadOS
	Android	Android OS Google Chrome
IP Streaming
Image Streaming Mode	JPEG (MJPEG), H.264, H.265, NDI^®\|HX Ver.2, High Bandwidth NDI^®²³²⁴
Image Resolution	3840×2160, 1920×1080, 1280×720, 640×360
Image Transmission Setting (JPEG)	Frame Rate: Maximum 30 fps²⁵²⁶ Image quality (Fine / Normal)
Image Transmission Setting (H.264)	Transmission Type	Unicast port (AUTO) Unicast port (MANUAL) Multicast port
	Transmission mode	CBR, VBR
	Frame Rate	[60Hz] 5fps / 15fps / 30fps / 60fps (UHD: 30fps, 60fps) [50Hz] 5fps / 12.5fps / 25fps / 50fps (UHD: 25fps, 50fps)
	Max Bit Rate	2048kbps / 4096kbps / 8192kbps / 10240kbps / 12288kbps / 14336kbps / 20480kbps / 24576kbps / 51200kbps / 76800kbps
Image Transmission Setting (H.265)	Transmission Type	Unicast port (AUTO) Unicast port (MANUAL) Multicast port
	Transmission mode	CBR, VBR
	Frame Rate	[60Hz] 30fps / 60fps [50Hz] 25fps / 50fps
	Max Bit Rate	2048kbps / 4096kbps / 8192kbps / 10240kbps / 12288kbps / 14336kbps / 20480kbps / 24576kbps / 51200kbps / 76800kbps
Audio Compression Type	AAC-LC, 48 kHz / 16 bit / 2ch
Supported Protocol	Network Protocol:	ICMP, ARP, GARP, MLD
	Transmission Protocol	TCP/IP, UDP/IP
	Application Protocol	IPv4 : HTTP、HTTPS、DNS、NTP、DHCPv6、MDNS、SNMP、802.1X IPv6 : HTTP、HTTPS、DNS、NTP、DHCPv4、MDNS、SNMP、802.1X
	Video Streaming Protocol	RTP / RTCP over RTSP, RTMP, RTMPS, SRT, MPEG2-TS over UDP, NDI^®\|HX ver.2, high bandwidth NDI^®
	External Device Cooperation Protocol	FreeD, TSL5.0, SNMP
NDI^® Support
NDI^® Support	NDI^®(High Bandwidth NDI^®, NDI^®\|HX Ver.2)²³²⁴
Output Format (High bandwidth NDI)	4K	2160/59.94p, 2160/50p, 2160/29.97p, 2160/25p, 2160/24p, 2160/23.98p
Output Format (High bandwidth NDI)	HD	1080/60p, 1080/59.94p, 1080/50p, 1080/29.97p, 1080/25p, 1080/24p, 1080/23.98p, 720/59.94p, 720/50p*²⁷
Image Resolution (NDI^®\|HX Ver.2)	1920×1080, 1280×720*²⁸
Image Streaming Setting	High Bandwidth NDI^®	Transmission Type: TCP/UDP Unicast/Multicast Bit rate: Max 250 Mbps
Image Streaming Setting	NDI^®\|HX Ver.2	Transmission Type: TCP/UDP Unicast/MulticastFrame rate: [60Hz] 5fps / 15fps / 30fps / 60fps [50Hz] 5fps / 12.5fps / 25fps / 50fpsMax Bit Rate: 512kbps / 768kbps / 1024kbps / 1536kbps / 2048kbps / 3072kbps /4096kbps / 6144kbps / 8192kbps / 10240kbps / 12288kbps / 14336kbps / 16384kbps / 20480kbps / 24576kbps
Audio Compression Type	High Bandwidth NDI^®	AAC, 48 kHz, 2 ch
Audio Compression Type	NDI^®\|HX Ver.2	AAC-LC, 48 kHz,16 bit, 2 ch
ST 2110*⁹
Supported Format	ST 2110	10/20/21/30
	PTP	ST2059-2
	NMOS	IS-04/IS-05
Number of Outputs (TX)	Video	3 channels (Full x 1, MONI x 1, Crop x 1)
	Audio	2 channels
	Auxiliary data	No output
Number of Inputs (RX)	Video	1 channel (RETURN)*²⁹
	Audio	No input
	Auxiliary data	No input
Output Format	Video format	Full x1, MONI x1, Crop x1, all the same format 1080/60p, 1080/59.94p, 1080/50p, 1080/59.94i, 1080/50i, 1080/29.97p (Native), 1080/25p (Native), 1080/24p, 1080/23.98p (Native), 720/59.94p, 720/50p
Output Format	Audio specifications MIC1/2	PCM / 48kHz / 24bit / 1ch x2
Input Format	Video format	1080/60p⁸, 1080/59.94p, 1080/50p, 1080/59.94i⁸, 1080/50i⁸, 1080/29.97p (Native)⁸, 1080/25p (Native)⁸,1080/24p⁸, 1080/23.98p (Native)⁸, 720/59.94p⁸, 720/50p*⁸
New Features
HDR/SDR	HLG/BT.2020 compatible，SDR/BT.709 compatible
Cropping	Select from 3 types of images from 3G/SDI OUTPUT2, Crop Zoom available
F-Number Display	Displayed on the AW-RP15GJ and AW-RP60GJ
NDI	High Bandwidth NDI^®,NDI^®\|HX Ver.2 included as standard*³⁰
IP Menu Display	Supported*³¹
VR (FreeD) (IP/RS422)	Supported
Power LED	ON/OFF control
Tripod Screw Penetration Measures	Yes
Image Stabilization	OIS 2-axis + Hybrid method of roll direction correction MENU switching: select between OFF/O.I.S. (Stable)/O.I.S. (Pan/Tilt)/Hybrid (Stable)/Hybrid (Pan/Tilt)
Privacy Mode	The lens surface faces downward when standing by (ON/OFF)
Yellow Tally	Supported
PTP	Supported
5G Mobile Router (with USB tethering support)	Compatible with recommended products only
WFM Display	Output with video superimposed from 3G/SDI OUTPUT2
Focus Assist	Display focus display using PDAF (Phase Detection Auto Focus)*⁸
Return Video Output	Output return video input from ST 2110¹¹, NDI via SDI_OUT2 All supported formats will be upgraded after the product is released.
Horizontal Level Gauge	ON/OFF control in OSD MENU or Web GUI
Optional Accessories
Wireless Remote Controller	AW‑RM50AG (Size “AA” dry battery x2, obtained separately)

Delivery Info

Click to rate this post!

[Total: 1 Average: 5]

How to shop TAX free in Singapore

9% Goods Service Tax (GST) will be imposed over the total invoice value if purchased locally in Singapore. However if you are a tourist visiting Singapore, this GST amount can be refunded at the Changi International Airport Departure Hall GST Refund Centre before departure with goods within 60 days from the date of purchase. Please note that only Tourists who have met the Tourist Refund Scheme’s conditions and eligibility criteria can claim for the GST refund. Visit the following link for GST Guide for Visitors on Tourist Refund Scheme. https://www.iras.gov.sg/taxes/goods-services-tax-(gst)/consumers/tourist-refund-scheme

All items that are available for purchase online are subjected to availability. For item that are available, a confirmation email will be sent to your registered email to show that your order had been processed and is ready for collection / to be delivered. In the event whereby the item ordered is unavailable, a notification email will be sent and refund will be initiated immediately.

Self-collect: Item will be ready for collection at our store once the confirmation email is received. Orders that are made on the Weekends or Public Holiday may take about 2-4 working days to process.

Delivery (Local, Singapore): Small items: Delivery will take approximately 3-5 working days (excluding weekends and public holidays) to be delivered upon confirmation of order. Orders will be delivered by Singpost or local couriers.

Large / Bulky items: Delivery will take approximately 7-10 working days (excluding weekends and public holidays) to be delivered upon confirmation of order. Orders will be delivered by Expandore.

Delivery (Overseas); Shipment will be arranged with our courier partners to be delivered to your shipping address.

If you have other inquiries for placing of order and delivery, you can refer to our FAQ here (https://www.expandore.sg/faq/) Or Contact us here (https://www.expandore.sg/contact-us/)

Reviews (0)

Rated 0 out of 5

0 reviews

Rated 5 out of 5

Rated 4 out of 5

Rated 3 out of 5

Rated 2 out of 5

Rated 1 out of 5

Reviews

Clear filters

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Panasonic AW-UE160 4K integrated PTZ Poe++ cameras System

Panasonic AW-UE160 4K PTZ Camera for an era of enhanced creativity and the pursuit of visual expression

Features

Uncompromising shooting performance and operability.

Realize next-generation video production with various shooting methods and functions.

Ease of use and versatility reduce the stress of shooting on-site.

How to shop TAX free in Singapore

Reviews

BirdDog P400 4K Full NDI with Sony Sensor

BirdDog P110 Full NDI PTZ Camera

BirdDog X1 Ultra 4K NDI PTZ Camera with 12x Zoom

Panasonic AW-UE40 4K PTZ cameras with HDMI Connectivity

Panasonic AW-UE50 4K PTZ cameras supports 3G SDI, HDMI, and IP output.

Panasonic AW-UE160 4K integrated PTZ Poe++ cameras System

Panasonic AW-UE160 4K PTZ Camera for an era of enhanced creativity and the pursuit of visual expression

Features

Uncompromising shooting performance and operability.

Realize next-generation video production with various shooting methods and functions.

Ease of use and versatility reduce the stress of shooting on-site.

How to shop TAX free in Singapore

Reviews

Related products

BirdDog P400 4K Full NDI with Sony Sensor

BirdDog P110 Full NDI PTZ Camera

BirdDog X1 Ultra 4K NDI PTZ Camera with 12x Zoom

Panasonic AW-UE40 4K PTZ cameras with HDMI Connectivity

Panasonic AW-UE50 4K PTZ cameras supports 3G SDI, HDMI, and IP output.
