Panasonic AW-UE100 4K PTZ with NDI Professional HDR Integrated cameras System
- Supports a wide variety of IP data transfer protocols
- Supports 4K 60p shooting and 12G-SDI output
- Includes a wide-angle lens with a 74.1° field of view
- 24x optical zoom
- Supports FreeD for building AR/VR systems
| Weight | N/A |
|---|---|
| Choose from Variants |
Black ,White |
Description
Click to rate this post!
[Total: 10 Average: 4.6]
Panasonic AW-UE100 4K PTZ Camera with NDI Professional Integrated Camera System
Panasonic AW-UE100 4K PTZ produces high-quality 4K 60p/50p with 12G SDI output, supports NDI and is built with a 1/2.5-type MOS sensor Shooting with 24x optical zoom.
In consideration of producing a high-quality video production with a limited number of crew, the Panasonic AW-UE100W/K ( known as AW-UE100 ) PTZ 4K Professional HDR Integrated Camera System is the most sought-after video production tool designed for the next highest level of video production.
When the system is up and running, you need only a handful of the crew to control and operate the overall system. Thus great savings in manpower cost.
This is particularly true in large events where the deployment of human resources is limited.
One of the key features of the AW-UE100W/K is its high-quality 4K 60p/50p shooting. This is made possible by the camera’s 1/2.5-type MOS sensor, which delivers stunning images with vivid colors and sharp detail.
The camera also features a 24x optical zoom and a 74.1° horizontal angle of view, making it easy to capture wide-angle shots as well as detailed close-ups.
The newly-developed high-precision Direct Drive motor also helps to ensure smooth and precise pan and tilt movements.
Besides its high-quality image, the AW-UE100W/K also has several functions designed to make video production easier and more efficient.
The camera’s Electronic Image Stabilization (EIS) helps to correct for roll direction, which can be especially useful when shooting from a moving vehicle or platform.
The camera’s FreeD support allows for the construction of AR/VR systems, making it a valuable tool for creating immersive experiences.
The camera is also compatible with the IT/IP platform “KAIROS,” which enables users to control and monitor the camera remotely over IP.
One of the most important aspects of video production is ensuring the stable and reliable transmission of video signals. The AW-UE100W/K supports both SRT and NDI, two leading protocols that allow for stable video transmission over public lines.
The SRT support ensures that video transmission is secure and reliable, while the NDI support provides high image quality and low latency with high bandwidth.
This makes it possible to stream live video directly to the internet, and broadcast via RTMP/RTMPS, eliminating the need for external encoders or additional equipment.

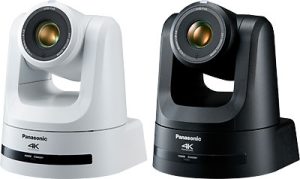

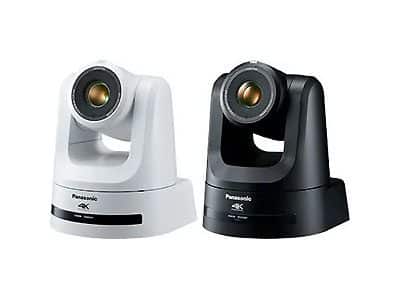

The AW-UE100W/K camera is available in two colors for your choice to merge with the surrounding.

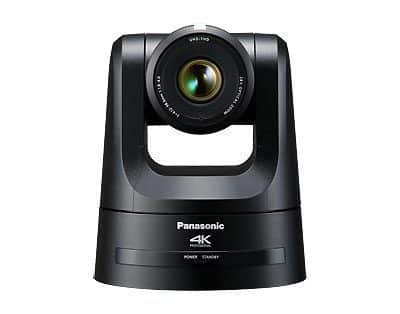

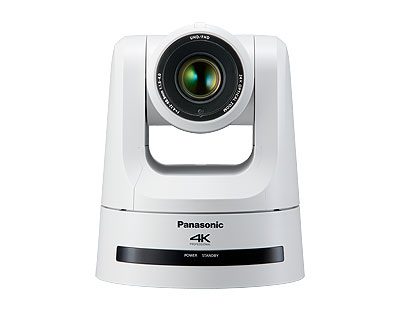

AW-UE100W in white and AW-UE100K in black.
In conclusion, the Panasonic AW-UE100W/K PTZ 4K Professional HDR Integrated Camera System is a versatile and powerful video production tool that offers a range of features that make it suitable for a variety of applications. With its high-quality 4K image, multiple video transmission protocols, and a range of functions designed to make video production easier, this camera is an excellent choice for videographers and video production professionals. Whether you’re streaming live events, creating immersive AR/VR experiences, or producing studio-quality video content, the AW-UE100W/K is the perfect tool for the job.
In addition to 3G-SDI and HDMI outputs, the 12G-SDI output is supported, allowing users to select the best output for a variety of applications such as studio production, live events, and event streaming.
The high-quality PTZ Camera is appropriate with a variety of video data transfer systems to support next-level video production.
1: NewTek, Inc. has created a new protocol called NDI that supports IP video production workflow. NDI is a registered trademark of NewTek, Inc. in the United States and other countries.
For example, NDI and NDI | HX represent high efficiency and low bandwidth, respectively, whereas NDI represents low latency and high bandwidth.
2: SRT: Secure Reliable Transport.
3: A protocol that outputs camera tracking data for AR/VR systems. Camera pan, tilt, zoom, and focus information required for uses such as AR/VR structure is output by the AW-UE100W/K.
4: Actual output format is UHD (3840 x 2160) 59.94p/50p.
Features:
- High-quality 4K Image
- High-Quality 4K 60p/50p Shooting
- 1/2.5-type MOS sensor
- Shooting with 24x optical zoom and a 74.1° horizontal angle of view
- Newly-developed high-precision Direct Drive motor
- Electronic Image Stabilization (EIS) for the roll direction
High-Quality 4K 60p/50p Shooting
3840 x 2160 4K output and 59.94p/50p shooting achieve extremely smooth video, even in live sports and other locations containing rapid movement.
1/2.5-type MOS sensor
Panasonic AW-UE100 4K PTZ Camera is equipped with a newly developed 1/2.5-type 4K MOS sensor and achieves high-resolution video.
Shooting with 24x optical zoom and a 74.1° horizontal angle of view
In addition, to 24x optical zoom, the inclusion of i.e. Zoom enables super-resolution zooming of up to 36x in HD Mode and 28x in 4K mode while maintaining high resolution.
Newly-developed high-precision Direct Drive motor
Operational ease, response time, and quietness during pan and tilt operations are all enhanced by the addition of a Direct Drive motor for the rotating section.
- operability –It is possible to move at speeds ranging from extremely slow 0.08° per second to extremely fast 180° per second (Fast2 Mode).
- Responsiveness- Excellent response time allows for accurate camera work, ensuring that the target area is captured.
- Quietness- It is also possible to shoot in circumstances where silence is required, such as concert halls and studios, because a noise level of NC25 or less is guaranteed.
Electronic Image Stabilization (EIS) for the roll direction
Electronic image stabilization (EIS) for the roll direction has been added in addition to optical image stabilization (OIS).
Stable images with reduced fuzziness can be captured even in locations that require specialized equipment, like rail systems or camera arms.
Various Functions
- Free D Support for the Construction of AR/VR Systems
- Cropping (+ Zoom) function
- Tally LED Limit
Free D 1 Support for Construction of AR/VR 2 Systems
Integration with AR/VR systems is available via Free D-compliant command output. Camera tracking information (pan/tilt/zoom/focus/iris) is output according to a rate of speed signal to facilitate the configuration of virtual systems without an encoder.
Cropping (+ Zoom) function
The ability to create full 4K output as well as a cropped portion of the video simultaneously at the same time. Up to three crop areas can be easily specified using the AW-RP150GJ Remote Camera Controller and the web browser screen. The addition of Cropping (+ Zoom) allows for a five-fold increase in the zoom level of cropped images.
Tally LED Limit
The setting, on the other hand, avoids disturbing professionals and allows for more candid filming by refusing to turn on the tally lamps of cameras installed on stages at events, particularly concert halls, and stages.
Wide Expandability
- High image quality and low latency with high bandwidth NDI support
- SRT support for stable video data transfer over public lines
- Direct Broadcast via RTMP/RTMPS
High image quality and low latency with high bandwidth NDI support
High bandwidth NDI transmits 4K video at a maximum of 250 Mbps and full HD video at a maximum of 125 Mbps, enabling high-quality, low-latency live video data transfer.
SRT support for stable video data transfer over public lines
Next-generation video transmission protocol SRT is suitable for unstable network circumstances with high security.
Secure: First, Encrypting video data before data transfer provides the highest level of security.
Reliable: Second, The packet loss recovery function, which automatically finds and retransmits packets lost during data transfer, ensures a fluid, stable video data transfer.
Transport: The versatile and flexible buffer management system enables stable video data transfer even in network circumstances with varying bit rates.
Direct Broadcast via RTMP/RTMPS
Direct video switching to real-time offerings, such as YouTube Live and Facebook Live, has always been possible thanks to RTMP/RTMPS. As a result, direct live streaming from the camera is also possible.
“RTMP: Real-Time Messaging Protocol. RTMPS: Real-Time Messaging Protocol Secure.”
To learn more about Related Products
Other Site
Indhu UC added on 14 Feb 2023
Specifications
Click to rate this post!
[Total: 10 Average: 4.6]
Specifications
| General | ||
|---|---|---|
| Power Requirements | 12 V DC (10.8 V to 13.2 V) (Supplied AC adaptor), 42 V to 57 V DC (PoE++ power supply) | |
| PoE++ | IEEE802.3bt standard: DC 42 V to 57 V (Software authentication (LLDP) is supported) |
|
| Current Consumption | 3.0 A (Supplied AC adaptor), 1.0 A (PoE++ power supply) | |
| Ambient Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) | |
| Allowable Humidity Ranges | 20 % to 90 % (no condensation) | |
| Storage Temperature | –20 °C to 50 °C (–4 °F to 122 °F) | |
| Mass | Approx. 2.2 kg (4.84 lb) (excluding cable cover, mount bracket) Approx. 2.3 kg (5.06 lb) (including cable cover, excluding mount bracket) |
|
| Dimensions (W x H x D) | 169.2 mm x 204.6 mm x 170.6 mm (6-21/32 inches x 8-1/16 inches x 6-23/32 inches) (excluding protrusions, cable cover, mount bracket) |
|
| Finish | AW‑UE100WP/AW‑UE100WPC/AW‑UE100WE/AW‑UE100WED: Pearl white AW‑UE100KP/AW‑UE100KPC/AW‑UE100KE/AW‑UE100KED: Black | |
| Controller Supported | AW-RP150, AW-RP60, AK-HRP1010GJ, AK-HRP1015GJ (Not available in some areas), AK-HRP250GJ | |
| Camera Unit | ||
| Imaging Sensors | 1/2.5-type 4K MOS x 1 | |
| Effective Pixels | Approx. 8,490,000 pixels | |
| Lens | Motorized Optical 24x zoom, F1.8 to F4.0 [f=4.12 mm (5/32 inches) to 98.9 mm (3‑29/32 inches); 35 mm (1‑3/8 inches) equivalent: 25.0 mm (31/32 inches) to 600.0 mm (23‑5/8 inches)] |
|
| Zoom | • Optical zoom: 24x • i.Zoom: UHD 28x, FHD 36x • Digital zoom: 1.4x, 2x |
|
| Conversion Lens | Not supported | |
| Angle of View Range | Horizontal angle of view: 74.1° (wide) to 3.3° (tele) Vertical angle of view: 46.0° (wide) to 1.9° (tele) Diagonal angle of view: 81.8° (wide) to 3.8° (tele) |
|
| Optical Filter | Through, 1/4, 1/16, 1/64, IR through (IR through is used as “Night mode”) | |
| Focus | Switching between auto and manual | |
| Focus Distance | Entire zooming range: 1200 mm (3.9 ft) Wide end: 100 mm (0.33 ft) |
|
| Color Separation Optical System | 1MOS | |
| Standard Sensitivity | F4, 2000 lx (When normal mode is selected) F5.6, 2000 lx (When High Sens mode is selected) |
|
| Minimum Illumination | 3 lx (F1.8, 59.94p, 50IRE, 42 dB, without accumulation) | |
| S/N | 60dB(typ) (When [Shooting Mode] is [Normal]) | |
| Horizontal Resolution | 1500 TV lines Typ (Center area) | |
| Gain Selection | Auto, 0 dB to 36 dB*1 Super Gain function equipped : 37 dB to 42 dB |
|
| Frame Mix*2 | Auto, 0 dB, 6 dB, 12 dB, 18 dB, 24 dB | |
| Electronic Shutter Speed | 59.94p/59.94i | 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 |
| 29.97p | 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 | |
| 23.98p/24p | 1/24, 1/48, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 | |
| 50p/50i | 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 | |
| 25p | 1/25, 1/50, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 | |
| Synchro Scan | 59.94p/59.94i | 60.00 Hz to 7200 Hz |
| 29.97p | 30.00 Hz to 7200 Hz | |
| 23.98p/24p | 24.00 Hz to 7200 Hz | |
| 50p/50i | 50.00 Hz to 7200 Hz | |
| 25p | 25.00 Hz to 7200 Hz | |
| Gamma | HD / FILMLIKE1 / FILMLIKE2 / FILMLIKE3 | |
| White Balance | ATW : 3200K, 5600K AWB : AWB-A / AWB-B VAR (selectable between 2000K and 15000K by designating a value) |
|
| Chroma Amount Variability | OFF, –99 % to 99 % | |
| Scene File | Scene1, Scene2, Scene3, Scene4 | |
| Output Format | SDI Output: 4K | 2160/59.94p, 2160/50p, 2160/29.97p*3, 2160/25p*3, 2160/24p*3, 2160/23.98p*3 |
| SDI Output: HD | 1080/59.94p, 1080/50p, 1080/29.97p*3, 1080/29.97PsF, 1080/25p*3, 1080/25PsF, 1080/23.98p*4, 1080/24p*3, 1080/23.98p*3, 1080/23.98PsF, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p |
|
| HDMI Output: 4K | 2160/59.94p, 2160/50p, 2160/29.97p*3, 2160/25p*3, 2160/24p*3, 2160/23.98p*3 | |
| HDMI Output: HD | 1080/59.94p, 1080/50p, 1080/29.97p*3, 1080/25p*3, 1080/23.98p*10, 1080/24p*3, 1080/23.98p*3, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p |
|
| Synchronization System | ||
| Internal/External synchronization (BBS/Tri-level sync) | ||
| Input | ||
| Input Connector | DC 12 V IN, G/L IN | BBS (Black Burst Sync), tri-level sync supported 75 Ω terminal (BNCx1) |
| MIC/LINE input | Compatible (SDI/HDMI/IP) AAC compatible (compatible with IP only) ø 3.5 mm stereo mini jack Input impedance: Approx. 10 kΩ (unbalanced) • During MIC input Input level: –40 dBV (0 dB=1 V/Pa, 1 kHz) Plug-in power compatible, supply voltage: 2.5 V ± 0.5 V • During LINE input Input level: –10 dBV • Input volume variable range: –36 dB to 12 dB (3 dB step) • Embedded audio output level: –12 dBFS • Sampling frequency: 48 kHz • Quantization bit rate: 24bit (SDI, HDMI), 16bit (IP) |
|
| Output | ||
| Video Output | HDMI | HDMI 2.0 connector 4:2:2/10bit • HDCP is not supported. • Viera Link is not supported. |
| 12G-SDI OUT | SMPTE 2082-1, SMPTE424M/SMPTE292M / 75 Ω (BNC x 1) • Level-A/Level-B supported |
|
| 3G-SDI OUT | SMPTE424M/SMPTE292M / 75 Ω (BNC x 1) • Level-A/Level-B supported |
|
| Input/Output | ||
| Input/Output Connector | LAN | LAN terminal for IP control and video transmission (RJ‑45) PoE++ power terminal (IEEE802.3bt compliant) |
| RS-422 | CONTROL IN RS-422A (RJ‑45) | |
| Pan-tilt Head Unit | ||
| Camera/Pan-tilt Head Control | IP connecting cable | LAN cable*5:(category 5e or above, straight cable), max. 100 m (328 ft) |
| AW protocol connecting cable | LAN cable*5:(category 5e or above, straight cable), max. 1000 m (3280 ft) | |
| Installation Method | Stand-alone (Desktop) or suspended (Hanging) | |
| Pan/tilt Operation Speed | Speed range: 0.08°/s to 60°/s (Normal mode) • 3 speed modes installed Normal: 60°/s, Fast1: 90°/s*7, Fast2: 180°/s*7 |
|
| Panning Range | ±175° | |
| Tilting range | –30° to 210°*8 | |
| Quietness | NC25 or less | |
| Supported Operating Systems and Web Browsers | ||
| Supported Operating Systems and Web Browsers | Windows | Microsoft Windows 10 Microsoft Edge Google Chrome |
| Mac | MacOS 10.13/Safari 13, MacOS 10.14/Safari 13 MacOS 10.15/Safari 13, MacOS 10.15/Google Chrome |
|
| iPhone / iPad | iOS Safari iPadOS |
|
| Android | Android OS Google Chrome |
|
| IP Streaming | ||
| Image Streaming Mode | JPEG (MJPEG), H.264, H.265, NDI|HX, High Bandwidth NDI | |
| Image Resolution | 3840×2160, 1920×1080, 1280×720, 640×360, 320×180 | |
| Image Transmission Setting (JPEG) | Frame Rate: Maximum 30 fps Image quality (Fine / Normal) |
|
| Image Transmission Setting (H.264) | Transmission Type | Unicast port (AUTO) Unicast port (MANUAL) Multicast port |
| Transmission Priority | Constant bit rate Frame rate Best effort |
|
| Frame Rate | [60Hz] 5fps / 15fps / 30fps / 60fps (UHD: 30fps, 60fps) [50Hz] 5fps / 12.5fps / 25fps / 50fps (UHD: 25fps, 50fps) |
|
| Max Bit Rate | 512kbps / 768kbps / 1024kbps / 1536kbps / 2048kbps / 3072kbps / 4096kbps / 6144kbps / 8192kbps / 10240kbps / 12288kbps / 14336kbps / 16384kbps / 20480kbps / 24576kbps / 32768kbps / 40960kbps / 51200kbps / 76800kbps |
|
| Image Transmission Setting (H.265) | Transmission Type | Unicast port (AUTO) Unicast port (MANUAL) Multicast port |
| Frame Rate | [60Hz] 30fps [50Hz] 25fps |
|
| Max Bit Rate | 8192kbps / 12288kbps / 25600kbps / 51200kbps / 76800kbps | |
| Audio Compression Type | AAC-LC, 48 kHz / 16 bit / 2ch | |
| Supported Protocol | IPv6 | TCP/IP, UDP/IP, HTTP, HTTPS, DNS, NTP, DHCPv6, RTP, MLD, ICMP, ARP, RTMP, SRT, SNMP, MPEG2-TS over UDP |
| IPv4 | TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP/RTCP, DHCP, DNS, DDNS, NTP, IGMP, ICMP, ARP, RTMP, RTMPS, SRT, SNMP, MPEG2-TS over UDP | |
| Other Function | ||
| NDI support | NDI|HX version 2 : Included as standard High Bandwidth NDI: Included as standard |
|
| Tally LED Display Color | red / green | |
