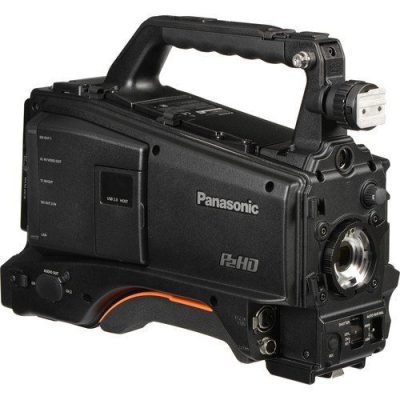

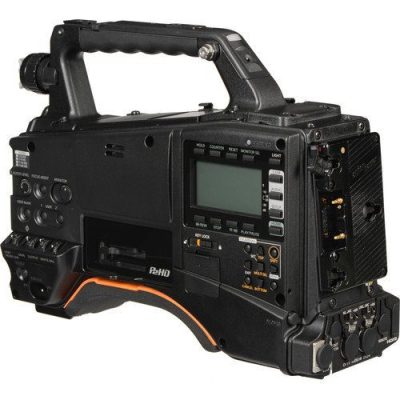

Panasonic AJ-PX380G 1/3″ AVC-ULTRA Shoulder Mount Camcorder (Body Only)

Panasonic AJ-PX380G AVC-ULTRA Shoulder Mount Camcorder (Body Only)

The shoulder-type Panasonic AJ-PX380G Camera Recorder raises broadcast picture quality and enhances network-based workflows, while adding compact, lightweight mobility and low-cost operation. Its 1/3-type 2.2-megapixel 3MOS sensor achieves high sensitivity and high S/N. The Panasonic AJ-PX380G Broadcast-level AVC-ULTRA codecs (AVC-Intra, AVC-LongG, and AVC-Proxy) further enhance recording quality.

You can select the most suitable codec for your purpose, from high quality 4:2:2 10-bit recording to low-rate HD streaming and FTP transmission.

The AJ-PX380G also supports 1080/59.94p,50p acquisition and 3G-SDI output. The AJ-PX380G comes equipped with a P2 card slot*2 and microP2 card slots. Network functions** support wired LAN, wireless LAN, and 4G/LTE connectivity.

New workflow functions include Wireless Preview/Remote with PC/Mac, tablet device or smart phones, Rec during Uploading, and On-Air Streaming. An SDI input and wireless slot are also featured, providing all-round networking support.

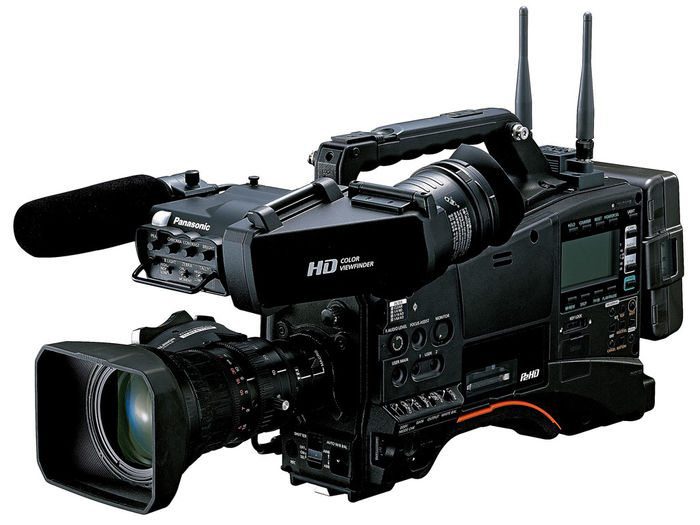

The Panasonic AJ-PX380G also comes in two variations, one consisting of only the camera recorder,*3 and the other bundled with a FUJINON 17x Zoom Lens and AG-CVF15G Color HD Viewfinder.

*1: AVC-ULTRA is the name of Panasonic’s professional video codec family. The AJ-PX380G does not support all of the formats included in the AVC-ULTRA family.
*2: The AJ-P2AJ1G memory card adaptor cannot be used.
*3: This model is not available in some regions.
** For details, refer to “Notes Regarding Network Functions” on the back page.
The use of DCF Technologies is under license from Multi-Format, Inc.

Key Features:

Ultra speed Various network functions

• File transfer: P2 Cast, FTP
• Streaming: QoS, LiveU direct connection

Ultra efficiency AVC ULTRA codec. Various memory cards

• Longer recording time by AVC-LongG
• P2x1 slot, microP2 x2 slots

Ultra lightweight Light weight for camera person health

• Lightweight 2.7kg (body)
• For employee satisfaction, union issue

Ultra Simple Studio Camera Adapter is not necessary

• Simple connection with two SDI cables
• No need to buy special cables

Other Features:

• 1080/59.94p, 50p recording
• SDI-IN (1.5G) and Two simultaneous SDI outputs (One 3G-SDI)
• UniSlot
• Dual codec function enables MOV sub recording
• Kit includes Functional View Finder and Traditional type lens

Broadcast-Quality 2.2-Megapixel 3MOS Sensor and AVC-ULTRA Codecs

• Featuring the 2.2-megapixel 1/3-type 3MOS image sensor, this advanced camera recorder achieves high F11 (59.94 Hz)/F12 (50 Hz) sensitivity and excellent picture quality.
• 1080/60p*1 supported. 1080/60i,*1 24p,*1 30p,*1 720p multi-format HD and SD recording. Switchable between 59.94 Hz and 50 Hz for 50i, 50p, and 25p support.
• Features the AVC-ULTRA*2 multi-codec family, including the popular AVC-Intra100/50, the AVC-LongG50/25 with low-bit-rate Full-HD (1920 x 1080) 4:2:2 10 bit picture quality, and the AVC-LongG12 (8 bit 4:2:0) for extended recording.
• The AJ-PX380G Dual-codec recording with the low-bit-rate AVC-Proxy further enhances network operation.
• The AJ-PX380G has Two standard-equipped microP2 card slots dramatically reduce media costs and enable Simultaneous Rec. and Hot-Swap Rec. One P2 card slot*3 is also equipped.

Versatile Network Functions** Include FTP Data Transfer and Streaming

• Wired LAN, wireless LAN, and 4G/LTE connectivity. FTP server uploading and Streaming are supported.
• A new function, Rec during Uploading, automatically uploads recorded clips to an FTP server or cloud server. Uploading is done in the background, and recording/playback continues during the transfer.
• On-Air Streaming can also be conducted while recording. In addition to selecting from 800 kbps to 6 Mbps (Full-HD), a QoS (Quality of Service) mode is available for streaming. It automatically controls the bit rate and frame rate to match the network conditions, for stable streaming performance.
• When connected by wireless LAN, recorded clips can be previewed and metadata can be checked and edited with a PC/Mac, smartphone or tablet device.
• P2 ROP App for iPad, is provided, enabling an advanced wireless camera remote function.
