LiveStream Studio HD1710 Supercharged rack-mount switcher
- Up to 4 screens
- 2x Removable 2TB Drives
- SSD System for Fast Boot
- Removable Rack Mount Slide Rails
- 64 GB DDR3 RAM
Description
Click to rate this post!
[Total: 0 Average: 0]

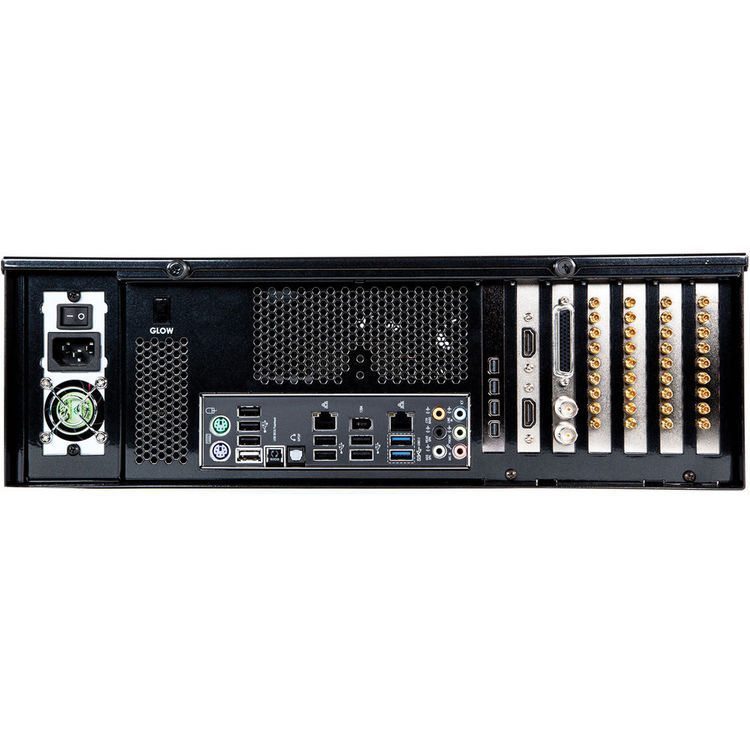

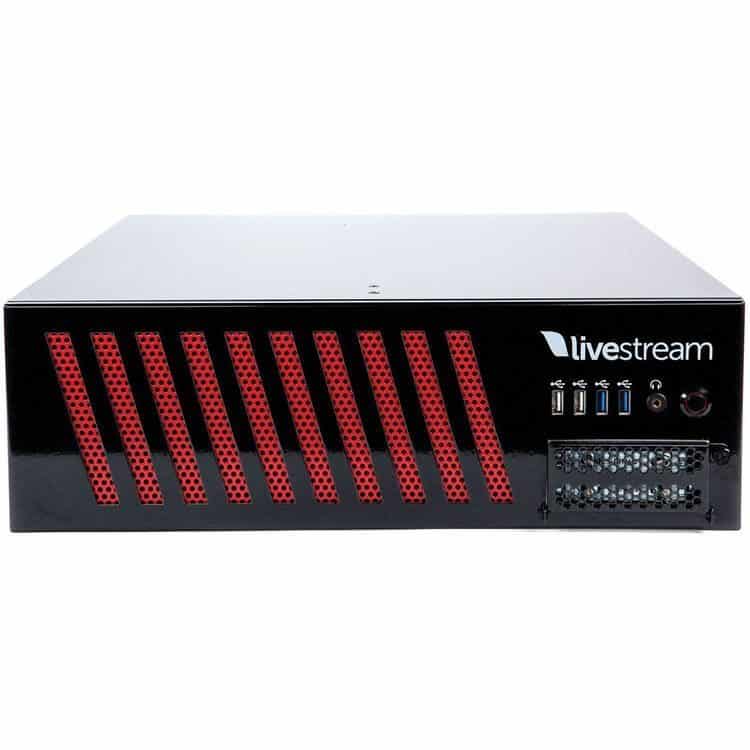

LiveStream Studio HD1710 Supercharged rack-mount switcher
Perfect for control rooms, production trucks, venue and studios where a rack mountable form factor is a must. Studio HD1710 combines big switcher production capability with an affordable price. Full Studio Surface track and core modules included!
Features
- 17x SDI inputs
- 1x SDI / HDMI output
- 10x Remote camera tracks
- 2x Media tracks
- 3 GFX tracks
- Dedicated analogue audio in via Studio (total 2)
- 60 hours of broadcast quality recording
- Up to 4 screens
- 2x Removable 2TB Drives
- SSD System for Fast Boot
- Removable Rack Mount Slide Rails
- 64 GB DDR3 RAM
- Front-panel USB / headphone
Specifications
Click to rate this post!
[Total: 0 Average: 0]
|
HD-SDI Inputs (Streaming Only)
|
17
|
|---|---|
|
Embedded Audio Input
|
17 Stereo or 136 Mono Inputs
|
|
Audio Monitoring (1/8″)
|
1
|
|
HDMI Inputs
|
1
|
|
HDMI Outputs
|
1
|
|
Standard Definition SDI Output
|
1
|
|
Composite Input (BNC)
|
1
|
|
Composite Output (BNC)
|
1
|
|
S-Video Input
|
1
|
|
S-Video Output
|
1
|
|
Component Input
|
1
|
|
Component Output
|
1
|
|
Analog Audio (1/8″) Input
|
1
|
|
Analog Audio (1/8″) Output
|
1
|
|
Analog Audio (1/4″) Input
|
2
|
|
Analog Audio (1/4″) Output
|
2
|
|
AES/EBU Input
|
2
|
|
AES/EBU Output
|
2
|
|
Additional AES/EBU or Analog Audio Output
|
2
|
|
Tom Bihn Carry Bag
|
Not Available
|
|
Livestream Studio Surface (Core Module)
|
Included
|
|
Livestream Studio Surface (Track Module)
|
Included
|
|
Livestream Studio Keyboard
|
Included
|
|
Media Sources
|
Integrated digital media sources for video & graphics playback.
2 DDRs (video clip playback with built-in transcoder), 3 GFX (graphics), 2 Color Bars / Background Color |
|
Remote Camera
|
2x Remote Camera support for Livestream Broadcaster, Windows computer, iOS, Android, Google Glass over local Wifi or ethernet network
|
|
Format Converter
|
Built-in broadcast quality format converter for every input with automatic format detection. Allows use of any camera and video source without matching video formats
|
|
Built-In Multiview
|
On-screen full field rate multiview of all live inputs, Preview, Program Out, GFX and DDR, Audio PPM overlay with peak hold feature on all inputs and outputs. Resizable layout allowing hiding of all controls to maximize multiview screens.
|
|
External MultiScreens
|
4x Extended Screen outputs using Mini Display Port. *
|
|
Video Switcher / Mixer
|
Mixer & Effects Bank (M/E) with no upstream keyer. transitions : SMPTE Wipe, Cut & Fade (Auto transition with adjustable duration in frames, manual via on-screen T-BAR or keyboard shortcuts)
|
|
Graphics Downstream Key
|
3x Graphics DSK (downstream key) channels. One channel for GFX1, one channel for GFX2, and one channel for GFX3. Independent or locked transition controls (fade/cut). Preview on multiview
|
|
Graphics & Titling
|
Load JPG or PNG files (full transparency support with PNG files). Add text (set position/font/size/color) over any loaded image file within the GFX1, GFX2, or GX3.
|
|
Video clip Playback
|
2 Media Players – Eject/Load clip. Play Pause/stop. Audio/Video Scrubber. Timecode indicator. Seek to timecode. Mark In/Mark Out. Loop. Auto-play on transition
|
|
Recording
|
MPEG with uncompressed audio. Interlacing and timecode support. Full compatibility with Blackmagic Design Media Express and Adobe Premiere.
|
|
Recording Capacity
|
~60 hours at 1080i (Using 3 1 TB built in Hard Drive with recorder set to record at 100Mbps MPEG AVI)
|
|
Live Streaming
|
HD live streaming via Gigabit/100/10 built-in Ethernet. Presets in up to HD 720p. Multiple simultaneous bit-rates, including mobile quality for playback over 3G on mobile devices (iPhone/Android). Integrated live streaming to Livestream or any other RTMP compatible service including Ustream, YouTube Live, Akamai, Wowza Media Server.
|
|
Audio Mixing
|
Integrated multi-channel audio mixer for internal and external audio sources, outputs, stream and headphones.Incorporated video switcher follow feature with audio crossfade support when fading two video sources.
|
|
Supported Formats
|
HD: 720p50, 720p59.94, 720p60, 1080PsF23.98, 1080p23.98, 1080PsF24, 1080p24, 1080PsF25, 1080p25, 1080PsF29.97, 1080p29.97, 1080PsF30, 1080p30, 1080i50, 1080i59.94 and 1080i60
SD: 625/25 PAL, 525/29.97 NTSC, 525/23.98 NTSC |
|
Playback Media Formats
|
GFX: JPEG or PNG image files with transparency support.
DDR: AVI MJPEG with uncompressed audio, DV Video, WMV (7/8/9), H.264 (.mov & .avi), MPEG4 Part 2 (.mov & .avi), MPEG4 V1/V2 (.mov & .avi), AAC, MP3 |
|
Record Media Formats
|
AVI MPEG with uncompressed audio
|
|
Operating System
|
Windows 7 Professional (64 bit)
|
|
CPU
|
Intel “Sandy Bridge-E” Core i7 3930K 3.2 GHz Six-Core processor, 12MB L3 cache, 130W, Socket LGA 2011
|
|
Graphics Card
|
ATI Firepro™ 2460 Multi-View Professional Graphics
PCI Express 2.0 Graphics card quad output |
|
Storage
|
Dual quick-time front removable (2) x WD Red 1TB/7200 RM ISO recording drives, mid-plane, access door, receiver mounting kits. 1 internal fix mounted WD Red 1TB/7200 RM ISO hard drive & 1 internal fix mounted 120GB SSD OS / application drive.
|
|
RAM
|
64 GB 8 total DDR3 1600Mhz Non-ECC 16GB X 4 Dimm configuration
|
|
Processing
|
Video: 4:2:2, 10 bit Color (REC 601, REC 709) Audio: 48
kHz, 24-bitrEF IN/Genlock (Requires genlocking the two Blackmagic Design cards via two separate connectors |
|
Built-in Video Input/Output Cards
|
4 Blackmagic Design DeckLink Quad (PCI)
Blackmagic Design DeckLink Studio (PCI) |
|
Included in the box
|
Power cable 16 BNC Female to DIN 1.0/2.3 RG-59 SDI Cable (for SDI inputs on Blackmagic Design Quad card), Livestream Studio™ Keyboard, Mouse, Livestream Mousepad, Rack-mount slide rail kit, Rubber Feet, Blackmagic DeckLink Studio Breakout Cable, Blackmagic Design cards, documentation and driver CD. Warranty.
|
|
Physical Dimensions
|
13.64″ (D) x 16.75″ (W) x 4.75″ (H)
~22.6 lbs |
|
* External screens not included.
|
|
