JVC KY-PZ400NBE Robotic HD PTZ IP Production Camera
USD 2,588.00 excl. Tax
| Weight | 5 kg |
|---|---|
| Choose Product Variant |
KY-PZ400NBE ,KY-PZ400NWE |
Description
Click to rate this post!
[Total: 0 Average: 0]

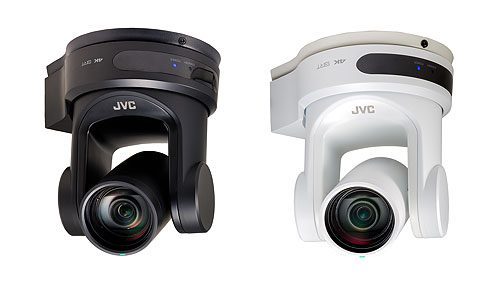

JVC KY-PZ400NBE Robotic 4K PTZ IP production camera with NDI|HX and SRT (black)/(white)
JVC KY-PZ400NBE, JVC’s first robotic pan, tilt, and zoom 4K video production camera, the KY-PZ400 offers NDI®|HX, SRT, and supports POE for a true ‘One Wire Solution’. Ideal for studio or field use, this PTZ model enables reliable remote IP production for education, corporate, live events, and sports applications.
The new HD KY-PZ400NBE models are also available in black or white variations.
Features of KY-PZ400NBE Camera:
- 1/2.5-inch CMOS sensor (8.51 million pixels)
- Can memorize 255 preset settings and positions
- Wide 71° optical zoom lens with 12x zoom ratio (4.4mm ~ 52.8mm, F1.8 ~ F2.6)
- Multiple protocols streaming SRT, RTSP, RTMP, RTMPS
- Powerful encoding engine supports H.265, H.264 & MJPEG
- Simultaneous high (4K) and low-resolution encoding with main and substream
- LAN Connector supports Power over Ethernet (POE)
- Compatible with RM-LP100 controller using JVC protocol and API
- 3G-SDI and HDMI 2.0 (4K) digital outputs
- Remote control via RS232, RS485 and JVC IP protocoll
- Ships with IR controller, mounting bracket, power adapter & RS232 cable
- NDI|HX support
Specifications
Click to rate this post!
[Total: 0 Average: 0]
Camera Front-End Specifications
| Image Sensor (inch) | 1/2,8 Inch CMOS |
| Number of Sensors | 1 |
| Mega Pixels | 8.51 |
| S/N in dB | 41 |
| Min. Illumination | 0.5 Lux |
| Shutter speed | 1/30 to 1/10000 |
Optical Specifications
| Lens mount | Internal |
| Optical Zoom X times | 12 |
| Dynamic Zoom x times | 16 |
| Lens F Number | 1.8 to 2.6 |
| Lens ratio from / to | 4.4mm to 52.8mm |
| Auto Focus | Yes |
PTZ Head Features
| PAN Angle in degree +/- | 170 |
| PAN Speed with AC Adapter max degree/sec. | 100 |
| PAN Speed with POE+ max degree/sec. | 100 |
| TILT Angle in degree | -30 to 90 |
| TILT Speed with AC Adapter max degree/sec. | 69.9 |
| TILT Speed with POE+ max degree/sec. | 69.9 |
| Preset Positions | 255 |
Recording Formats
| Encoder | H.265/H.264/MJPEG |
| Resolution 3840 x 2160 | Yes, 29.97p, 25p , 23.98p |
| Resolution 1920 x 1080 | Yes, (60p/50p/30p/25p/24p / 1080i60/i50 |
| Resolution 1280 x720 | Yes, 60p/50p/30p/25p/24p |
| Audio Channels | 2 |
IP Section of the Product
| IP Main Connection | Ethernet LAN RJ45 1000Base-T with POE+ |
| IP Connection supports | Ethernet |
| IP Features Live-Streaming | Yes |
| IP Features Remote | Yes, via RM-LP100 or Web-Browser no apps needed |
| Live-Streaming Bitrates | 1~60 Mbit/s |
| Live-Streaming Protocols | NDI|HX, SRT, RTMP, RTMPS, RTSP |
| Live-Streaming Single cast | Yes |
| Live-Streaming Multicast | Yes |
IN-OUT´s Connections
| OUT HDSDI | Yes, 3G HDSDI |
| OUT HDSDI Format max. | 1080/60p,50p |
| OUT HDMI | Yes |
| OUT HDMI Format max. | 2160/30p,25p |
| OUT Audio Line | Yes, 1 times 3.5mm mini jack |
| IN Audio AUX | Yes, 1 times 3.5mm mini jack |
| PTZ Serial Interface RS-232C in/out | Yes, over 8 PIN mini DIN |
| PTZ Supported Protocols | Serial, PelcoD, IP JVC, IP others |
Power and Enviroment Spec´s
| Power DC | Yes, 12 Volt or 42V to 57V POE+ over Network LAN |
| Power consumption | 12W |
| Operation Temperature in Celsius degrees | 0 to 40 |
| Storage Temperature in Celsius degrees | -40 to 60 |
Mechanical Informations
| Weight in kg | 1.7 |
| Measurements (WxHxD) in mm | W 142 x H 164 x D 169 |
In The Box
Click to rate this post!
[Total: 0 Average: 0]
- AC/DC adapter
- Cable 1
- Cable 2
- Instructions
- Remote Control unit
- Ceiling mount bracket
