FeelWorld P7S 7″ 2200nit Daylight Viewable Camera Field Monitor

Feelworld P7S 7 Inch 2200nit Daylight Viewable Camera Field Monitor Rugged Aluminum Design 3G-SDI 4K HDMI Input Output 1920X1200 IPS Panel

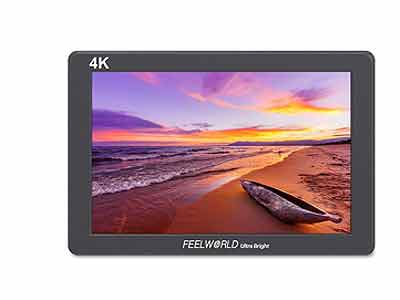

Image Quality to Fuel Your Creative Flow

Feelworld P7S provides a 7″ 8-bit IPS screen with 1920×1200 resolution, 323ppi pixel density, and professional color calibration to overcome natural LCD color drift. The P7S displays sharper images, better text clarity, and better color reproductions regardless of your shooting conditions. The P7S has a wide viewing angle so that everyone on set can review the action.

High-brightness 2200nit for Outdoor Shooting

Feelworld P7S ultra-high brightness monitor uses the “golden size” 7-inch panel. The P7S monitor not only has the resolution and pixel density to make every shot look amazing, but the high bright 2200nit screen at almost 5 times the brightness of conventional field monitors lets you shoot outdoors without reflections washing out your image. This makes it a great choice for gimbals, Steadicam, and director’s monitors, delivering a crisp image without the bulk and viewing angle restrictions of a sun hood.

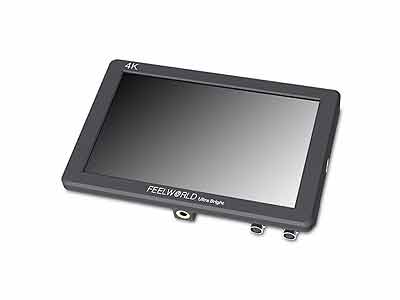

Aluminum Metal Frame: Lightweight, durable construction

The frame of the Feelworld P7S is made from aircraft-grade aluminum, which means you get an incredibly sturdy metal that barely adds any weight to your camera. It’s also comfortable enough and still light enough, which makes it perfect for bracing the mounting points.

Simple, Practical Design

It’s no surprise that the P7S’s simple, practical design makes it the ideal choice for filmmakers, cinematographers, photographers, and videographers due to its size and weight for field production. It’s easy to add professional monitoring to any SDI or HDMI camera with Feelworld P7S. Also, it’s easy to connect, and easy to mount, with a slim and simple design.

True Color · Professional Color Calibration Use Rec. 709 color standard

Feelworld uses the professional Rec.709 HD color standard, and color calibration technology, With professional instrument calibration at the factory, it can achieve monitor calibration efficiently and get accurate color reproduction easily, not distort the color, and show the real image when you shoot video.

Accurate Color Reproduction

Feelworld monitor supports ITU standards and HD video Rec.709 standard consistent color space, advanced image processing technology so that the image clearly presented, the color is extremely natural, to ensure accurate color reproduction, to reproduce the physical nature of shooting, enabling users to accurately evaluate the quality of various input video signals.

Intuitive Controls and Menus

The menu controls are intuitive and easy to use. On the top of the monitor, you’ll get the full button layout. There are three different feature buttons that are programmable to the various features that you use the most. Maybe you could set one of the shortcut keys to the image flip function so that the screen can be flipped over quickly when shooting upside down.

When the menu is not displayed, press the < button for the volume shortcut, then press the < and > button to adjust the volume; press the> button for the backlight shortcut, then press the < and > button to adjust backlight brightness.

The monitor will automatically save the parameters you have previously set, and keep the original settings when you turn it on next time. It does not need to be reset, which is convenient and simple.

Wide Camera Compatibility Connect to professional cameras, camcorders, and DSLRs

The compact design of the P7S includes 4K HDMI and 3G-SDI, so you can connect them to virtually any DSLR, prosumer, or professional camera. The HDMI connection is compatible with up to 4Kp30, and the SDI connection has compatibility with up to 3G, supporting almost all signals. You can also monitor audio using the 3.5mm stereo headphone jack or, the built-in speaker.

3G-SDI and 4K HDMI Loop-out

The P7S has 3G-SDI, and 4K HDMI in and out, allowing it to not only display live signals but also send them out to other monitors simultaneously. It’s the ability to display live pictures on multiple displays at once while still maintaining the original video quality.

Connect to the wireless transmitter

Transmission to film crew director monitoring at the same time. Without the cable, it would be more flexible to transition between scenes effortlessly for outdoor shooting.

Connect to Director Monitor

Display live pictures on multiple displays simultaneously.

DC Output

The FEELWORLD P7S is an ideal camera-top monitor for DSLR and mirrorless camera shooters. Because the P7S provides auxiliary power, allowing shooters to power their cameras. With a battery adapter cable (Optional), the P7S extends camera run-time, while providing a more usable display. Plus, you can monitor audio using the 3.5mm stereo headphone jack.

Mounting Point

The Feelworld P7S features standard 1/4” mount points (left, right, and bottom) for attaching it to cameras and rigs. When you are using the upside-down installation, you can turn on the image flip function to maintain the correct orientation.

Continuous Power Plug it in or go mobile

For power, there’s a 12V DC input and an F970 battery plate (standard). You could connect the 12V DC input and get continuous power, or you could run it off of Sony-compatible F970 rechargeable batteries. You can also choose a D28S/D54, LP-E6, or U60 battery plate to install other different types of batteries for power supply.

The P7S does not include a battery and needs to be purchased separately. Since the P7S is super bright, its high consumption: is ≤18W. Please note that the battery usage times for different capacities are different.

Choosing a larger battery capacity can extend the monitor’s operating time, and the Sony F970 can use about 2–3 hours. When you use the P7S indoors, you can extend battery life by lowering the backlight of your monitor. For the power adapter (optional), use a DC7-24V output with a power supply greater than 18W, such as a 12V / 3A power adapter.
