DataVideo TLM-170VR 17.3″ Full HD Desktop Monitor
USD 1,710.00 excl. Tax
Product Highlights:
- Supports multiple input and output
- SDI & HDMI cross conversion
- Audio Level meter
- 1920×1080 panel resolution
- Supports 3G/HD/SD
| Weight | 2.5 kg |
|---|
Description
Click to rate this post!
[Total: 0 Average: 0]

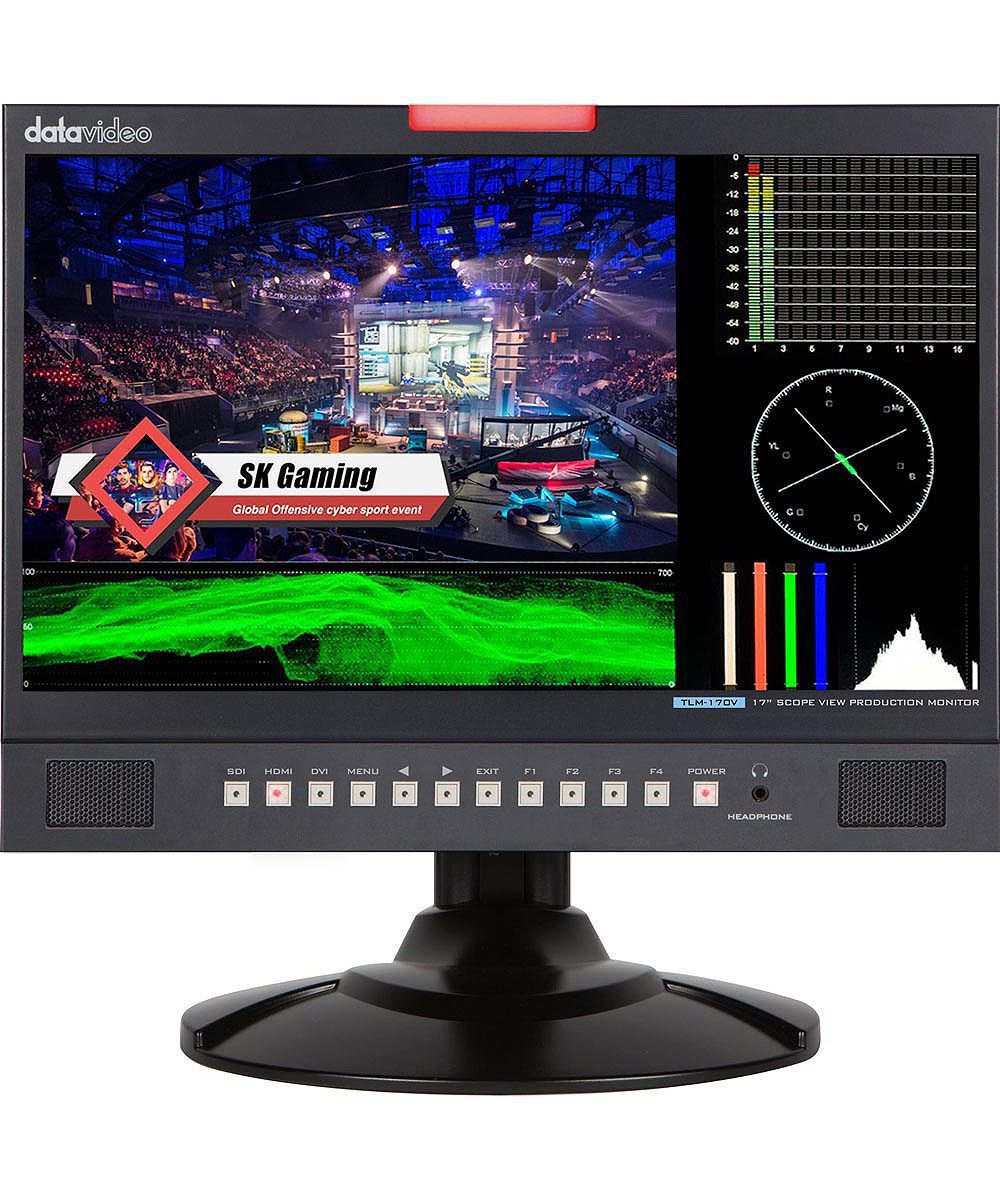

DataVideo TLM-170VR 17.3″ Full HD desktop monitor
DataVideo TLM-170VR Supports 3G/HD/SD 1920×1080 panel resolution.
Supports multiple input and output configurations
1 x 3G/HD/SD-SDI, 2 x HDMI inputs; 1 x 3G/HD/SD-SDI, 1 x HDMI loop through
SDI, HDMI cross conversion
The TLM-170V can cross convert SDI, HDMI video signals, makes it a great fit to all the video production workflow.
Various built-in functions
Support column (YRGB peak), time code, waveform, vector scope & audio level meter, peaking, zoom, pix to pix, underscan, check field, tally light
Specifications
Click to rate this post!
[Total: 0 Average: 0]
|
Screen
|
17.3″ LED Backlit
|
|---|---|
|
Chassis
|
7RU Rack Mount
|
|
Resolution
|
1920×1080
|
|
Viewing Angle
|
(H) +89/-89°
(V) +89/-89° |
|
Luminance/Contrast
|
300cd/m²
700:1 |
|
Video Inputs
|
1x 3G/HD/SD-SDI
2x HDMI |
|
Loop Through
|
1x 3G/HD/SD-SDI
1x HDMI |
|
Supported Input Resolutions
|
1080p(23.98/24/25/29.97/30/50/59.95/60Hz)
1080i(50/59.94/60Hz), 720p(50/59.94/60Hz), 576i(PAL), 480i(NTSC) |
|
Aspect Ratio
|
16:9, 4:3
|
|
Tally LED
|
Live (Red)
Cued (Green) |
|
Audio In/Out
|
2x Speaker
1x Headphone Jack |
|
Special Features
|
SDI and HDMI cross conversion,
Support column (YRGB peak), time code, waveform, vector scope & audio level meter, peaking focus assist, zoom, pix to pix, underscan, check field |
|
Dimension (LxWxH)
|
403 x 305 x 41 mm
|
|
Weight
|
4.5 kg
|
|
Operating Temp. Range
|
0~40 °C
|
|
Power
|
DC 10-18V, 32W
|
