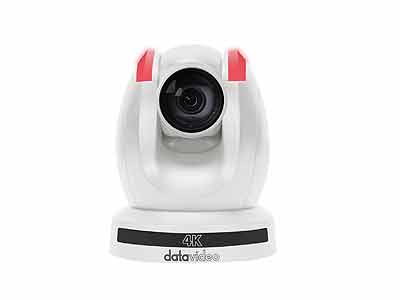

DataVideo PTC-300NDI 4K NDI PTZ Camera
USD 2,550.00 excl. Tax
Product Highlights:
- Broadcast Quality 4K Resolution
- Built-in 1/1.8″ CMOS sensor
- 20x Optical Zoom and 16x Digital Zoom
- Low Noise in Low Light
- Supports simultaneous HDMI 2.0 and IP output
- Multiple Network Protocol with Dual Stream Function
- Compatible with Various Controller
| Weight | 4 kg |
|---|
This product has been discontinued.
Description
Click to rate this post!
[Total: 2 Average: 5]
DataVideo PTC-300NDI Brand New Professional 4K PTZ Camera with NDI feature
In this paragraph, Datavideo is introducing the NDI 4K50/60p PTZ camera PTC-300NDI, a professional NDI PTZ camera helps you capture your event. PTC-300NDI can be easily controlled via traditional RS-422 serial port, or IP remote control via DVIP (Datavideo proprietary protocol), Sony VISCA over IP, or any NDI controller. DataVideo PTC-300NDI 4K NDI Camera is the Broadcast Quality 4K Resolution With a built-in 1/1.8″ CMOS sensor, supports resolution up to 2160p 50/60.
The PTC-300NDI 4K NDI cameras support dual streaming output for A/V market applications, you can easily stream to Facebook (RTMPS), YouTube, and the DVR cloud.
Superior Optical Performance
Datavideo PTC-300NDI camera has 20x Optical Zoom and 16x Digital Zoom with the f1.58 wide open aperture.
PTZ View Assist: Control up to four cameras
The camera control app is tailored for the Datavideo PTZ camera series. It can monitor the live streaming video from PTC-140, PTC-280, PTC-280NDI, and PTC-300 series. In addition, the app is able to decode the live streaming via RTSP, SRT, and NDI (only RTSP is available now), Easily monitor the live streaming video and set up the parameters promptly in one application.
Datavideo provides iOS and Android versions, which you can download on Google Play and App Store for free. Multiple Network Protocol with Dual Stream Function Support RTSP and RTMPS protocols, easy to stream directly to two different CDN platforms and Datavideo dvCloud as well.
Compatible with Various Controller
Control real-time pan, tilt, and zoom camera movements with Datavideo PTZ View Assist APP, RMC-300A, and RMC-180 series. With configurable preset positions supported. RS-422 and ethernet to use DVIP or VISCA over IP commands to integrate with larger control systems.
Green and red lights tally to show the preview and program status for broadcast applications.
Power over Ethernet
Datavideo PTC-300NDI supports PoE for easy installation. No need to find local power outlets or hire an electrician to install outlets wherever you want to mount your camera. Simply run a single CAT 6 cable to power your PTC-300NDI.
Supports H.264/H.265 Video Compression
Support compression of resolution up to 3840×2160 with frame up to 59.94, 60fps, and the second channel 1280x720p with 30fps compression.
One Ethernet Cable with NDI | HX Technology
That there is no need for multiple cables and a complicated setup. The single-wire concept helps you to transfer video, audio, power, tally, and control over only one Ethernet cable. Power Over Ethernet (PoE) functionality allows you to transmit all the information and power over only one cable. NDI is a registered trademark of Newtek, Inc.
NDI Virtual Input
Present PTC-300NDI as the video input source to video streaming applications Skype, GoToMeeting, WebEx, Zoom, and more.
Dark or Light Body
Datavideo PTC-300NDI is also available in dark gray or white to remain inconspicuous in permanent setups.
Build a reliable SRT live streaming workflow with all Datavideo products
Datavideo’s wide range of encoders, cameras, and hand-carry switchers are fully supported by SRT and DVR cloud. Datavideo encoders and dvCloud provide reliable streams over unreliable networks.
After your video stream reaches dvCloud, you can depend on dvCloud’s reliable, high-bandwidth network to deliver the stream to your favorite destinations, like Facebook and YouTube.
Related Products
Specifications
Click to rate this post!
[Total: 2 Average: 5]
| General Specifications | |
| Model Number | PTC-300NDI |
| Video format/Resolution | HDMI: 2160p 60/59.94/50/30/29.97/25 1080p 60/59.94/50/30/29.97/25 1080i 60/59.94/50 720p 60/59.94/50 SDI: 1080p 60/59.94/50/30/29.97/25 1080i 60/59.94/50 720p 60/59.94/50 (2160p 60/59.94/50 YUV 4:2:0 only) |
| Image Sensor | 1/1.8″ CMOS |
| Effective Pixels (approx.) | 8.42Mega Pixels |
| S/N Ratio | ≥55dB |
| Min. Illumination | 0.5 Lux @ (F1.8, AGC ON) |
| Electronic Shutter | 1/30s ~ 1/10000s |
| Zoom Ratio | 20x Optical, 16x Digital Zoom |
| Gamma Control | Off / Normal |
| Iris Control | Auto / Manual |
| Digital Noise Reductions | 2D/3D |
| On-Screen Display (OSD) | English/Simplified Chinese/Traditional Chinese |
| White Balance | Auto, Indoor, Outdoor, OnePush, Manual, VAR |
| AGC / Gain Control | Yes |
| Mirror / Flip Image | Yes |
| Focus Mode | Auto/Manual |
| Panning / Tilting Range | Pan: 300° |
| Tilt: +130° to -15° | |
| Panning / Tilting Speed | Pan: 0.876°/s~43°/s |
| Tilt: 0.693°/s ~21.32°/s | |
| Preset | 255 Position |
| Focal Length | 20x, f = 6.7mm ~125mm, F1.58 ~ F3.95 |
| Field of View (Horizontal, Wide) | 60° |
| Image Compensation | Back light compensation |
| Video Output | HDMI 2.0 x1 |
| 3G-SDI x1 | |
| 10/100/1000M RJ45 x1 | |
| Audio Input | 3.5mm x1 |
| Tally LED | Yes |
| Lens Filter | N/A |
| Control Protocol | Pelco-D, Pelco-P, |
| VISCA, VISCA over IP | |
| DHCP, RTSP, RTMP (IP Cam), RTMPS, | |
| DVIP | |
| NDI | |
| Remote Control Interface | IR |
| Web UI | |
| RS-422 | |
| DVIP | |
| NDI | |
| Video Compression Format | H.264/H.265/MJPEG |
| Audio Compression Format | AAC |
| Audio Bitrate | 96Kbps, 128Kbps, 256Kbps |
| HD IP Interface | — |
| Streaming Protocols | TCP/IP, HTTP, RTSP, RTMP(S), SRT, ONVIF, DHCP, Multicast |
| First Stream Supported Resolution | 3840×2160 |
| 1920×1080 | |
| 1280×720 | |
| 1024×576 | |
| 960×540 | |
| 640×480 | |
| 640×360 | |
| Second Stream Supported Resolution | 1280×720 |
| 1024×576 | |
| 720×576 (50Hz) | |
| 720×480 (60Hz) | |
| 720×408 | |
| 640×360 | |
| 480×270 | |
| 320×240 | |
| Video Bitrate | 32Kbps ~ 50Mbps (Single Stream) |
| Video Bitrate Mode | VBR, CBR |
| Encoding Frame rate | 50Hz: 1-50fps |
| 60Hz: 1-60fps | |
| POE | IEEE 802.3AT. |
| F/W Update | Via Web UI or USB 2.0 |
| IR Control | Yes |
| Camera Control Unit | RMC-180 series/RMC-300 series/PTZ View Assist APP |
| Tripod Mount | 1/4-20 UNC |
| Optional Accessories | WM-1/ WM-10/ WM-11 |
| Color | Dark Blue/White |
| Dimension (LxWxH) | 173 (W) x 219 (H) x 189.08 (D) |
| Weight | 2.6 kg |
| Operating Temp. Range | 0~40 °C |
| Power | DC 12V 12W |
In The Box
Click to rate this post!
[Total: 2 Average: 5]
- 1 x PTC-300NDI product
- 1 x IR remote controller
- 1 x Ceiling mount bracket-A
- 1 x Ceiling mount bracket -B
- 6 x Ceiling mount bracket screw M3*4mm
- 1 x DC 12V Power Adaptor
- 1 x A tightrope
