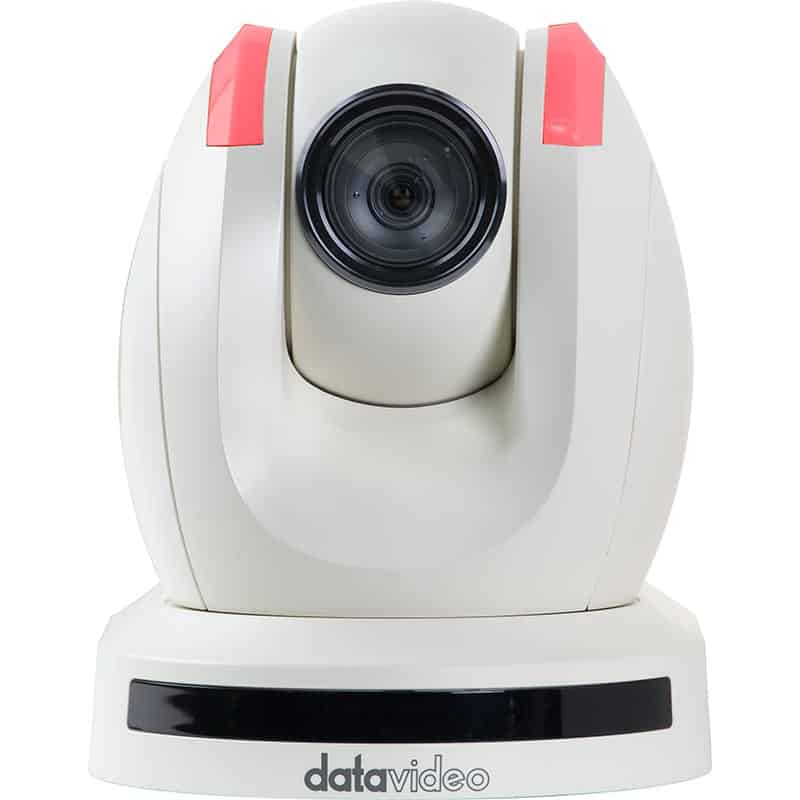

Datavideo PTC-150W HD/SD PTZ Video Camera – White with 30x optical zoom
Product Highlights
- 30x zoom allows cameras to be positioned near the action or far away while still obtaining good clarity and close-ups of the subject.
- Digital noise reduction for beautiful smooth image quality, even in low-lighting conditions
- Auto / Manual options for Iris Control and White Balance allow fine-tuning for calibrating multiple cameras together.
- Built-in Tally Lights that interface natively with Datavideo Switchers. (Red for Live / Green for up-next)
- RMC-180 Controller compatible
This product has been discontinued.
Description
Click to rate this post!
[Total: 1 Average: 5]
Datavideo PTC-150W HD/SD PTZ Video Camera
The Datavideo PTC-150W HD/SD PTZ video camera with a 30x optical zoom can be mounted on a wall, ceiling, floor, or tabletop and includes an IR remote control.
The Datavideo PTC-150W 1920 x 1080 resolution camera features a wide dynamic range with backlight compensation. The camera’s image mirror and image rotation functions allow you to electronically orient the image to adjust for the position in which the PTZ has been located.
50 programmable position presets including pan, tilt, and zoom positions, allow the camera to quickly move between predetermined camera positions using the remote, or an available PTZ controller. For multi-camera shoots, the built-in tally light can identify when it is the active camera. The camera features a built-in IR cut filter for low-light shooting. Datavideo PTC-150W supports real-time position reporting per frame, providing useful information for virtual studio applications.
The Datavideo PTC-150W camera supports Sony VISCA protocol for PTZ control using RS-422 protocols over the unit’s RJ-45 port.
Related Product:
Datavideo PTC-150TW HD/SD PTZ Video Camera with HDBaseT Technology
Specifications
Click to rate this post!
[Total: 1 Average: 5]
| Video format | 1080p 59.94/50/29.97/25, 1080i 59.94/50, 720p 59.94/50, 480i, 576i (on CVBS) |
| Image Sensor | 1/2.8” type progressive scan CMOS sensor |
| Effective Pixels (approx.) | 2.14 Mega pixels |
| S/N Ratio | 50dB |
| Min. Illumination | Color: 0.4 lx B/W: 0.03 lx (F1.6, 1/30 sec, 50IRE, Gain: High) |
| Electronic Shutter | 1/25 (1/30), 1/50 (1/60), 1/75(1/90), 1/100, 1/120 (1/125), 1/150(1/180), 1/215( 1/250), 1/300(1/350), 1/425(1/500), 1/600(1/725), 1/1000, 1/1250(1/1500) |
| Zoom Ratio | 30x Optical zoom |
| Gamma Control | Off / Normal / Standard Mode 1-4 |
| Iris Control | Auto / Manual |
| Digital Noise Reductions | Yes |
| On-Screen Display (OSD) | English |
| White Balance | AWB / MWB / One push WB / Outdoor / Indoor / Fluorescent |
| AGC / Gain Control | Auto / Manual Max. Gain Limit |
| Mirror / Flip Image | Yes |
| Focus Mode | Auto / Manual |
| Panning/Tilting Range | Pan: 270°, Tilt: 90° to -20° |
| Panning/Tilting Speed | Manual: 1~150°/Sec Swing: 1~150°/Sec |
| Preset | 50 Position |
| Focal Length | f=4.3 mm (WIDE) to 129 mm (TELE) F1.6 to F4.7 |
| Field of View (Horizontal, Wide) | Approx. 63.7° (WIDE END) / 2.3° (TELE END) |
| Image Compensation | Day & Night function |
| Video Output | 3G-SDI x1, HDMI x1, CVBS x1 |
| Tally LED | Dual color (Red, Green) |
| Filter | Yes |
| Protocol | VISCA, DVIP |
| Remote Control Interface and Transmit Distance | RS-422: Transmit up to 1000m DVIP (RJ45): Transmit up to100m |
| F/W Update | USB |
| IR Control | Yes |
| Camera Control Unit | RMC-180 |
| Color | white |
In The Box
Click to rate this post!
[Total: 1 Average: 5]
- 1x PTC-150W Unit
- 1x IR remote controller
- 1x PTC-150W Thank You Card
- 1x Ceiling mount bracket-A
- 1x Ceiling mount bracket -B
- 6x Ceiling mount bracket screw M3*4mm
- 1x DC 12V Power Adaptor
- 1x Power Cord
- 1x A tightrope
