Clear-Com U-BOX Speaker Station

USD 330.00USD 455.00 excl. Tax excl. Tax

Weight N/A
Choose Product Variant

U-BOX-X3

,

U-BOX-X6

,

U-BOX-RJ45

SKU: U-BOX Category:
Description
Click to rate this post!
[Total: 1 Average: 5]

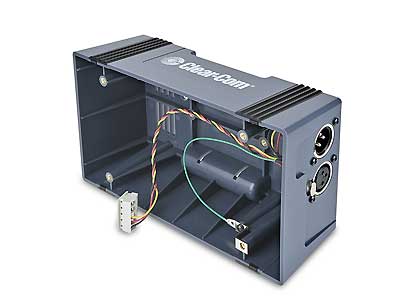

Clear-Com U-BOX

Clear-Com U-BOX is a highly versatile, robust enclosure to convert any Clear-Com KB 4-Gang-sized speaker station into a desktop, shelf, or wall mount unit for portable or permanent installation.

Features:

  • Enclosure for KB speaker station
  • Permanently installed or portable
  • Integrated handles
  • Vertical or angled KB installation
  • Desktop or wall mount
  • VESA 75 mounting option
  • Rugged enclosure
  • Available wired for single or dual-channel party lines and 4-wire
Specifications
Click to rate this post!
[Total: 1 Average: 5]
Technical Specifications
Connectors
U-Box-X3
XLR Partyline
3-pin XLR-M/F
U-Box-X6
XLR Partyline
“Switchcraft-style”* 6-pin XLR-M/F
U-Box-RJ45
Four-Wire
etherCON RJ45
Input Power Connector DC 2.1mm Co-axial
Environmental 32° – 158°F (0 – 70°C)
Mounting
U-Box
Keyholes Center-to-Center 4.0in (101.6mm)
Keyhole Diameter 0.318-0.159in (8.08-4.04mm)
VESA Sockets Center-to-Center 2.95in (75mm)
VESA Thread Type M4x10
Mounting Bracket
Keyholes Center-to-Center 5.9in (149.9mm)
Dimensions
U-Box 4.5 x 8.2 x 2.8in (HxWxD)
(113.79 x 208.79 x 70.23mm)
U-Box in Mounting Bracket 5.4 x 8.3 x 6.1in (HxWxD)
(136.19 x 209.55 x 154.37mm)
Weight
U-Box 0.71lbs (0.32kg)
U-Box in Mounting Bracket 0.90lbs (0.41kg)
U-Box with KB Speaker Station 1.97lbs (0.89kg)

IMPORTANT: XLR Connector Compatibility
Clear-Com products featuring 6-pin XLR connectors utilize the Switchcraft XLR pin layout. Compatible connectors are available from manufacturers, such as Switchcraft and Neutrik, yet compatibility must be verified. Neutrik 6-pin XLR connectors must include “S” in the part number to ensure compatibility.

In The Box
Click to rate this post!
[Total: 1 Average: 5]
  • 280038Z-SP: Screw Kit to fasten KB / HB – (4 screws) 6-32 x 1/2”
  • MECH-00246-SP: Mounting Bracket Kit
