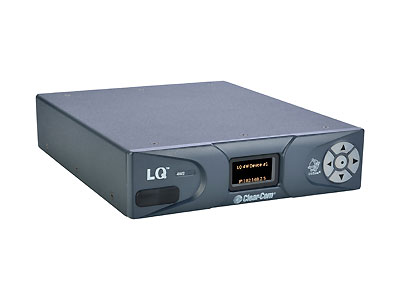

Clear-Com LQ-4W2 Dual Channel 4-Wire IP Communication Interface
LQ IP interfaces are compact boxes that enable connection of 2-wire partyline devices over LAN, WAN or Internet IP infrastructures. The Clear-Com LQ-4W2 can interconnect with devices, such as analog ports of any matrix intercom system, analog telephone circuits, two-way radio gate-ways and audio consoles. A maximum of six LQ IP devices can be linked together in any 2- or 4-wire combination.
Audio Assignments
At least two ports must be associated to a channel. When the two or more ports are added to a channel, it becomes a Virtual Partyline (VPL).
Connectors:
Both LQ devices have two Neutrik etherCON series lockable RJ45 chassis connectors for network connectivity. The LQ-4W2 has two additional Neutrik etherCON audio port connectors for analog 4-wire audio.
Power:
The LQ devices can power the partyline, allowing the user to connect a beltpack without the need of a power supply to locally power the line. A total of 5 beltpacks can be locally powered or one beltpack can be powered using PoE.
Network Technology:
The LQ devices use the low-latency OPUS codec. The OPUS adjustable audio codec meets various data rate, bandwidth and quality requirements.
Core Configuration Manager (CCM):
CCM is a free browser-based software tool with intuitive menus for quick setup and configuration editing that supports the latest versions of all major browsers on MAC, PC and tablet platforms. LQ devices can be added and removed from the system by editing the configurations via the CCM software.
To view more Clear-com Products
Related Products:
- Clear-Com LQ-2W2 2-Channel Interface Box
- Clear-Com LQ-4WG2 2-Channel 4-Wire GPIO IP Interface
- Clear-Com LQ-R4W8 8-Channel 4-Wire IP Interface
- Clear-Com LQ-R4WG8 8-Channel 4-Wire GPIO IP Interface
- Clear-Com LQ-R2W4 4-Channel Partyline IP Communication Interface
- Clear-Com LQ-R2W4-4W4 4-channels IP Interface
Features
Click to rate this post!
[Total: 1 Average: 5]
- Intercom-over-IP: routing intercom and audio signals over IP networks
- Connect up to 6 LQ devices together over LAN, WAN, Internet
- Remotely connect up to 8 IVC-32-HX or E-IPA-HX ports per LQ device
- Supports up to 8 Agent-IC and Station-IC clients per LQ device (license required)
- Supports up to 8 SIP client connections per LQ device (license required)
- Connects to HelixNet via HLI-ET2 over LAN or WAN
- Add up to 24 ports of audio I/O per HelixNet Main Station by connecting to LQ Series
- 4-wire ports support data and audio for Clear-Com Eclipse and Drake 4000 panels
- Adjustable bandwidth on a per port basis
- Connectors: 2 x EtherCON (female): 2 x Network; 2 x EtherCON
- (female): 2 x Audio I/O
- Network-friendly OPUS Codec
- Browser-based Core Configuration Manager
- Networked Control Events for multi-unicast one-to-many routing
Specifications
Click to rate this post!
[Total: 1 Average: 5]
Audio:
- Resolution: 12 bit
- Sample Rate: 24kHz
- Frequency Response: 100 – 12kHz
- CODEC: OPUS
- Input Gain: -3dB to +3dB
- Output Gain: -3dB to +3dB
Network Setting:
- Bit Rates: 32, 48, 64, 128kbps
- Packet Size: 5, 10, 20, 40, 60ms
- Jitter Buffers: 0 – 1000ms
Connectors:
- Network/LAN: EtherCON / RJ45 (female)
- 4-wire Audio I/O: EtherCON / RJ45 (female)
Partyline Output Current:
- LQ Local DC Powered: 150mA
- POE Powered: 70mA
Power Supply:
- Plug-in adapter with sleeve locking connector (US, UK , Europe, AUS & China sockets included)
- Input: 100-240V, 47-63Hz, 0.58A MAX
- Output: DC 12V, 2A, 24W MAX
Environmental:
- Operating Temperature: +32°F – +104°F (0°C – +40°C)
- Storage Temperature: -67°F – +158°F (-55°C – +70°C)
- Humidity: 90%, non-condensing
- Dimensions: 6.8 x 1.79 x 8.45in (WxHxD)(173 x 46 x 215mm)
- Weight: 1.83lbs (.83kg)
