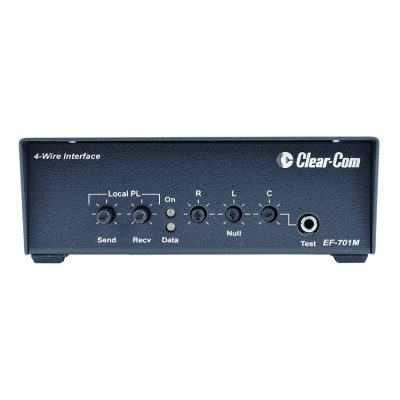

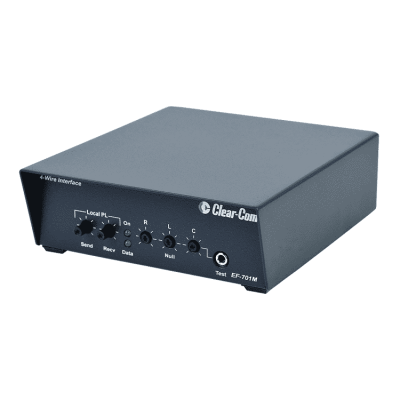

Clear-Com EF-701M 4-Wire Interface with Call Signal
Clear-Com EF-701M 4-Wire Interface with Call Signal, Matrix-to-Partyline
The Clear-Com EF-701M interface converts a single channel of standard or TW partyline intercom to four-wire audio, while also converting call signals to RS-422 data (and back). The resulting four-wire audio plus RS-422 data can then be sent to a Clear-Com Matrix port, fiber-optic converter (modem) or connected to another EF-701M over twisted-pair cable such as CAT-5E.
Specifications
Click to rate this post!
[Total: 1 Average: 5]
| Clear-Com Format | Line Characteristics Max Level Before Clipping: >=20dBu Impedance: >=10KΩ Signalling Receive: <=4 VDC Send: >=11VDC |
| RTS Format | Line Characteristics Max Level Before Clipping: >=20dBu Impedance: >=10KΩSignalling Tone Send frequency: 20kHz ±1KHz Receive frequency: 20kHz ±500Hz Send level: >=-6dBu Receive level: <=-20dBu |
General Characteristics of EF-701M
| Frequency Response | Party-line – Matrix: 200-10KHz ± 3dB Matrix – Party-line: 200-10KHz ± 3dB |
| Distortion | Party-line – Matrix: <=0.5% Matrix - Party-line: <=0.5% |
| Noise | Party-line – Matrix: <=-50dBu Matrix - Party-line: <=-70dBu |
| Max Gain | Party-line – Matrix (CC setting): 20dB ± 3dB Party-line – Matrix (RTS setting): 16dB ± 3dB Matrix – Party-line (CC setting): -5dB ± 3dB Matrix – Party-line (RTS setting): -1dB ± 3dB |
| Min Gain | Party-line – Matrix (CC setting): -7dB ± 3dB Party-line – Matrix (RTS setting): -12dB ± 3dB Matrix – Party-line (CC setting): -33dB ± 3dB Matrix – Party-line (RTS setting): -29dB ± 3dB |
| Power Requirements | Input Voltage Range: 20-30VDC Quiescent Current: <=70mA Max Current: <=80mA |
| Rear Panel Connectors and Controls |
Party-line: (1) XLR3F RTS: (1) DB-15F Matrix: (1) RJ-45, (2) Mode Switches |
| Front Panel Connectors and Controls |
TS1 Earphone: (1) 3.5mm Jack Socket Level Adjust: (2) Rotary Control Null Adjust: (3) Rotary Control Power Indicator: (1) Green LED Data Indicator: (1) Amber LED |
| Dimensions | 1.62 in. H x 5.94 in. W x 4.80 in D (41 mm x 151 mm x 122 mm) |
| Weight | 1.75 lbs (.794 kgs) |
| Accessories | Wiring diagram, adhesive backed TS-1 testing earphone |
