Blackmagic Smartview Duo Monitor w/ 2 large 8-inch LCD Screens

USD 520.00 excl. Tax

Product Highlights:

  • Featuring two large independent eight inch LCD screens in a compact rack mount design
  • Smart View Duo handles SD, HD and 3Gb/s SDI video standards
  • Perfect for post production, broadcast and live event monitoring
  • Affordable SDI Monitoring
  • Includes easy to use software for Mac and Windows
Weight 4 kg
SKU: HDL-SMTVDUO2 Category:
Description
Click to rate this post!
[Total: 3 Average: 5]

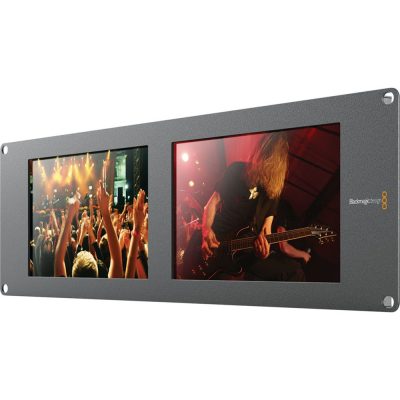

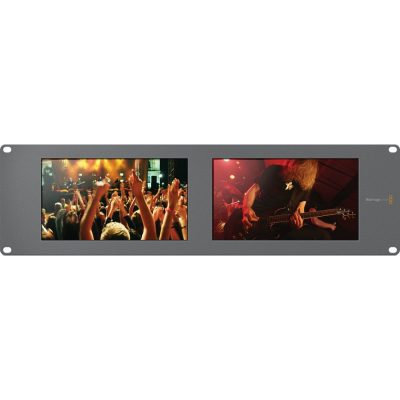

Blackmagic Smartview Duo Monitor with 2 large independent 8-inch LCD screens

Featuring two large independent eight-inch LCD screens in a compact rack mount design, Smart View Duo handles SD, HD, and 3Gb/s SDI video standards. Blackmagic Smartview Duo is perfect for post-production, broadcast, and live event monitoring. For easy setup, all screens can be remotely adjusted via an ethernet connection. With Smartview Duo, you can install SDI monitoring everywhere you need.

Affordable SDI Monitoring with the new SmartView

The Blackmagic Smartview Duo Monitor is an affordable and compact SDI rack monitoring system perfect for post-production, broadcasting, or live events. Smartview is available in two exciting ultra-thin, compact rack mount designs that are only an inch thick. Smartview Duo features two beautiful 8″ LCD screens for monitoring multiple sources and the new Smartview HD with a large 17″ LCD screen. Both SmartView models handle all SD, HD, and 3 Gb/s SDI video formats and include built-in Ethernet, so can be remotely adjusted from your Mac or PC. Smartview includes red, green, and blue tally indications, perfect for the largest broadcast systems. With Smart View monitoring, you can afford to put SDI monitoring everywhere you need it.

Monitor Everywhere

Good quality SDI monitoring is expensive and often makes it hard to put monitoring on all the devices in your racks or control rooms because costs add up quickly. SmartView Duo eliminates this problem and includes two large, beautiful 8-inch displays in a compact 3-rack unit size. You get a full loop through SDI connections and an ethernet network connection for setup. Blackmagic Smartview Duo Monitor includes easy-to-use software for Mac and Windows, so you can see all the monitors on your network for remote adjustments. That’s perfect when you want to color-match all screens in a video wall remotely from your laptop. SmartView Duo even includes a tally.

To view more Blackmagic products

Specifications
Click to rate this post!
[Total: 3 Average: 5]

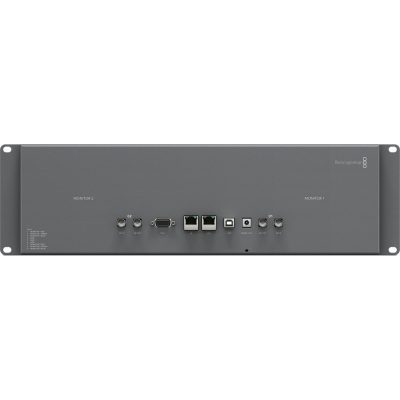

Connections:
SDI Video Input
Switchable between SD, HD and 3 Gb/s SDI. Reclocked loop through output.
Multi Rate Support
Auto detection of 2K, HD or standard definition inputs
Updates and Configuration
Via USB 2.0 high speed (480 Mb/s)
Ethernet
10/100 BaseT with loop through.
Tally
9-pin D connector
Standards:
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M and SMPTE 425M
SDI Color Space
REC 601, REC 709
SDI Auto Switching
Automatically selects between SD, HD and 3 Gb/s SDI
Video Sampling
4:2:2 and 4:4:4
SDI Format Support
525i59.94, 625i50, 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080PsF23.98,1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080p23.98, 1080p24, 1080p25, 1080p29.97,1080p30, 1080p50, 1080p59.94, 1080p60, 2048x1080p/23.98, 2048x1080p/24, 2048x1080p/25,2048x1080PsF/23.98, 2048x1080PsF/24, 2048x1080PsF/25, 2048x1556PsF/23.98, 2048x1556PsF/24,2048x1556PsF/25
Extras:
Software Control
Mac OS X™ and Windows™
Internal Software Upgrade
Via included firmware updater software
Settings Control
Via USB or Ethernet
Rack Height
3 Rack Units
Displays
2
Display Size
8″ diagonal
Display Element
TFT Active Matrix LCD
Display Resolution
800 x 480 pixels
Response
< 15 ms
Contrast Ratio
Typically 500:1
Color Depth
16.7 Million Colors
Display Orientation
Displays can rotate upside down for optimum viewing angle
Power Supply
12V universal power supply included with international socket adapters for all countries
Power Consumption
< 20 Watts
Operational Voltage Range
12V – 15V
Product Warranty
12 Months Limited Manufacturer’s Warranty
