Blackmagic ATEM Constellation 8K Ultra HD live Production Switcher
Product Highlights:
- Massive 40 Standards Converted 12G‑SDI Inputs
- 24 Customizable 12G‑SDI Outputs
- Includes 8K Multiview with Labels, Tally, and Meters
- Professional Broadcast Talkback
- Includes New ATEM Advanced Chroma Key in 8K
- Multi Rate 12G‑SDI for HD, Ultra HD, and Native 8K
- Includes Free Software Control Panel
| Weight | 20 kg |
|---|
Description
Click to rate this post!
[Total: 5 Average: 5]

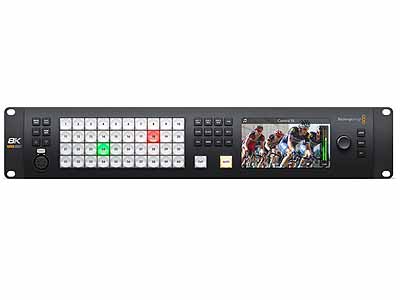

Blackmagic ATEM Constellation 8K
Blackmagic ATEM Constellation 8K is a professional live video production switcher that provides high-end features and performance for live events and broadcast applications. It supports 8K resolution video with real-time processing, allowing for the creation of visually stunning live production. The ATEM Constellation 8K features a total of 24 inputs, including 12 12G-SDI inputs, 6 UHD-SDI inputs, 4 HDMI inputs, and 2 fiber inputs.
The switcher also includes advanced features such as Fairlight audio mixing, built-in talkback, multi-view monitoring, and support for the Camera Fiber Converter, which allows for remote control of cameras. Additionally, the ATEM Constellation 8K provides support for multiple formats and frame rates, making it suitable for a variety of production needs. It also supports advanced color correction and color grading, with the ability to use professional grading panels for real-time color correction. The switcher also includes a powerful media tool that allows for the storage of stills, clips, and graphics, and the ability to quickly access and play them out during a live production.
In terms of control options, the ATEM Constellation 8K supports both hardware and software control, with the option of using the included ATEM Advanced Panel or the ATEM Software Control. The Blackmagic ATEM Constellation 8K is a professional live video production switcher that provides the features and performance required for high-end live events and broadcast applications. With its advanced features and 8K capabilities, the ATEM Constellation 8K is a powerful tool for creating visually stunning live productions.
Features:
- World?s first live production switcher
- Designed for Massive Live Events
- Compact 2RU rack mount design
- Full Front Panel Control
- Massive 40 Standards Converted 12G?SDI Inputs
- 24 Customizable 12G?SDI Outputs
- Includes 8K Multiview with Labels, Tally, and Meters
- Professional Broadcast Talkback
- Internal Media for Stills and Motion Graphics
- Includes New ATEM Advanced Chroma Key in 8K
- Multi Rate 12G?SDI for HD, Ultra HD, and Native 8K
- Includes Free Software Control Panel
Professional Broadcast Talkback
To keep crews working as a single creative team, ATEM Constellation features built-in talkback. Talkback supports a front 5-pin XLR headset connector, as well as a rear RJ12 talkback expansion connector for interfacing with industry-standard systems such as ClearCom or RTS. You get full talkback control including program and engineering loops, sidetone control for hearing the headset mic into the headphones, and program mix. ATEM Constellation also supports SDI talkback that uses SDI channels 15 and 16 for 2?way communication with Blackmagic Design cameras. You can even use channels 13 and 14 for engineering talkback. It?s even possible to mix the talkback mic into the program audio for voiceovers!
Includes Free Software Control Panel
The ATEM Software Control Panel gives you total control over your switcher and is included for free. ATEM Software Control Panel features a beautifully designed interface with a visual switcher and parameter palettes for making quick adjustments. In order to work on various aspects of the event concurrently, multiple users can connect to the switcher via Ethernet. After that, You can also use ATEM Software Control to control cameras, audio mixers, media, macros, and HyperDeck disc recorders. All media is backed up from the media pool, and you can save the switcher’s complete state as XML files. Plus you can run the software on Mac or Windows.
To view more Blackmagic Products
View more HDMI/SDI Switcher Products
Related ATEM Live Production Switchers Products:
Other Site:
Blackmagic ATEM Constellation 8K Ultra HD Live Production Switcher
Read Our Blog:
Blackmagic ATEM Switcher Lineup: A Guide to Live Production Solutions
Blackmagic ATEM Comparison Chart (10 to 40 Inputs)
Indhu UC added on 31 Jan 2023
M by Sankari 27 Feb23
Add-R-Ind-05.12.23
Specifications
Click to rate this post!
[Total: 5 Average: 5]

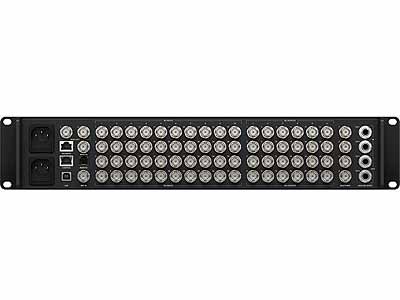

| Connections | |
| Total Video Inputs | 40 x up to Ultra HD / 10 x in 8K |
| Total Video Outputs | 28 x up to Ultra HD / 7 x in 8K |
| Total Aux Outputs | 24 x up to Ultra HD / 6 x in 8K |
| SDI Rates | 1.5G, 3G, 6G, 12G |
| Total Audio Inputs | 2 x balanced 1/4 inch Jack, 1 x 32 stereo channel BNC MADI in. |
| Total Audio Outputs | 2 x balanced 1/4 inch Jack, 2 x 32 stereo channel BNC MADI out. |
| Timecode Connections | None |
| Reference Input | Tri-Sync or Black Burst. |
| Video Input Re-Sync | On all 40 inputs. |
| Frame rate and format converters | On all 40 inputs. |
| SDI Video Inputs | 40 x 10-bit 720p, 1080i, 1080p, 2160p and 10 x 4320p switchable. |
| Extra Audio Outputs | 1 x 5 pin XLR Talkback. |
| SDI Audio Outputs | 2 Ch embedded into SDI output on all outputs. |
| Extra Audio Inputs | 1 x 5 pin XLR Talkback. |
| SDI Program Outputs | Any of the 24 SDI outputs. |
| Down Converted SDI Program Output | None |
| SDI Preview Outputs | Any of the 24 SDI outputs. |
| Total Multi Views | 4 x up to Ultra HD / 1 x in 8K |
| SDI Multi View Outputs | 4 |
| HDMI Multi View Outputs | None |
| Remote | RJ12 supports RS-422 |
| Control Panel Connection | Ethernet supports 10/100/1000 BaseT. Allows direct connection between panel and chassis, or via network. |
| Internal Timecode Generator | Yes |
| Talkback | RJ45 for 3rd party talkback systems. |
| Tally Output | Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included). |
| Computer Interface | 1 x USB 2.0 port. |
| Standards | |
| SD Video Standards | None |
| HD Video Standards | 720p50, 720p59.94 1080i50, 1080i59.94 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p50, 1080p59.94 |
| Ultra HD Video Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p50, 2160p59.94 |
| 8K Video Standards | 4320p23.98, 4320p24, 4320p25, 4320p29.97, 4320p50, 4320p59.94 |
| SDI Compliance | SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M Level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1 and SMPTE 2082-10, SMPTE 2082-12. |
| Video Sampling | 4:2:2 |
| Color Precision | 10-bit |
| Color Space | REC 709 |
| SDI Auto Switching | Automatically detects between level A and level B 3G-SDI, 6G-SDI and 12GSDI. Requires 2SI in 8K mode. |
| Product Specifics | |
| Upstream Keyers | 16 x up to Ultra HD / 4 x in 8K with Chroma/Linear/Luma key. |
| Downstream Keyers | 4 x up to Ultra HD / 2 x in 8K. |
| Advanced Chroma Keyers | 16 x up to Ultra HD / 4 x in 8K. |
| SuperSource | 2 |
| Talkback Support | Yes |
| Mix-Minus Support | Yes |
| Linear/Luma Keyers | 21 x up to Ultra HD / 7 x in 8K |
| Transition Keyer (Stinger/DVE) | 4 Stinger, 4 DVE . |
| Total Number of Layers | 28 x up to Ultra HD / 7 x in 8K |
| Pattern Generators | 21 x up to Ultra HD / 9 x in 8K |
| Color Generators | 2 |
| DVE with 3D Borders & Drop Shadow |
4 x up to Ultra HD / 1 x in 8K |
| Control Panel | Front fascia emergency switching, software or optional hardware panel. |
| Routable Windows | 64 x up to Ultra HD / 16 x in 8K |
| Tally | Red for the program and green for preview indication. |
| Windows Source Labels | Yes |
| Multi View Monitoring | |
| Multi View Monitoring | 4 x 16 Multi View pattern options for up to 64 total views. |
| Multi-View Video Standard | Select HD, Ultra HD or 8K. |
| Media Player | |
| Media Player | 4 x up to Ultra HD / 1 x in 8K |
| Media Pool Still Image Capacity | 64 x up to Ultra HD / 24 x in 8K with fill and key. |
| Media Pool Clip Capacity | 4 x up to Ultra HD / 2 x in 8K with fill and key. |
| Media Player Clip Length in 720 HD | 3200 frames. |
| Media Player Clip Length in 1080 HD | 1600 frames. |
| Media Player Clip Length in Ultra HD | 400 frames. |
| Media Player Clip Length in 8K | 100 frames. |
| Media Pool Still Image Format | PNG, TGA, BMP, GIF, JPEG and TIFF. |
| Media Pool Video File Format | TGA Sequence. |
| Media Pool Audio File Format | WAV, MP3 and AIFF. |
| Channels | Fill and key for each Media Player. |
| Display | |
| Interface | Minimum monitor resolution of 1366 x 768. |
| Front Panel | Built in HD LCD monitor for video, 42 LED buttons for setup and emergency switching, 8 source buttons, 4 transition buttons, 6 talkback selection and mix buttons, menu control knob and set button, front panel lock button. |
| Procesing | |
| Processing Delay | < 7 lines in up to Ultra HD / in 10 lines in 8K |
| Audio Mixer | 156 Channel mixer Selectable On/Off/Audio-FollowVideo. Level and Peak metering. Master gain control. 6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter |
| Down Conversion | None |
| Software | |
| Control Panel Included | ATEM Software Control Panel included free for Mac 10.13 High Sierra, Mac 10.14 Mojave or later and Windows 8.1 64-bit or Windows 10 64-bit. |
| Software Updates | Using USB 2.0 connection directly connected to Mac OS or Windows computers. Includes ATEM Setup Utility.) |
| Configuration | Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Setup Utility connected via USB to chassis. |
| Operating Systems | Mac 10.14 Mojave, Mac 10.15 Catalina or later. Windows 8.1 and 10, both 64-bit. |
| Power Requirements | |
| Power Supply | 2 x Internal 100 – 240 AC. |
| Power Usage | 300W |
| Physical Specifications | 482 mm X 336 mm X 90 mm |
| Weight | 8.4 Kg |
| Physical Installation | |
| Physical Installation | 2 Rack Unit Size. |
| Environmental Specifications | |
| Operating Temperature | 0° to 40° C (32° to 104° F) |
| Storage Temperature | -20° to 60° C (-4° to 140° F) |
| Relative Humidity | 0% to 90% non-condensing |
| Warranty | |
| Warranty | 12-Month Limited Manufacturer’s Warranty. |
In The Box
Click to rate this post!
[Total: 5 Average: 5]
- ATEM Constellation 8K
- Welcome wallet with QR code for software download
Delivery Info
Click to rate this post!
[Total: 5 Average: 5]
How to shop TAX free in Singapore
9% Goods Service Tax (GST) will be imposed over the total invoice value if purchased locally in Singapore. However if you are a tourist visiting Singapore, this GST amount can be refunded at the Changi International Airport Departure Hall GST Refund Centre before departure with goods within 60 days from the date of purchase. Please note that only Tourists who have met the Tourist Refund Scheme’s conditions and eligibility criteria can claim for the GST refund. Visit the following link for GST Guide for Visitors on Tourist Refund Scheme. https://www.iras.gov.sg/taxes/goods-services-tax-(gst)/consumers/tourist-refund-scheme
All items that are available for purchase online are subjected to availability. For item that are available, a confirmation email will be sent to your registered email to show that your order had been processed and is ready for collection / to be delivered. In the event whereby the item ordered is unavailable, a notification email will be sent and refund will be initiated immediately.
Self-collect: Item will be ready for collection at our store once the confirmation email is received. Orders that are made on the Weekends or Public Holiday may take about 2-4 working days to process.
Delivery (Local, Singapore): Small items: Delivery will take approximately 3-5 working days (excluding weekends and public holidays) to be delivered upon confirmation of order. Orders will be delivered by Singpost or local couriers.
Large / Bulky items: Delivery will take approximately 7-10 working days (excluding weekends and public holidays) to be delivered upon confirmation of order. Orders will be delivered by Expandore.
Delivery (Overseas); Shipment will be arranged with our courier partners to be delivered to your shipping address.
If you have other inquiries for placing of order and delivery, you can refer to our FAQ here (https://www.expandore.sg/faq/) Or Contact us here (https://www.expandore.sg/contact-us/)
Reviews (1)
1 review for Blackmagic ATEM Constellation 8K Ultra HD live Production Switcher
Clear filtersOnly logged in customers who have purchased this product may leave a review.
You may also like…
USD 960.00 excl. Tax
USD 3,243.54 excl. Tax
USD 4,383.00 excl. Tax
USD 3,810.00 excl. Tax
USD 2,860.00 excl. Tax
USD 1,624.00 excl. Tax
USD 3,524.00 excl. Tax
Related products
USD 2,653.00 excl. Tax
USD 7,643.00 excl. Tax
USD 1,264.00 excl. Tax
USD 1,570.00 excl. Tax
Product Specialist –
Revolutionizing Live Production: The Blackmagic ATEM Constellation 8K Unveiled
The Blackmagic ATEM Constellation 8K emerges as a groundbreaking force in the realm of live video production, boasting a plethora of impressive features and unparalleled performance. Tailored for those seeking to elevate their live events and broadcasts, this professional switcher stands as a beacon of innovation.
At the core of its capabilities is the support for 8K resolution, coupled with real-time processing capabilities. This unique combination empowers content creators to craft visually stunning productions that captivate audiences with unparalleled clarity and detail. The switcher’s extensive array of inputs—24 in total—comprising 12 12G-SDI inputs, 6 UHD-SDI inputs, 4 HDMI inputs, and 2 fiber inputs, ensures a level of versatility and compatibility that is second to none.
However, the ATEM Constellation 8K is not merely about quantity; it introduces a host of advanced features that redefine the live production landscape. The inclusion of Fairlight audio mixing, built-in talkback functionality, and multi-view monitoring elevates the production experience to a realm of seamless professionalism. Furthermore, the switcher extends its capabilities with support for the Camera Fiber Converter, offering the convenience of remote camera control—an invaluable asset in complex production setups.
Versatility is a hallmark of the ATEM Constellation 8K. Its compatibility with multiple formats and frame rates renders it suitable for a diverse range of production needs, adapting effortlessly to the specific requirements of different projects. The switcher’s advanced color correction and color grading capabilities, complemented by the option to utilize professional grading panels for real-time adjustments, guarantee that the visual output meets the highest standards of quality.
The ATEM Constellation 8K also excels in efficiency with the integration of a robust media tool. This feature allows for the seamless storage of stills, clips, and graphics, facilitating quick access and playback during live productions. Such functionality proves invaluable in dynamic settings where rapid response and versatility are paramount.
Control options are equally sophisticated, offering users the flexibility to choose between hardware and software control. Whether utilizing the tactile ATEM Advanced Panel or the convenience of the ATEM Software Control, users are empowered with precise command over their production environment.
In summary, the Blackmagic ATEM Constellation 8K transcends the realm of a conventional switcher, establishing itself as a powerhouse tailored for professionals who demand nothing short of excellence in their live video productions. With its pioneering features, 8K resolution support, and seamless control options, the ATEM Constellation 8K stands as a testament to Blackmagic’s unwavering commitment to pushing the boundaries of what is achievable in live production. For those serious about delivering visually stunning and flawless live events, this switcher stands as an indispensable tool.
