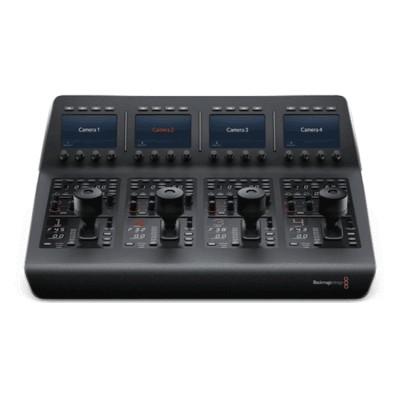

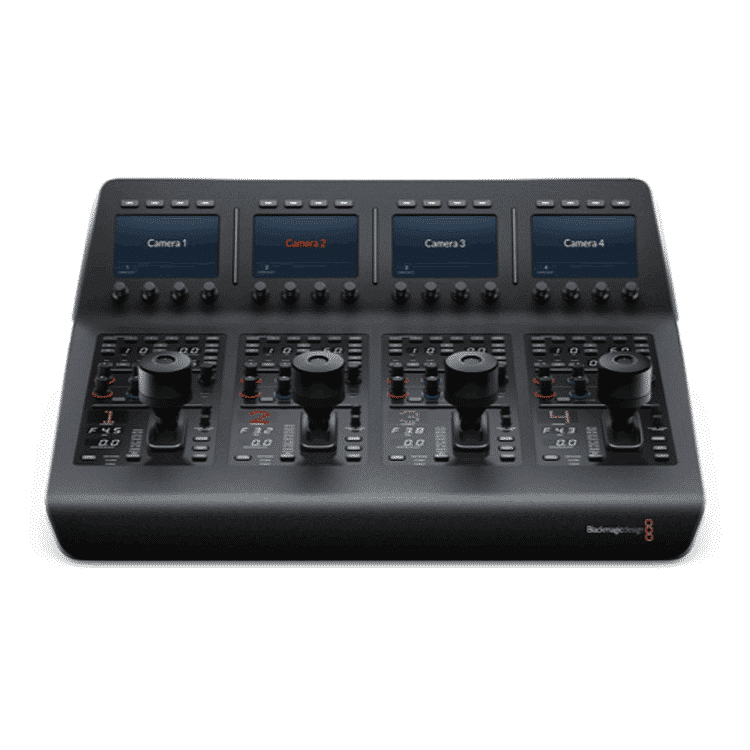

Blackmagic ATEM Camera Control Panel for up to 4 cameras
USD 2,860.00 excl. Tax
Product Highlights:
- Designed to be portable
- Mounted on a slide-out rack shelf.
- One person can control 4 cameras
- independent RGB controls for gain and pedestal, or white and black
- It works with all ATEM switcher models
| Weight | 16 kg |
|---|
Description
Click to rate this post!
[Total: 4 Average: 5]
Enhance Live Productions with the Blackmagic ATEM Camera Control Panel
The Blackmagic ATEM Camera Control Panel is a sophisticated, compact, and versatile remote camera control unit designed to manage up to four URSA Broadcast, URSA Mini, Blackmagic Studio, or Blackmagic Micro Studio cameras. This panel is engineered to provide broadcast-style controls and adjustments, allowing a single operator to manage various technical parameters like black levels, gain, color balance, and shutter speed. This functionality frees camera operators to concentrate on the creative aspects of live production, such as framing and composition. Unlike traditional CCU (Camera Control Unit) controllers that require desk installation, the ATEM Camera Control Panel is portable, easily placed on any desktop, or bolted for mounting on a slide-out rack shelf. Its familiar and logical layout makes it ideal for both seasoned professionals and new operators. Furthermore, it is compatible with all ATEM switcher models.
ATEM Camera Control Panel Control Four Cameras
One of the key features of the ATEM Camera Control Panel is its capability to control up to four cameras simultaneously. This is crucial for live multi-camera productions, ensuring consistent video quality from every angle. The panel includes four individual camera controllers, each equipped with a large LCD screen, soft buttons, and knobs at the top section, as well as a comprehensive set of professional controls on the main body.
Scene and Camera Controls
The top section of the control panel allows operators to save and recall scene presets, enabling quick adjustments based on scene changes, such as lighting. This section also provides controls for:
- Master Gain: Increases sensor sensitivity for low-light conditions or when more depth of field is required.
- White Balance: Allows quick setting and adjustment of white balance.
- Shutter Speed: Adjusts the camera’s shutter speed.
- Color Bars: Outputs color bars for the selected camera for calibration.
Gain and Pedestal Controls
The central section of the panel features independent RGB controls for gain (white) and pedestal (black), allowing precise adjustments of red, green, and blue levels in both highlights and shadows. This helps in compensating for any unwanted color tints.
- White Gain: Adjusts the individual RGB levels for whites.
- Black Pedestal: Adjusts the individual RGB values for blacks.
Lens and Iris Controls
The bottom section includes various critical controls:
- LED Camera Number: Indicates the preview and on-air status of each camera.
- Joystick: A high-quality joystick is used to adjust the iris and master black levels. The joystick moves up and down for iris control, rotates for master black adjustment, and can be pressed to select a camera for monitoring.
- Call Button: flashes a tally light and sends a tone to get the operator’s attention.
- Panel Lock: Prevents accidental changes by locking the entire panel.
- Status Lights: Indicate network connectivity, alarms, and cable integrity.
- Preview Button: Allows sending the aux feed to the monitor without moving the joystick.
- Coarse Control: Sets the iris control limit on the joystick.
- Master Black: Controls the black/pedestal level without affecting contrast.
Integration with Live Production Workflow
The ATEM Camera Control Panel integrates seamlessly with ATEM switchers, connecting via Ethernet. This setup supports multiple ATEM products, such as an ATEM 4 M/E Broadcast Studio 4K switcher, an ATEM 1 M/E Advanced Panel, and the ATEM Camera Control Panel. Ethernet connections can be looped from one ATEM device to another, simplifying the workflow.
Fast and Easy Control
Designed with traditional CCU controls, the ATEM Camera Control Panel is intuitive and quick to use. Operators can rapidly switch between cameras and adjust settings to ensure color consistency across all cameras. The main joystick control adjusts the iris, and the knob adjusts the master black level. The camera number can be set using the knob on the LCD, turning red when the camera is on air. This efficient setup allows operators to start controlling cameras immediately upon connection to the switcher.
In summary, the Blackmagic ATEM Camera Control Panel is a powerful tool for live production environments, offering precise control over multiple cameras with an intuitive, portable design. Its integration with ATEM switchers and traditional broadcast controls makes it a valuable asset for achieving professional-grade video quality.
To view more Blackmagic Products
Other Site:
Blackmagic ATEM Camera Control Panel for up to 4 cameras
Read Our Blog:
Blackmagic ATEM Switcher Lineup: A Guide to Live Production Solutions
M by Indhu 27 Feb23
Add-R-Ind-05.12.23
Indhu UC added on 03 Jun 24
Specifications
Click to rate this post!
[Total: 4 Average: 5]
| Connections | |
| Ethernet | 2 x 10/100/1000 BaseT with loop output for additional control panels or computers. |
| Software Updates | 1 x USB-C for firmware updates. |
| Product Specifics | |
| LCD Menu Displays | 4 |
| Camera Number Display | Green off-air, orange preview, read on air. |
| Setup | White and black balance setup. |
| 3 Axis Joystick | 4 |
| Preview Button | 4 |
| Iris Control | Auto Iris On, Coarse control, and Focus control. |
| Panel Active | Protects settings. |
| Software | |
| Software Applications | ATEM Software Control Panel. |
| Power Requirements | |
| Input Voltage | 1 x Internal 110 – 240V AC. |
| Redundant Power | Yes |
| Environmental Specifications | |
| Operating Temperature | 0° to 40° C (32° to 104° F) |
| Storage Temperature | -20° to 60° C (-4° to 140° F) |
| Relative Humidity | Up to 95% |
| Warranty | |
| Warranty | 12-Month Limited Manufacturer’s Warranty. |
