Blackmagic ATEM 4 M/E Advanced Panel 40
Product Highlights:
- 4 M/E rows with 40 input buttons per row
- 4 independent system control LCDs for each row
- Built-in Macros
- Highest quality buttons, knobs, and faders for even faster switching
- Includes ATEM software control panel for both Mac and Windows
| Weight | 30 kg |
|---|
Description
Click to rate this post!
[Total: 7 Average: 4.7]

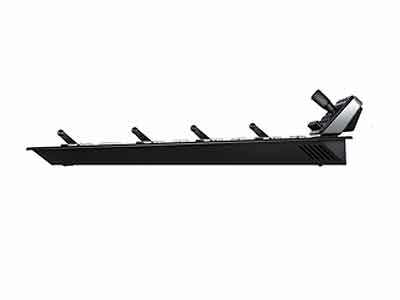

ATEM 4 M/E Advanced Panel 40
Blackmagic ATEM 4 M/E Advanced Panel model is big enough to perfectly match the features on the ATEM Constellation switcher. Blackmagic ATEM 4 M/E Advanced Panel 40 features 4 M/E rows with 40 input buttons per row and 4 independent system control LCDs for each row. This massive panel includes 24 LCDs for custom labeling of every button on every row. ATEM live production switchers have the most comprehensive range of control options. With the included ATEM software control panel for both Mac and Windows, you get full switcher control from any laptop or desktop computer.
For demanding live production environments you can add a hardware-based panel such as the ATEM 1 M/E Advanced Panel, Blackmagic’s new ATEM 2 M/E Advanced Panel, or even the ATEM 4 M/E Advanced Panel. ATEM Advanced Panels all feature the highest quality buttons, knobs, and faders for even faster switching. You also get an SDK for custom control. Only ATEM gives you such a wide range of control options.
Another benefit of the ATEM Advanced Panel is the built-in macros, where you can very easily record your own custom macros and trigger them to playback with the push of a button. This means you don?t need to use a computer to work with macros because you can start them from the same hardware panel you are switching from. If you edit or modify a macro the change will appear on all the connected hardware or software control panels because the macros are stored inside the ATEM Constellation itself. You can set up different macros to trigger under each macro button and the thin strip LCD under the buttons will show you which button a macro you have assigned.
The ATEM Advanced Panel, the ATEM Camera Control panel, and the ATEM Software Control for Mac and Windows all use an Ethernet connection to the ATEM Constellation, so you can set up any combination of panels you need, for the freedom to decide your ideal control setup.
To view more Blackmagic Products
Other Site:
Blackmagic ATEM 4 M/E Advanced Panel 40 for Broadcast
Read Our Blog:
Blackmagic ATEM Switcher Lineup: A Guide to Live Production Solutions
M by Sankari 27 Feb23
Add-R-Ind-30.11.23
Specifications
Click to rate this post!
[Total: 7 Average: 4.7]
| Connections | |
| Ethernet | 4 x 10/100/1000 BaseT with loop output for additional control panels or computers. |
| Software Updates | 1 x USB-C for firmware updates. |
| Product Specifics | |
| Number of Mix Effects Rows | 4 |
| Direct Cross Points | 40 |
| Shifted Cross Points | 80 |
| Crosspoint Button Type | Tri-Color LED |
| Crosspoint Label | 10 rows 24 characters LCD |
| On-Air indicator | 20 |
| Power Status Indicators | None |
| DSK Transition Selectors | 4 x Auto, Cut, Tie/Preview |
| Preview Transition | 4 |
| Transition Rate Displays | Via the main menu |
| LCD Menu Displays | 4 |
| Menu Control | 4 x 20 buttons |
| Dedicated Macro Buttons | 4 x 20 |
| Transport Control Buttons | 24 |
| Destination | 4 |
| Source Select Bus | 4 |
| Fader Bar | 4 |
| 3 Axis Joystick | 1 |
| Numeric Keypad | 1 |
| Software | |
| Software Applications | ATEM Software Control Panel. |
| Operating Systems | Mac 10.14 Mojave, Mac 10.15 Catalina or later, Windows 10, 64-bit. |
| Power Requirements | |
| Input Voltage | 2 x Internal 100 – 240V AC. |
| Redundant Power | Yes |
| Power Usage | 250W |
| Weight | 26 Kg |
| Environmental Specifications | |
| Operating Temperature | 0° to 40° C (32° to 104° F) |
| Storage Temperature | -20° to 60° C (-4° to 140° F) |
| Relative Humidity | Up to 95% |
| Warranty | |
| Warranty | 12-Month Limited Manufacturer’s Warranty. |
In The Box
Click to rate this post!
[Total: 7 Average: 4.7]
- ATEM 4 M/E Advanced Panel 40
Delivery Info
Click to rate this post!
[Total: 7 Average: 4.7]
How to shop TAX free in Singapore
9% Goods Service Tax (GST) will be imposed over the total invoice value if purchased locally in Singapore. However if you are a tourist visiting Singapore, this GST amount can be refunded at the Changi International Airport Departure Hall GST Refund Centre before departure with goods within 60 days from the date of purchase. Please note that only Tourists who have met the Tourist Refund Scheme’s conditions and eligibility criteria can claim for the GST refund. Visit the following link for GST Guide for Visitors on Tourist Refund Scheme. https://www.iras.gov.sg/taxes/goods-services-tax-(gst)/consumers/tourist-refund-scheme
All items that are available for purchase online are subjected to availability. For item that are available, a confirmation email will be sent to your registered email to show that your order had been processed and is ready for collection / to be delivered. In the event whereby the item ordered is unavailable, a notification email will be sent and refund will be initiated immediately.
Self-collect: Item will be ready for collection at our store once the confirmation email is received. Orders that are made on the Weekends or Public Holiday may take about 2-4 working days to process.
Delivery (Local, Singapore): Small items: Delivery will take approximately 3-5 working days (excluding weekends and public holidays) to be delivered upon confirmation of order. Orders will be delivered by Singpost or local couriers.
Large / Bulky items: Delivery will take approximately 7-10 working days (excluding weekends and public holidays) to be delivered upon confirmation of order. Orders will be delivered by Expandore.
Delivery (Overseas); Shipment will be arranged with our courier partners to be delivered to your shipping address.
If you have other inquiries for placing of order and delivery, you can refer to our FAQ here (https://www.expandore.sg/faq/) Or Contact us here (https://www.expandore.sg/contact-us/)
