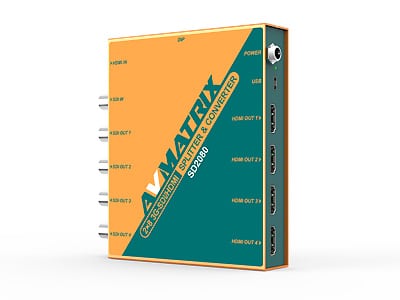

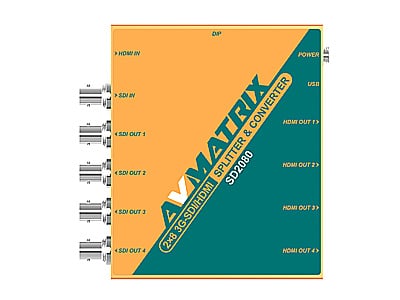

AVMATRIX SD2080 2×8 SDI/HDMI Splitter & Converter

INPUTS

• HDMI Video Input: HDMI Type A x1
• SDI Video Input: SD/HD/3G-SDI x1

OUTPUTS

• HDMI Video Output: HDMI Type A x4
• SDI Video Output: SD/HD/3G-SDI x4

FORMAT

• SDI Input Format Support 1080p 60/59.94/50
  1080p 30/29.97/25/24/23.98
  1080psf 30/29.97/25/24/23.98
  1080i 60/59.94/50
  720p 60/59.94/50/30/29.97/25
  625i 50, 525i 59.94
• SDI Video Rate: SD/HD/3G-SDI
• SDI Compliance: SMPTE 292M, SMPTE 259M, SMPTE 424M
• SDI Color Space and Precision: YUV 4:2:2
• SDI Output Format Support 1080p 60/59.94/50
  1080p 30/29.97/25/24/23.98/23.976
  1080i 60/59.94/50
  720p 60/59.94/50
  625i 50
  525i 59.94
• HDMI Input Format Support 1080p 60/59.94/50
  1080p 30/29.97/25/24/23.98
  1080i 60/59.94/50
  720p 60/59.94/50/30/29.97/25
  576i 50, 480i 59.94
• HDMI Color Space and Precision: RGB 4:4:4, YUV 4:2:2, YUV 4:4
• HDMI Output Format Support 1080p 60/59.94/50
  1080p 30/29.97/25/24/23.98
  1080i 60/59.94/50
  720p 60/59.94/50/30/29.97/25
  576i 50, 480i 59.94

SIZE

• Dimension (LWD): 125.5×104×24.5mm
• Weight: 485g

POWER(USB)

• Power Connector: DC 12V
• Current: 550mA
• Voltage Range: 6~28V
• Power Consumption 6.6W

ENVIRONMENT

• Operating Temperature: -20℃~ 60℃
• Storage Temperature: -30℃~ 70℃
• Relative Humidity: 0%-90% non-condensing

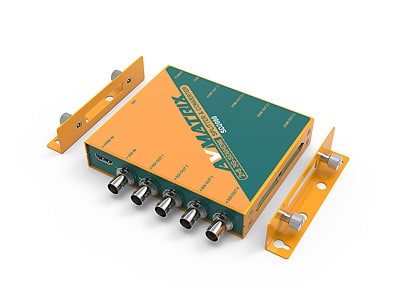

• Accessories: 1×power supply (12V 2A) , 2×Bracket.
