AVMATRIX FE1121-12G SDI Fiber Optic Extender Set

Connections

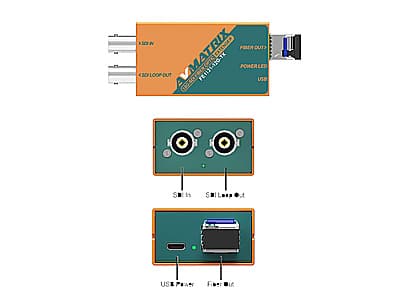

• Transmitter SDI Video Input: 1×SD/HD/3G/12G-SDI/ASI(75Ω BNC)
• Transmitter SDI Loop Output: 1×SD/HD/3G/12G-SDI/ASI(75Ω BNC)
• Transmitter Fiber Optical Output: SFP module with LC connector
• Power LED Indicator: Power and signal status

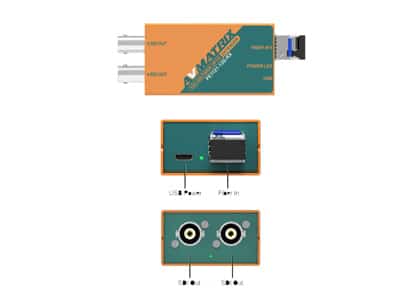

• Receiver Fiber Optical Input: SFP module with LC connector
• Receiver SDI Video Output: 2×SD/HD/3G/12G-SDI/ASI(75Ω BNC)
• Micro USB: Power and software update

Standards

• Optical Fiber Module
  SFP module: Hot-pluggable
  Connector style: LC
  Fiber type: Single-mode
  Optical wavelength: 1310nm
  Max. bandwidth: 12Gbps
  Optical transmit power: -4dBm
  Receiver sensitivity: -12dBm
  Receiver overload: <-2d
• Single-mode Max. Distance: 10 km (6.2 miles) for 12G (4K)
• Optical Fiber Compliance: SMPTE 297M 2006
• SDI Compliance
  SMPTE ST-2081, SMPTE ST-2082, SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M-B, ITU-R BT.656, ITU-R BT.601, SMPTE 274M, SMPTE 425M
• SDI Auto Switching: Automatically detects SD, HD and 3G-SDI
• SDI Video Rate: SD/HD/3G/6G/12G-SDI
• SDI Color Space: YUV, RGB
• SDI Equalization and Re-clocking: Yes, SDI input and output support up to 60m/100m for 12G/3G-S
• SDI Audio: Supports 32/16 channels embed

Power

• Power: Micro USB
• Power Consumption: Transmitter: 1.5W, Receiver: 1.5W
• Voltage Range: DC 3.3-5V

Physical Specifications

• Dimension: 71×41×23mm
• Net Weight: 200g+200g
• Gross Weight: 800g

Environmental Specifications

• Operating Temperature: 0℃~60℃
• Storage Temperature: -20℃~70℃
• Relative Humidity: 0%~90% non-condensing
• Warranty: 3 Year Limited Manufacturer’s Warranty

• FE1121–12G-TX (12G-SDI Fiber Optic Extender Transmitter)
• FE1121-12G-RX (12G-SDI Fiber Optic Extender Receiver)
• 2pcs 5V Special Power Adapters
• 2pcs USB Cables
• 2pcs Mounting Brackets
