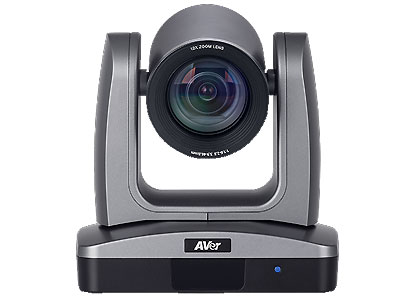

AVer PTZ310 Professional PTZ Camera

Camera:

• Image sensor: 1/2.8″ 1080p 60fps Exmor CMOS
• Effective Picture Elements: Approx. 2.1 megapixels
• Output Resolution: Auto
  1080p@60, [email protected], 1080p@50, 1080i@60, [email protected], 1080i@50, 1080p@30, [email protected], 1080p@25, 720p@60, [email protected], 720p@50
• Minimum Illumination: 0.4 lux (IRE50, F1.6, 30fps)
• S/N Ratio: > 50 dB
• Gain: Auto / Manual
• TV Line: 800 (Center/Wide), 700 (Corner/Wide)
• Shutter Speed: 1/1s – 1/32,000s
• Exposure Control: Auto, Manual, Priority AE (Shutter, IRIS), BLC
• White Balance: Auto / Indoor / Outdoor / One-push / Manual (2500 – 10000)
• Optical Zoom: 12X
• Digital Zoom: 12X
• Horizontal Viewing Angle: 72.5° (Wide) – 6.3° (Tele)
• Focal length: f = 3.9 mm (Wide) – 46.8 mm (Tele)
• Aperture (Iris): F = 1.6 (Wide) – 2.8 (Tele)
• Minimum Working Distance: 0.3 m (Wide), 1.5m (Tele)
• Pan/Tilt Angle: Pan: +- 170° ; Tilt: +90° / -30°
• Pan/Tilt Speed (Manual): Pan: 0.1 – 100° /sec, Tilt: 0.1 – 100° /sec
• Preset Speed: Pan: 200° /sec, Tilt: 200° /sec
• Preset Position: 10 (IR), 255 (RS-232)
• Camera Control – Interface: RS-232 (DIN9) / RS-422 (RJ45)
• Camera Control – Protocol: VISCA (RS-232/RS422/IP), CGI (IP), Pelco-D, Pelco-P
• Image Processing: Noise Reduction (2/3D), Flip, Mirror
• Power Frequency: Auto, 50Hz / 60Hz

Audio:

• Channel: 2ch (Stereo)
• Codec: AAC-LC (48/44.1/32/24K), G.711/PCM
• Sample Rate: 48/44.1/32/24/16/8Khz

Interface:

• Video Output: 3G-SDI, HDMI, IP, USB
• Audio Output: 3G-SDI, HDMI, IP, USB
• Audio Input: MIC / Line in

General:

• Power Requirement: AC100V-AC240V to DC12V/5A
• PoE: POE+ (IEEE 802.3at), Class 4
• Operating Condition: Temperature: 0°C – +40°C ; Humidity: 20%–80%
• Storage Condition: Temperature: -20°C – +60°C ; Humidity: 20%–95%
• Dimensions: L = 180 mm, W= 145 mm, H= 183.5 mm
• Weight: 1.74 kg
• Application: Indoor
• Security: Kensington slot
• Remote Control: Infrared
• Accessories: Remote control, 12V/5A power adapter

IP Streaming:

• Resolution: 1920×1080, 1280×720, 960×540, 640×480
• Network Video Compress Format: H.264 (High Profile), MJPEG
• Maximum Frame Rate: H.264: 60fps (1920×1080), MJPEG: 30fps (1920×1080)
• Bit-rate Control Mode: VBR/CBR (selectable)
• Range of Bit-rate setting: 512Kbps – 32Mbps
• Network Interface: 10/100/1000Base-T
• Multi-stream Capability: 2
• Network Protocol: IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, RTP/RTCP, RTSP, RTMP, ONVIF, VISCA over IP

USB:

• Connector: Micro-USB 2.0
• Video Format: YUV, MJPEG, H.264
• Maximum Video Resolution: Up to 1080p
• USB Video Class: UVC1.1
• USB Audio Class: UAC1.0

Web UI:

• Live Video Preview: Yes
• Camera PTZ Control: Pan / Tilt / Zoom / Focus / Preset Control
• Camera / Image Adjustment: Exposure / White Balance / Picture
• Network Configuration: DHCP, IP Address, Gateway, Subnet Mask, DNS

Software Tools:

• Device IP Searching, Configuration Tool: Windows Application

Warranty:

• Camera:3 Years
• Accessories: 1 Year
