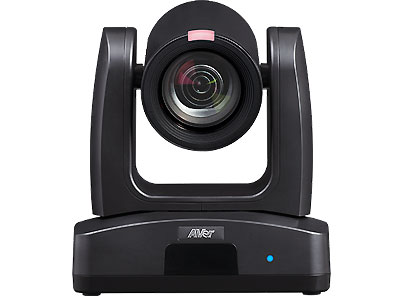

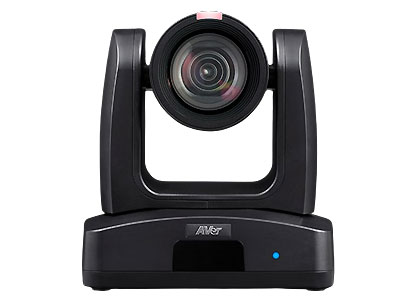

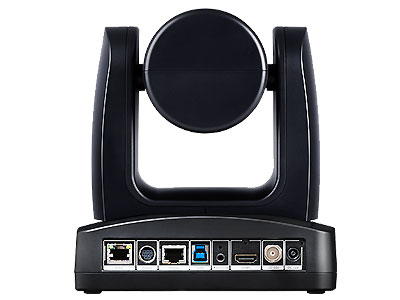

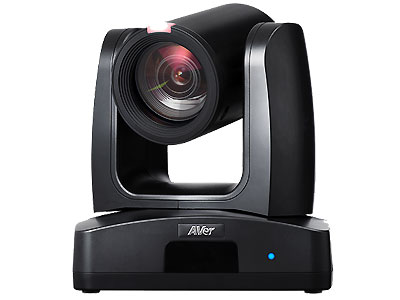

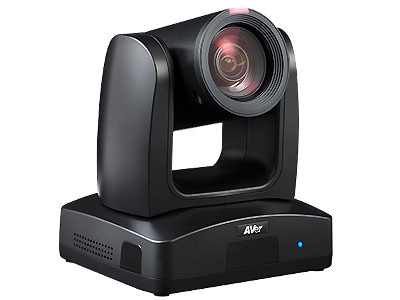

Aver PTC310UV2 AI Auto Tracking PTZ Camera

Camera:

• Image Sensor: 1/2.8” 4K Exmor CMOS
• Effective Picture Elements: 8 Megapixels
• Output Resolutions: 4K/60, 4K/59.94, 4K/50, 4K/30, 4K/29.97, 4K/25, 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50
• Minimum Illumination: 0.5 lux (IRE50, F1.6, 30fps)
• S/N Ratio: ≥ 50 dB
• Gain: Auto, Manual
• TV Lines: 1400 (Center/Wide)
• Shutter Speed: 1/1 to 1/32,000 sec
• Exposure Control: Auto, Manual, Priority AE (Shutter, IRIS), BLC, WDR
• White Balance: Auto, Manual, ATW, One Push
• Optical Zoom: 12X
• Digital Zoom: 12X
• Total Zoom: 144X
• Focal Length: f = 3.9 mm (Wide) to 46.8 mm (Tele)
• Aperture (Iris): F = 1.6 (Wide) to 2.8 (Tele)
• Minimum Working Distance: 0.3 m (Wide), 1.5m (Tele)
• Image Processing: Noise Reduction (2D / 3D), Flip, Mirror
• Power Frequencies: 50 Hz, 60 Hz
• Preset Positions: 10 (IR), 255 (RS-232, RS-422, IP)
• Camera Control: Interfaces: RS-232 (DIN8), RS-422 (RJ45), IP
• Camera Control: Protocols: VISCA (RS-232 / RS-422 / IP), PELCO-D & PELCO-P (RS-232 / RS-422), CGI (IP)

Viewing Angles

• DFOV : 78° (Wide) to 7° (Tele)
• HFOV : 70° (Wide) to 6° (Tele)
• VFOV : 42° (Wide) to 3° (Tele)

Pan / Tilt Angles

• Pan: ±170°
• Tilt : +90° / -30°

Pan / Tilt Speed (Manual)

• Pan : 0.1° to 100° /sec
• Tilt : 0.1° to 100° /sec

Preset Speed

• Pan: 200° / sec
• Tilt: 200° / sec

AI Auto Tracking Functions:

• Tracking Modes: Presenter Mode, Zone Mode, Hybrid Mode

Privacy Protection Mechanism:

Protection Mode: Sleep Mode

Audio:

• Channels: 2ch Stereo
• Codecs: AAC-LC, PCM

Interface:

• Video Outputs: 3G-SDI, HDMI, IP, USB
• Audio Outputs: 3G-SDI, HDMI, IP, USB
• Audio Inputs: MIC in, Line in

General:

• Power Requirement: AC 100 – 240V to DC 12V/5A
• Power Consumption: 19W
• PoE: PoE+
• Dimensions (W x H x D): 180.0 x 192.0 x 145.0 mm
• Net Weight: 2.0 (±0.1) kg
• Application: Indoor
• Tally Lamp: Yes
• Security: Kensington Slot
• Remote Control: Infrared

Operating Conditions:

• Temperature : 0 °C to +40 °C
• Humidity: 20% to 80%

Storage Conditions:

• Temperature : -20 °C to +60 °C
• Humidity: 20% to 95%

IP Streaming:

• Resolution: 4K 30fps
• Network Video Compress Formats: H.264, H.265, MJPEG
• Maximum Frame Rate: 4K 30fps
• Bit-Rate Control Modes: VBR, CBR (selectable)
• Range of Bit-Rate Setting: 512 Kbps to 32 Mbps
• Network Interface: 10 / 100 / 1000 Base-T
• Multi-Stream Capability: 2 (RTSP / Web Page), 4K 30fps (max.)
• Network Protocols: IIPv6, IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, RTP / RTCP, RTSP, RTMP, VISCA over IP
• NDI® |HX Capability: License Upgrade

USB:

• Connector: USB 3.1
• Video Formats: MJPEG, YUY2
• Maximum Video Resolution: 2160p
• USB Video Class (UVC): UVC 1.1
• USB Audio Class (UAC): UAC 1.0

Web UI:

• Live Video Preview: Yes
• Camera PTZ Control: Pan, Tilt, Zoom, Focus, Preset Control
• Camera / Image Adjustment: Exposure, White Balance, Picture
• Network Configuration: DHCP, IP Address, Gateway, Subnet Mask, DNS

Software Tools:

• IP Search and Configuration Tool: Support Windows® 7 or later
• PTZ Management: Support Windows® 7 or later
• PTZ Control Panel: Supports iOS & iPadOS® 11 or later
• PTZ Link: Support Windows® 7 or later, macOS® 10.14 or later
• OBS Plugin for PTZ Cameras: Support Windows® 8 or later, macOS® High Sierra v10.13 or later
• CaptureShare: Support Windows® 7 or later, macOS® 10.14 or later

Warranty:

• Camera: 5 Years
• Accessories: 1 Year

Optional Accessories:

• AVer CL01 PTZ Camera Controller
• L-Type Wall Mount

• Camera
• Drilling Paper
• Ceiling Mount Bracket (x2) Quick Start Guide
• Cable Fixing Plate
• M2 x 4 mm Screw (x3)
• Power Adapter & Power Cord
• 1/4′-20 L=6.5 mm Screw (x2)
• Remote Control
• M3 x 6 mm Screw (x3)
• DIN 8 to D-Sub 9 Cable
• RS-232 In/Out Y Cable
• Cable Ties (x4)
