Audio-Technica U853PMU UniLine Condenser Hanging Microphone, Black
SGD 364.42 excl. Tax
Weight | 3 kg |
---|
This product has been discontinued.

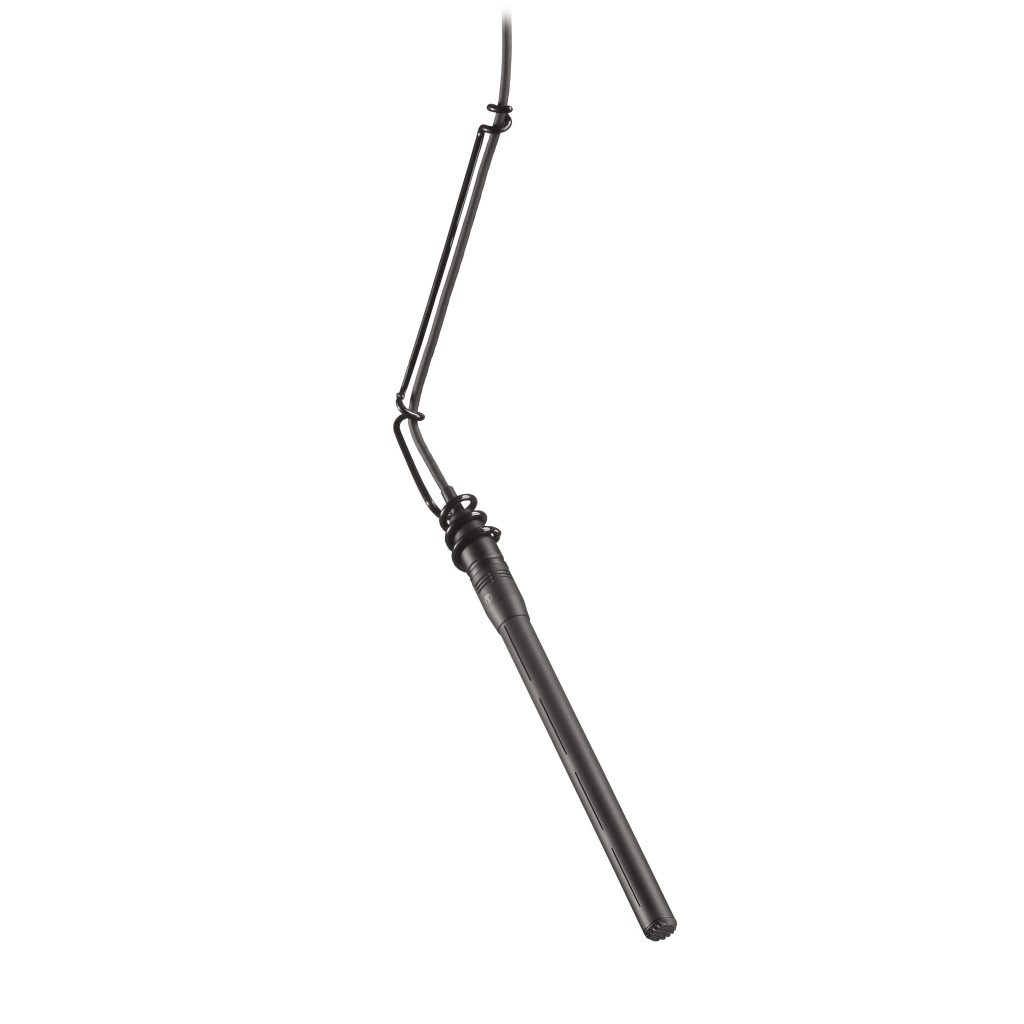

Audio-Technica U853PMU UniLine Cardioid Condenser Hanging Microphone, Black
Featuring Audio-Technica’s UniLine line-cardioid element, the Audio-Technica U853PMU condenser hanging microphone comes equipped with a wall/ceiling plate power module for permanent installation in a standard, single-gang electrical box. The phantom-powered microphone also offers UniGuard. innovations that deliver unsurpassed immunity from radio frequency interference.
It accepts interchangeable elements, available in cardioid, hypercardioid, omnidirectional, and UniLine. line cardioid polar patterns. Is 80 Hz low-cut UniSteep filter reduces pickup of low-frequency ambient noise.
Features for U853PMU
- Designed for suspension over choirs, instrumental groups, and theater stages
- Wall/ceiling plate power module permits permanent installation in standard metal U.S. single gang electrical box
- UniLine the polar pattern provides a narrow 90-degree acceptance angle
- Superior off-axis rejection for maximum gain before feedback
- UniGuard RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
- UniSteep filter provides a steep low-frequency attenuation to improve sound pickup without affecting voice quality
- Accepts interchangeable elements to permit angle of acceptance from 90 degree to 360 degree .
- Low-profile design with low-reflectance finish for minimum visibility
- Available in two colors: black (U853PMU) and white (U853PMWU)
Element
|
Fixed-charge back plate, Permanently polarized condenser
|
---|---|
Polar Pattern
|
Line Cardioid
|
Frequency Response
|
30 – 20,000 Hz
|
Open Circuit Sensitivity
|
-35dB (17.7 mV) re 1V at 1 Pa
|
Impedance
|
200 ohms
|
Maximum Input Sound Level
|
124 dB SPL, 1 kHz at 1% T.H.D.
|
Low Frequency Roll Off
|
80 Hz, 18 db/octave
|
Switches
|
Flat, roll-off
0 dB/ 10 dB gain setting |
Dynamic Range
|
102 dB, 1 kHz at Max SPL
|
Signal-to-Noise Ratio
|
72 dB, 1 kHz at 1 Pa
|
Phantom Power Requirements
|
11-52V DC, 4 mA typical
|
Weight
|
Microphone: 30 g
Power module: 97 g |
Dimensions
|
Microphone: 6.14″ (156.0 mm) long, 0.48″ (12.2 mm) diameter
Power module: 2.80″ (71.0 mm) W x 4.55″ (115.5 mm) H x 1.42″ (36.0 mm) D |
Output Connector (Power module)
|
Screw Terminals
|
Cable
|
25.0′ (7.6 m) long (permanently attached to microphone), 0.13″ (3.2 mm) diameter, 2 conductor shielded cable with TA3F-type connector
|
Accessories Included
|
AT8154 two-stage foam windscreen; AT8451 steel hanger; AT8534 wall/ceiling plate power module; AT8438 5/8″-27 stand adapter
|
