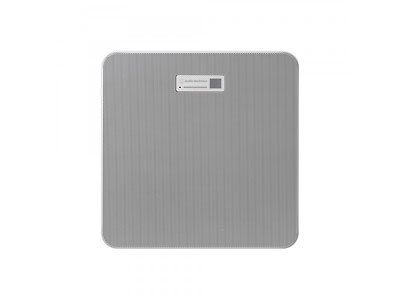

Audio-Technica ATND1061 LK Beamforming Ceiling Array Microphone

General:

• Power requirement: +48 VDC (Audio-Technica LINK)
• Power consumption: Max. 5.2 W
• Operation temperature range: 0°C to 40°C (32°F to 104°F)
• Operation humidity range: 25% to 85% (non-condensing)
• Dimensions: 227.5 mm (9.0”) × 227.5 mm (9.0”) × 30 mm (1.2″) (W × D×H)
• Weight: 1243 g (44 oz)
• Plenum rating: UL 2043

Microphone:

• Beam width: 90°
• Polar pattern: Beam pattern
• Frequency response: 60 Hz to 18,000 Hz
• Sensitivity: -8 dBFS (1 kHz, 94 dBSPL)
• Dynamic range: 89 dB (A-weighted)
• Signal-to-noise ratio: 61.5 dB (A-weighted)
• Self-noise: 25 dBSPL (A-weighted)
• Maximum input sound level: 102 dBSPL

Analog audio:

• Frequency response: 20 Hz to 20 kHz (+1.0/-2.0 dB)
• Dynamic range: 100 dB (A-weighted)
• Signal-to-noise ratio: 80 dB (A-weighted)
• Headroom: 20 dB
• Residual noise: -75.8 dBu (A-weighted)
• T.H.D: <0.1% (1 kHz, unity)
• Analog input: MIC Maximum: -30 dBu
  MIC Unity: -50 dBu
  LINE Maximum: +12.2 dBu
  LINE Unity: -10 dBV, Switchable
• Analog output: OUTPUT Maximum: +19.2 dBu
  OUTPUT Unity: +4 dBu/-10 dBV/-33 dBV, Switchable

Other:

• Network: Audio-Technica Link: 100 Mbps
  IP control: 100 Mbps
• Digital audio: Sampling rate: 48 kHz
  Bit depth: 24-bit
• Latency: Microphone (CH1 to CH6): 47 msec
  Microphone (Auto Mix CH): 79 msec
• I/O connector: Network/ Audio-Technica Link: RJ-45
  Analog input: Euroblock 3-pin
  Analog output: Euroblock 3-pin
  GPI: Euroblock 3-pin
• Phantom power: Analog input: 12 V

Included accessories:

• IR remote controller
• Surface mount adapter
• Screw (M4 × 50 mm) × 4
• Flush mount adapter
• Flush mount cover
• Screw (M4 × 10 mm) × 12
• Hole cover
• Nut × 4
• Snap bushing × 2
• Tile bridge A × 2
• Tile bridge B × 2 ・Tile bridge C × 4
• Seismic cable
• Zip tie
• Safety belt
• Euroblock connector × 3
• Installation template
