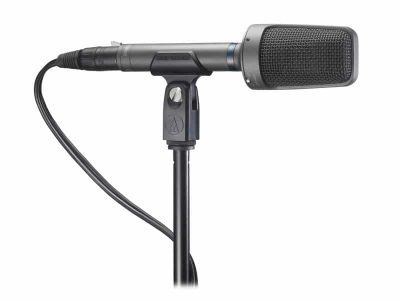

Audio-Technica AT8022 camera-mount X/Y Stereo Microphone
SGD 548.00 excl. Tax
- Innovative capsule configuration produces accurate stereo image
- Compact, lightweight design is perfect for video camera-mount use
- Ideal for use with handheld digital recording devices
- Operates on battery or phantom power
- Switchable low-frequency roll-off
- Includes two cables: one balanced and one unbalanced
Weight | 4 kg |
---|
Audio-Technica AT8022 X/Y Stereo Microphone Compact and lightweight design
Ideal for video camera-mount use, stereo field recording, interviews, and home recording, Audio-Technica’s versatile AT8022 stereo condenser offers compact housing and the pristine sound quality of a live sound field. Its coincident capsule configuration produces an X/Y stereo image in a small housing.
The microphone is supplied with two cables for use with either pro or consumer gear. It offers switchable low-frequency roll-off and the convenience of battery or phantom power. The Audio-Technica AT8022 microphone is fully RoHS-compliant free from all substances specified in the EU directive on the reduction of hazardous substances (RoHS).
Features for AT8022
- Innovative coincident capsule configuration produces accurate stereo image in smaller housing
- Compact, lightweight design is ideal for video camera-mount use as well as for stereo field recording
- Ideal for use with handheld digital recording devices
- Operates on battery or phantom power for use with pro or consumer equipment
- Switchable low-frequency roll-off
- Includes two cables: one balanced (two 3-pin XLRM-type connectors at output); one unbalanced
Element
|
Fixed-charge back plate, permanently polarized condenser
|
---|---|
Polar Pattern
|
X/Y Stereo
|
Frequency Response
|
20 – 15,000 Hz
|
Low Frequency Roll-off
|
80 Hz, 12 dB/octace
|
Open Circuit Sensitivity
|
Phantom: –38 dB (12.5 mV) re 1V at 1 Pa
Battery: –38 dB (12.5 mV) re 1V at 1 Pa |
Channel Balance
|
< 2.5 dB
|
Impedance
|
Phantom: 250 ohms
Battery: 300 ohms |
Maximum Input Sound Level
|
Phantom: 250 ohms Battery: 300 ohms
|
Dynamic Range
|
Phantom: 109 dB , 1 kHz at Max SPL
Battery: 101 dB, 1 kHz at Max SPL |
Signal-to-Noise Ratio
|
75 dB, 1 kHz at 1 Pa;
|
Phantom Power Requirements
|
11-52V DC, 2 mA typical (each channel)
|
Battery Type
|
1.5V AA/UM3
|
Battery Life
|
0.7 mA / 700 hours typical (alkaline)
|
Switch
|
Battery On/Off; Flat, roll-off;
|
Weight
|
247 g
|
Dimensions
|
186.0 mm (7.32″) long, 47.6 mm (1.87″) maximum head diameter, 21.0 mm (0.83″) body diameter
|
Output Connector
|
Integral 5-pin XLRM-type
|
Cable
|
Balanced: 2.0 m (6.5′) long, 8 conductor, shielded, vinyl-jacketed stereo cable with 5-pin XLRF-type connector at microphone end and two 3-pin XLRM-type connectors at output end; Unbalanced: 0.6 m (2.0′) long stereo cable with 5-pin XLRF-type connector at microphone end and 3.5 mm TRS connector at output end
|
Accessories
|
AT8405a stand clamp for 5/8″-27 threaded stands; windscreen; battery; soft protective pouch
|
