AJA IPR-10G-HDMI IP to HDMI Monitoring of HD SMPTE ST 2110 signals via HDMI

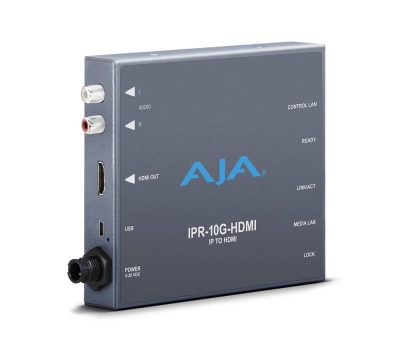

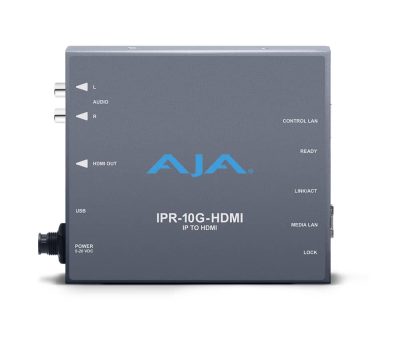

AJA IPR-10G-HDMI IP to HDMI provides monitoring of HD SMPTE ST 2110 signals via HDMI. It receives SMPTE ST 2110 over 10GigE connectivity, formats the data for output on a full-size HDMI interface, and the associated audio from the video stream is extracted, synchronized, and embedded into the HDMI interface and also output on an analog RCA interface.

Monitor ST 2110 Video and Audio from anywhere on the Network

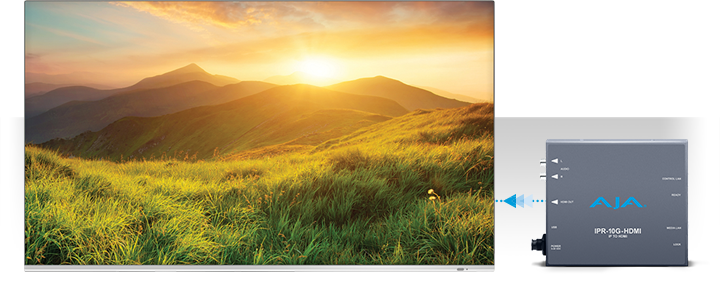

The IPR-10G-HDMI is an SMPTE ST 2110 to HDMI Mini-Converter suited for point-of-use applications including source monitoring. The AJA IPR-10G-HDMI receives SMPTE ST 2110 IP video and audio, then formats the data for output on a full-size HDMI 1.4b interface.

The audio associated with the video stream is extracted, synchronized, and then embedded into the HDMI interface as well as output on an analog RCA interface.

With 3G/1.5G-SDI routers often at capacity while facilities await their transition to IP, there is a huge benefit in being able to send video sources from a feed, camera, router, or edit bay via IP and provide HDMI monitoring at the destination.

Workflow

IPR-10G-HDMI provides HDMI output from SMPTE ST 2110 video and audio over IP-compatible devices. Combine your IPR-10G-HDMI units with AJA KONA IP (I/O card for use in desktop workstations) to instantly create a real-world ST 2110 workflow for video over IP production and monitoring.

User Control

IPR-10G-HDMI provides two key methods for control. The Control LAN Ethernet port enables control of the Mini-Converter from web browsers on any platform and REST clients. The mini-USB connector facilitates quick and simple initial network configuration and firmware updates.

1x RJ-45 (IEC 60603-7) for 10/100/1000 Base-T Ethernet (IEEE 802.3-2012)
HTTP/1.1 (RFCs 7230, 7231, 7232, 7233, 7234, 7235)
Web and REST clients supported
1x USB 2.0 Mini-B (IEC 62680-1) connector
AJA eMini-Setup of network parameters

Universal Power Supply

All AJA Mini-Converters ship with a universal power supply that includes international plug connections for use around the world.

Compact and Portable

AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack or directly on a camera rig. A locking power connector can’t accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.

AJA Quality – Guaranteed

All AJA Mini-Converters are covered by a five-year warranty and AJA’s advanced replacement policy. If a replacement is necessary, AJA will ship a new unit immediately without the need to send the original unit back first, ensuring you are up and running again as quickly as possible.

Related Products:

Specifications

Click to rate this post!

[Total: 1 Average: 5]

Video Format	(HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (HD) 1920x1080i 50, 59.94 (HD) 1280x720p 50, 59.94, 60 (SD) 625i 50 (SD) 525i 59.94
Media Transport Interfaces	SMPTE 2110 1 x SFP+ Cages – SFPs not included Recommended 10 GigE SFP+ modules: Finisar FTLX1471D3BCL (for single mode 1310nm) Arista Networks SFP-10G-SR Compatible 10GBASE-SR Generic 850nm 300m DOM Transceiver (for multi-mode 850nm)
Video Input IP	SMPTE 2110 Single channel input
Video Output Digital	1x HDMI Standard Type A connector HDMI v1.4b 24/30-bits per pixel, RGB/YUV
Audio Output Digital	Up to 8-Channel embedded audio, 24-bit per channel, 48 kHz synchronous
Audio Output Analog	2x RCA analog audio Levels at -10 dBu (nominal)
User Controls	1 x RJ-45 (IEC 60603-7) for 10/100/1000 Base-T Ethernet (IEEE 802.3-2012) HTTP/1.1 (RFCs 7230, 7231, 7232, 7233, 7234, 7235) Web and REST clients supported 1 x USB 2.0 Mini-B (IEC 62680-1) connector AJA eMini-Setup of network parameters
Size (w x d x h)	5.53″ x 4.48″ x 0.954″ (140.46 x 113.79 x 24.23 mm)
Weight	0.6 lb (0.3 kg)
Power	5-20VDC Regulated, 13 Watts (estimated), Power supply required (included with purchase)
Environment	Safe Operating Temperature: 0 to 40 C (32 to 104 F) Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F) Operating Relative Humidity: 10-90% noncondensing Operating Altitude: <3,000 meters (<10,000 feet)

In The Box

Click to rate this post!

[Total: 1 Average: 5]

IP Mini-Converter v2.3

Free Firmware Update for AJA 10 GigE IP Mini-Converter Transmitters/Receivers

New v2.3 firmware is now available for AJA’s 10 GigE IP Mini-Converter transmitters and receivers. Available as a free download, the update adds a new frame sync feature to support synchronizing unlocked sources with PTP for IPT-10G2 transmitters; new USB keyboard control for quick and easy preset recalls for IPR-10G2 and IPR-10G receivers, and support for NMOS 1.3 and LLDP for the full product lineup.
