AJA 3G-AMA 3G-SDI 4-Channel analog audio Embedder/Disembedder, bal. XLR
AJA 3G-AMA is a 4-channel analog audio embedder/disembedder with support for 3G-SDI input and output up to 1080p 60. Audio disembedding is always functional, providing four analog outputs. Audio embedding is user selectable, on a channel pair basis, to either pass 3G-SDI input audio or to embed input analog audio from the breakout cable. Analog audio levels are selectable. The 3G-AMA automatically detects and configures to the input video standard.
Features
- 3G-SDI embedder/disembedder
- 4-channel balanced analog audio I/O
- Supplied XLR breakout cable
- USB connectivity via AJA Mini-Config software
- Dipswitch configuration
- +5-20VDC Power
Supplied Breakout Cable
Additional connections on included breakout cable.
USB and Mini-Config Support

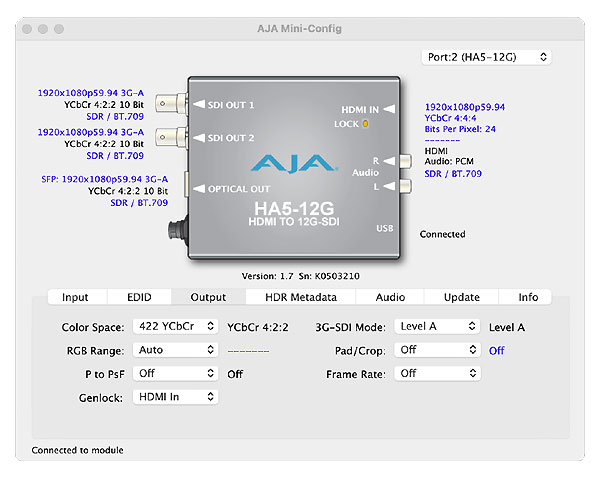

AJA’s free Mini-Config software can be used with any USB-enabled AJA Mini-Converter and provides an easy-to-use graphical interface with detailed information about the current input and output formats. Control all the parameters of any supported AJA Mini-Converter as well as loading firmware updates from AJA that add new features and functionality.
Universal Power Supply
All AJA Mini-Converters ship with a universal power supply that includes international plug connections for use around the world.
Compact and Portable
AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack, or directly on a camera rig. A locking power connector can’t accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.
AJA Mini-Matrix
Information on the complete line of AJA Mini-Converters is now available as a mobile app on iOS. The Mini-Converter product line is extensive and this app helps you find the right converter for any situation, wherever you are.
Mini-Converter products are covered by a generous five-year warranty.
Specifications
Click to rate this post!
[Total: 0 Average: 0]
| Video Formats | (2K) 2048x1080p (2K) 2048x1080PsF (HD) 1920x1080p (HD) 1920x1080PsF (HD) 1920x1080i (HD) 1280x720p (SD) 720x576i (SD) 720x480i |
| Video Input Formats | 1x 3 Gb SDI (level A or B) (2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (2K) 2048x1080PsF 23.98, 24, 25, 29.97, 30 (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30 (HD) 1920x1080i 50, 59.94, 60 (HD) 1280x720p 50, 59.94, 60 1x 1.5 Gb SDI (2K) 2048x1080p 23.98, 24, 25, 29.97, 30 (2K) 2048x1080PsF 23.98, 24, 25, 29.97, 30 (HD) 1920x1080p 23.98, 24, 25, 29.97, 30 (HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30 (HD) 1920x1080i 50, 59.94, 60 (HD) 1280x720p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 1x 270 Mb SDI (SD) 625i 50 (SD) 525i 59.94 |
| Video Output Formats | Video Out is a delayed, reclocked version of Video In, at same frame rate, etc. Video Out is undefined when no input Video Latency, time measured between video input and video output connector: 3G level A = 3.2 usec 3G level B = 6.1 usec HD (1.5 Gb) = 6.3 usec SD (270 Mb) = 17.2 usec |
| Video Input Digital | 1x 3G-SDI BNC, SMPTE-259/292/372/424 |
| Video Output Digital | 1x 3G-SDI BNC, SMPTE-259/292/372/424 |
| Audio Inputs and Outputs | Balanced Analog Audio, 1x 25 pin D female connector on converter, 4-channels in, 4-channels out Breakout cable provided with 1x 25 pin D male connector: 4x XLR female input breakout connectors 4x XLR male output breakout connectors |
| Digital Audio Converters | 24-bit |
| Embedded Audio | SMPTE 272M (SD): 20-bit, 48 kHz synchronous SMPTE 299M (3G/HD): 24-bit, 48 kHz synchronous Incoming embedded audio can be passed, removed, or overridden Up to 16-channels supported Note: 2048x1080p/PsF 29.97 and 30 formats support a maximum of 8-channels embedded audio |
| Path Latency | Embed Path 1100 µsec Disembed Path 1200 µsec |
| Analog Audio Levels | Configured via Mini-Config software: Pro 1: 0 dBfs = +24 dBu Pro 2: 0 dBfs = +18 dBu Pro 3: 0 dBfs = +15 dBu Consumer 1: 0 dBfs = +12 dBu |
| Embedded Audio | SMPTE 272M (SD): 20-bit, 48 kHz synchronous SMPTE 299M (12G/6G/3G/1.5G): 24-bit, 48 kHz synchronous Incoming embedded audio can be passed, removed, or overridden Up to 16 channels supported Note: 2048x1080p/PsF 29.97 and 30 formats support a maximum of 8-channels embedded audio. |
| Embed Path Audio Latency | Embed Path 1100 µsec Disembed Path 1200 µsec |
| Disembed Path Audio Latency | (Time measured between video input and audio output connector): 210 µsec |
| Analog Audio Levels | Configured via Mini-Config software: Pro 1: 0 dBfs = +24 dBu Pro 2: 0 dBfs = +18 dBu Pro 3: 0 dBfs = +15 dBu Consumer 1: 0 dBfs = +12 dBu |
| User Interface | External DIP switch USB port used with Mini-Config software application to configure device via PC/Mac |
| Size (w x d x h) | 5.8″ x 3.1″ x 1.0″ (147.32 x 78.74 x 25.4 mm) |
| Power | +5-20VDC, 5 watts power supply required, included with purchase |
| Environment | Safe Operating Temperature: 0 to 40 C (32 to 104 F) Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F) Operating Relative Humidity: 10-90% noncondensing Operating Altitude: <3,000 meters (<10,000 feet) |
