AJA 3G-AM 8-Channel AES Embedder/Disembedder with (XLR/BNC) Breakout Cable
AJA 3G-AM is an 8-channel AES audio embedder/disembedder with support for 3G-SDI input and output up to 1080p 60. Audio disembedding is always functional, providing 4 AES outputs. Audio embedding is user selectable, on a channel pair basis, to either pass 3G-SDI input audio or to embed input AES audio from the breakout cable.
AES inputs are sample rate converted to a 48 KHz rate synchronous to the video input. The AJA 3G-AM automatically detects and configures to the input video standard.
Choice of Supplied Breakout Cable
3GAM with either a XLR or BNC breakout cable. Specify 3G-AM-XLR for XLR connectivity or 3G-AM-BNC if you prefer BNC connectors for AES audio needs.
USB and Mini-Config Support
AJA’s free Mini-Config software can be used with any USB enabled AJA Mini-Converter and provides an easy to use graphical interface with detailed information about the current input and output formats. Control all the parameters of any supported AJA Mini-Converter as well as loading firmware updates from AJA that add new features and functionality.

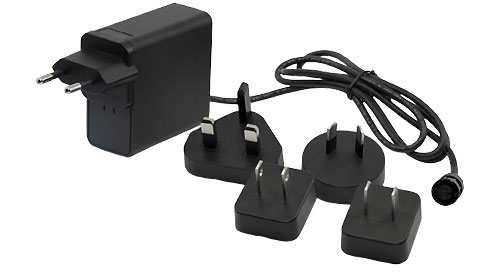

Universal Power Supply
All AJA Mini-Converters ship with a universal power supply that includes international plug connections for use around the world.
Compact and Portable
AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack, or directly on a camera rig. A locking power connector can’t accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.
AJA Mini-Matrix
Information on the complete line of AJA Mini-Converters is now available as a mobile app on iOS. The Mini-Converter product line is extensive and this app helps you find the right converter for any situation, wherever you are.
Features
Click to rate this post!
[Total: 0 Average: 0]
- 3G-SDI embedder/disembedder
- 8-channel AES I/O
- Supplied breakout cables for balanced AES – XLR connectors
- USB connectivity via AJA Mini-Config software
- Dipswitch configuration
- +5-20VDC Power
Specifications
Click to rate this post!
[Total: 0 Average: 0]
| Video Input Formats |
|
| Video Input Digital | 1x 3G-SDI BNC, SMPTE-259/292/424 |
| Video Output Digital | 1x 3G-SDI BNC, SMPTE-259/292/424 |
| Audio Inputs and Outputs |
|
| Audio Data Formats |
|
| Digital Audio Converters | 24-bit |
| Embedded Audio |
|
| Embed Path Audio Latency | (time measured between audio input and video output connector):
|
| Disembed Path Audio Latency | (time measured between video input and audio output connector):
|
| User Controls |
|
| Size (w x d x h) | 5.8″ x 3.1″ x 1.0″ (147.32 x 78.74 x 25.4 mm) |
| Power | +5-20VDC, 5 watts power supply required, included with purchase |
| Environment |
|
